ASTM D5264 Sutherland Ink Rub Tester Ink Friction Decoloring Test Machine Ink Rub Resistance Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Ink Printing Bleaching And Abrasion Testing Machine	Operation Mode:	LED Display
Test Piece Area Size:	60x220mm	Honing And Rubbing Load:	20N±0.2N
Rub Stroke:	60mm	Rubbing Area:	50x156mm
High Light:	ASTM D5264 Ink Rub Tester , Sutherland Ink Rub Tester , Ink Friction Decoloring Test Machine

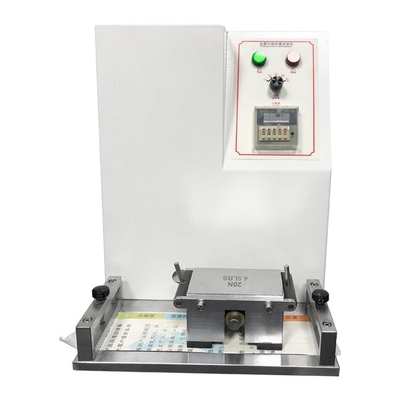

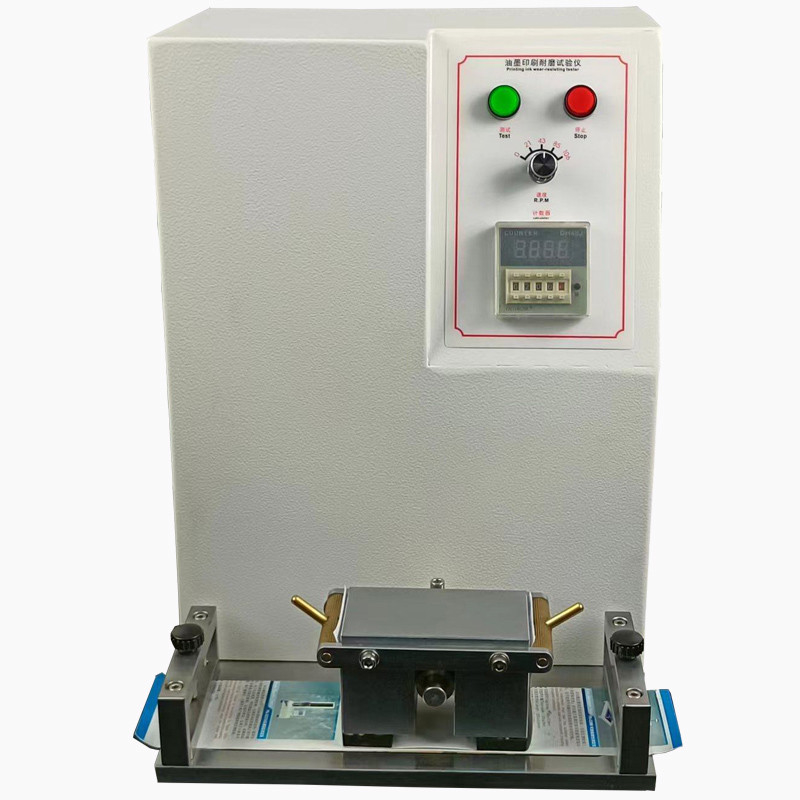

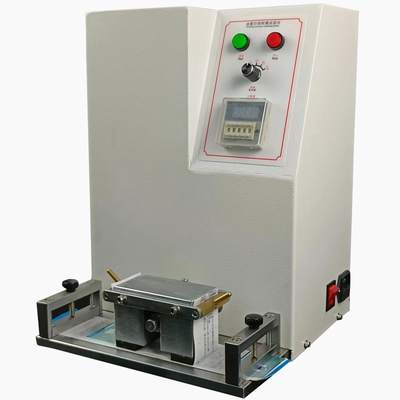

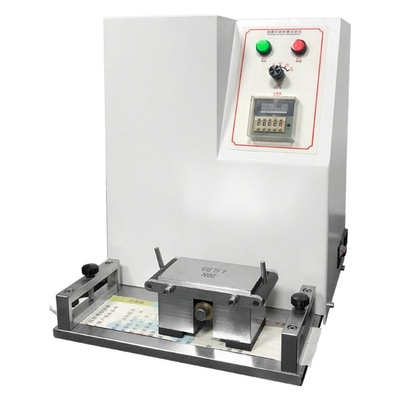

ASTM D5264 Ink Printing Bleaching and Abrasion Testing Machine

Name: ASTM D5264 Sutherland Ink Rub Tester Ink Friction Decoloring Test Machine Ink Rub Resistance Tester
Brand: SKYLINE
SKU: SKYLINE
Rating: 4.7 (150 reviews)

Application

The ink abrasion tester is suitable for the test test of the wear resistance of the ink layer of the printed matter, the abrasion resistance of the photosensitive layer of the PS plate and the abrasion resistance of the surface coating of the related products. Effectively analyze the problems of poor rub resistance of the printed matter, falling off of the ink layer, low printing durability of the PS plate, and poor coating hardness of other products.

Test Principle

Paper and cardboard specimens to be abraded layer and friction paper in the standard friction load weights under the action of the specified speed in the standard stroke of the reciprocating movement, in order to test the abrasion resistance of printed materials.

Standard basis

GB/T7706, ASTMD 5264, TAPPI-UM486, JIS 5071-1.

Technical parameters

Operation mode	LED display
Test piece area size	60x220mm
Rubbing speed	four speed adjustable (21/43/85/106) r/min
Honing and rubbing load	20N±0.2N
Rub stroke	60mm
Number setting	0-999999 Automatic shutdown
Rubbing area	50x156mm
Machine power	40W
Machine size	263x230x350mm WxDxH
Machine weight	18kg
Operating voltage	AC 220V 50/60HZ 1A

ASTM D5264 Sutherland Ink Rub Tester Ink Friction Decoloring Test Machine Ink Rub Resistance Tester 0
