Adhesive Tape Lab Test Equipment Tape Retention Adhesion Tester Adhesive Tape Holding Force Test Machine

Brand Name:	SKYLINE
Model Number:	SL-TP01
MOQ:	1 unit
Price:	negoitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Calibration certificate

Number Of Measurement Groups:

5 Group

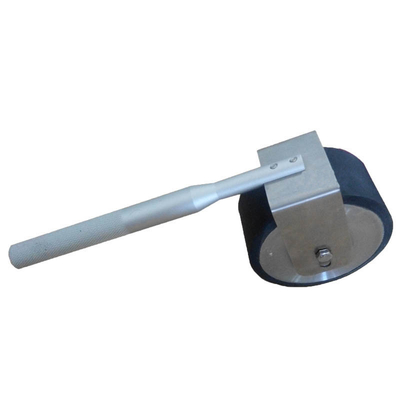

Standard Pressure Roller:

2000g±50g

Weights:

1000g±10g

Test Plate:

70mm*50mm*1.5mm

Automatic Timer:

99H99M99S

Machine Material:

Lacquer

Volume(W*D*H):

500*200*560mm

Weight(W*D*H):

20kg

Packaging Details:

Plywood case

Supply Ability:

1 unit

Highlight:

Tape Retention Force Test Machine

Lab Equipment Force Test Machine

Adhesion Tester Force Test Machine

Product Description

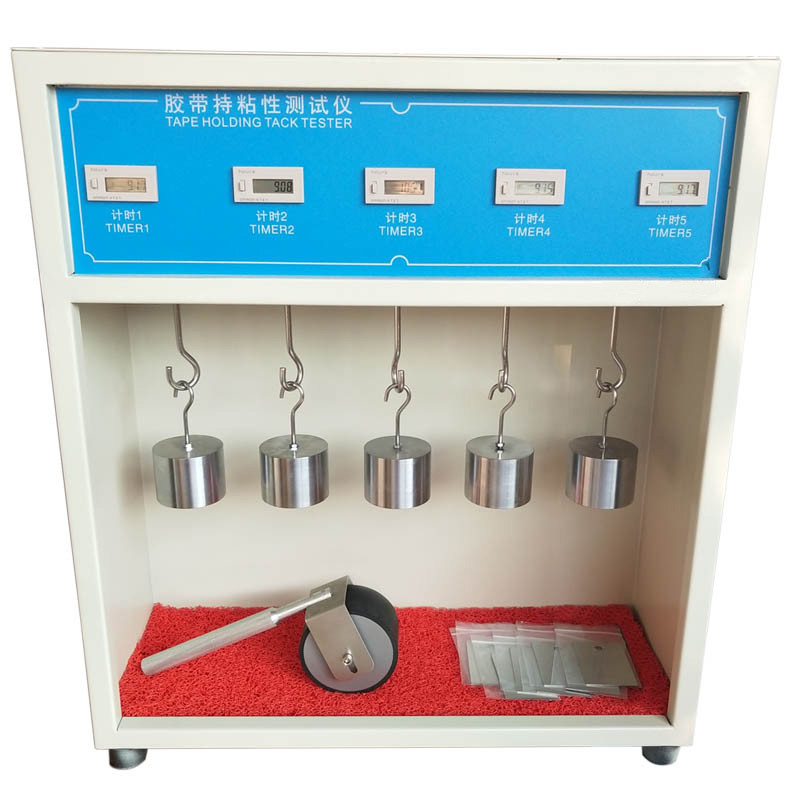

Adhesive Tape Holding Force Test Machine to do static load test for the adhesion of the tape

Product introduction

Adhesive Tape - Holding Force Test Machine made a static load test, load and temperature at a certain

timing belt can automatically maintain the time, such as falling halfway, then record the time, to confirm the tape adhesive limitation, trial hold time of its stalemate.

Test Principle

The adhesive specimen attached to the test plate hanging vertically in the test frame, the lower end of the suspension of the weight of the specified weights, with a certain period of time after the specimen sticking off the amount of displacement, or the specimen completely out of the time to characterise the adhesive specimen to resist the ability to pull off.

Product technical parameter

Number of measurement groups	5groups
Standard pressure roller	2000g±50g
Weights	1000g±10g
Test plate	70mm50mm1.5mm
Automatic timer	99H99M99S
Machine material	lacquer
Volume(WDH)	500200560mm
Weight(WDH)	20kg
