| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-P40 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| Test Station: | 2 Samples | Test Speed: | 10- 60 Times/min, Manually Adjustable |
|---|---|---|---|
| Test The Thickness: | 10~50mm Can Be | Fixture: | Hold Both Sides Of The Lower Cover |
| Height Adjustment: | Manual Direct Adjustment | Machine Size: | 600×450×520mm |
| Weight: | 55Kg | ||
| High Light: | Key Fatigue Tester Life Testing Machine,Pneumatic Button Life Testing Machine,Switches Keyboards Life Testing Machine |
||

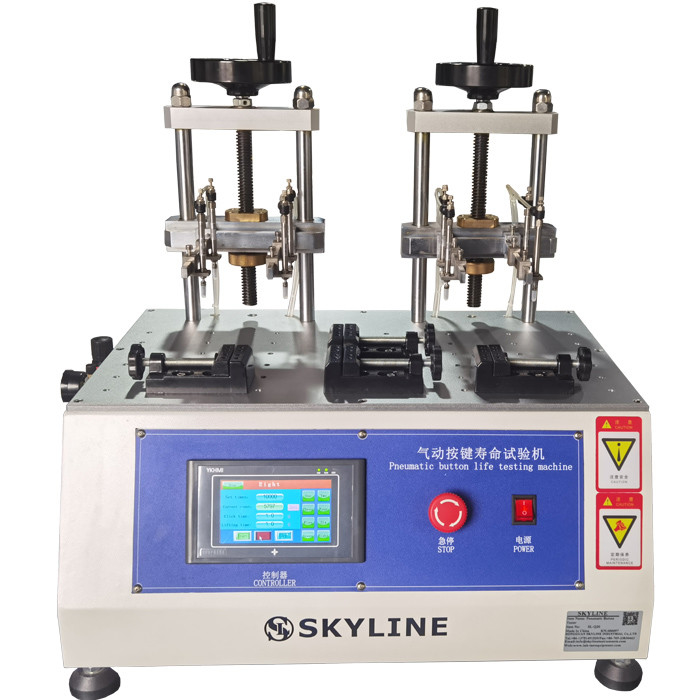

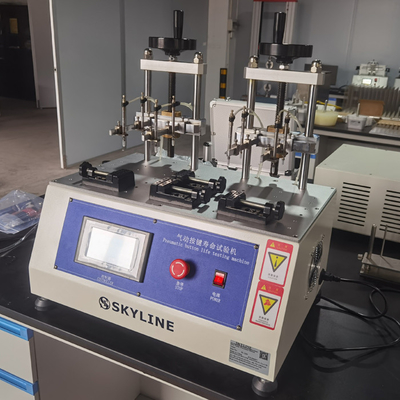

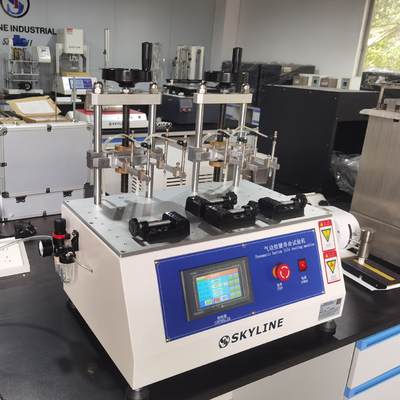

Touch Screen Pneumatic Button life Tester Switch Mobile Phone Button Fatigue Tester Pneumatic key life testing machine for mobile phones, remote controls, calculators, walkie-talkies, telephone and other electronic consumer products key fatigue test. Pneumatic key life testing machine is the driving cylinder in a certain press load, times, speed on a single product in accordance with 1-2-3-4-5-6 order to simulate the actual service life of the product test.
1. The pneumatic button life tester is a special device for performing button fatigue test.
2. The structure is reasonable and unique, the volume is small, the small cylinder is used to hit, and the pressing position and the striking speed can be adjusted, which is suitable for various types of button tests.
3. The sensor is used to directly detect the key life count.
4. Touch screen control, can be cycled test, or can be tested at the same time.
5. The equipment is stable, low noise and maintenance free.
|
Test station |
Can test two samples at the same time, each can do six buttons |
|
Control method |

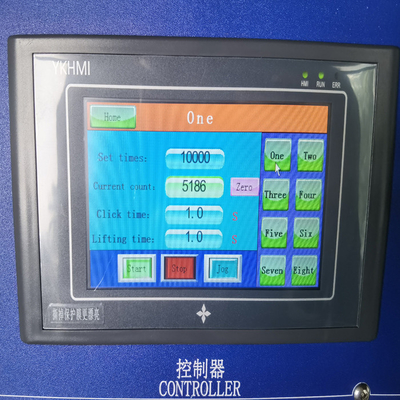

Touch screen setting input direct action, the action is simple and convenient |
|
Action mode |

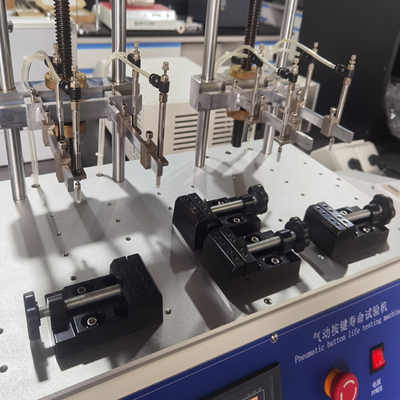

The cylinder drives the probe to reciprocate up and down |
|
Test method |
The buttons can be set to act at the same time, or the six buttons can be set to act in sequence, and several stations can be arbitrarily set to pause actions as needed |
|
Test speed |
10~60 times/min, manually adjustable |
|
Test mobile phone thickness |
10 ~ 50mm can |
|
Clamping fixture |
Clamp both sides of the lower cover |
|
Height adjustment |
Manual direct adjustment |
|
Machine size |
600×450×520mm |
|
Power supply |
220V |
|
Weight |
About 55kg |
