Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Model Number: | SL-PI08 |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packaging |
Delivery Time: | 7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200sets/month |
Cylinder Diameter: | 9.5504 ± 0.0076 Mm | Cylinder Length: | 162 Mm |
---|---|---|---|
Mouth Diameter: | 2.0955 ± 0.0051 Mm | Mouth Die Length: | 8.000 ± 0.025 Mm |
Piston Head Diameter: | 9.4742±0.0076 Mm | Piston Head Length: | 6.35± 0.13 Mm |
Standard Test Load: | Total 8 Levels | TempeTemperature Rangerature Range: | Room Temperature -450℃(cast Copper Heating Ring) |
Constant Temperature Accuracy: | ±0.5℃ | Display Resolution: | 0.1℃ |
Cutting Mode: | Manual Or Automatic Cutting | Micro Printer: | Automatic Printout |
Power Supply Voltage: | AC220V±10% 50HZ | ||
Highlight: | Plastic MFR Tester,Polymer MFR Tester,ASTM D1238 MFR Tester |

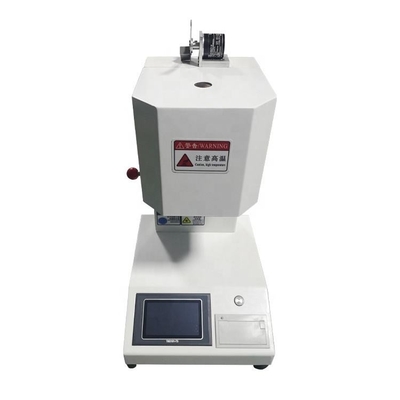

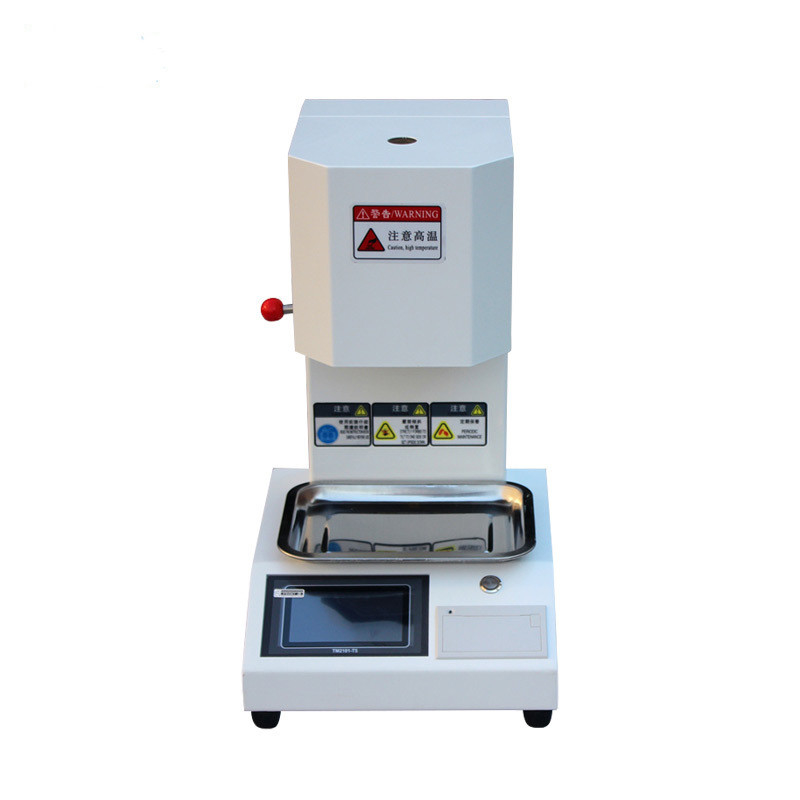

Melt Flow Index Tester meets the demands of GB/T3682-2000, as well as ISO1133-97, ASTM D1238,JIS K7210 and other standards involving main parameters. The melt flow indexer is suitable for measuring melt mass flow rate(MFR) and melt volume flow rate(MVR) of plastic materials such as polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylic, POM, fluorine plastic, polycarbonate. It is widely used in plastic production, plastic products, petrochemical industries and related institutions, research institutes and inspection departments.
1.PID dual-zone temperature control, fast heating speed, high accuracy of constant temperature
2. After packing, it can quickly restore the constant temperature state
3. Time is accurate to 0.1s.
4-Automatic and manual cutting test methods can be used

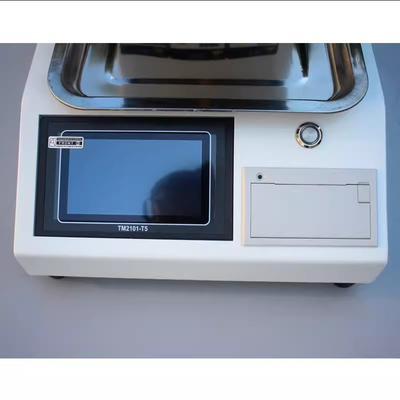

5. Equipped with printer, the test results will be automatically printed out
Cylinder Diameter |
9.5504 ± 0.0076 mm in accordance with ASTM D1238-04 5.2 |
Cylinder length |
162 mm Conforms to ASTM D1238-04 5.2 Barrel O.D., Sensor Opening, Finish, Hardness Conforms to ASTM D1238 |
Mouth Diameter |
2.0955 ± 0.0051 mm Conforms to ASTM D 1238-04 5.3 |
Mouth Die Length |
8.000 ± 0.025 mm in accordance with ASTM D 1238-04 5.3 |
Piston Head Diameter |
9.4742±0.0076 mm Conforms to ASTM D 1238-04 5.4.1 |
Piston head length |
6.35± 0.13 mm Conforms to ASTM D 1238-04 5.4.1 |
Standard Test Load |
Total 8 levels |
Temperature range |
Room temperature -450℃(cast copper heating ring) |
Constant temperature accuracy |
±0.5℃ |
Display resolution |
0.1℃ |
Cutting mode |
Manual or automatic cutting |
Constant temperature time |
Can work continuously |
Micro printer |
Automatic printout |
Power supply voltage |
AC220V±10% 50HZ |
Accessories List
Standard weights |
875 g 1 1835g 1 2500 g 1 2915 g 1 3475 g 1 5000g 1 |
Piston rod | 1 pcs (325g) |
Wire line | 1 pcs |
Cleaning rod | 1 pcs |
Charge rod | 1 pcs |
Brush | 1 pcs |
Gauze | 3 rolls |
Print Paper | 1 roll |
Tweezer | 1 pcs |
Glovers | 1 set |
Funnel | 1 pcs |
Mouth model and cleaning rod | 1 pcs |
Level bubble | 1 pcs |
