Plug Life Test Equipment Horizontal Plug And Pull Force Tester Insertion And Extraction Force Testing Machine

Plug Life Test Equipment Horizontal Plug And Pull Force Tester Insertion And Extraction Force Testing Machine

Brand Name:	SKYLINE
Model Number:	SL-PL30
MOQ:	1 unit
Price:	Negoitable
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	1 pcs/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Transmission Mode:

Otating Eccentric Wheel

Frequency Range:

0 To 999999

Display Mode:

Touch Screen Control

Inserting And Pulling Force Range:

0~50kg

Minimum Insertion Force Resolution:

0.01kg

Stroke Adjustment Range:

0~50MM

Test Speed:

0~60MM (digital Display)

Two Conversion Units:

N, KG

Size:

550(D)*470(W)*450(H)mm

Working Voltage:

Single-phase 220V,50HZ

Packaging Details:

plywood case

Supply Ability:

1 pcs/ month

Highlight:

Plug Life Test Equipment

Horizontal Plug And Pull Force Tester

Extraction Force Testing Machine

Product Description

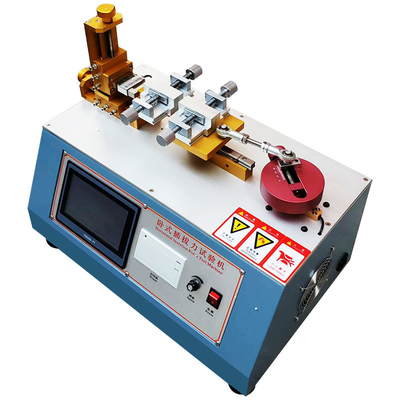

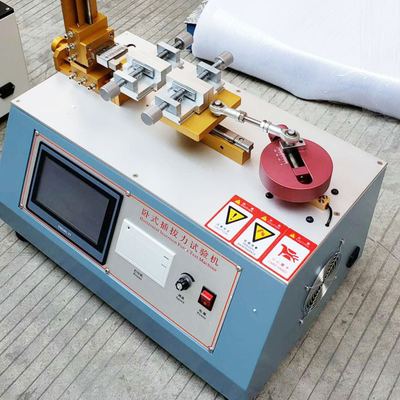

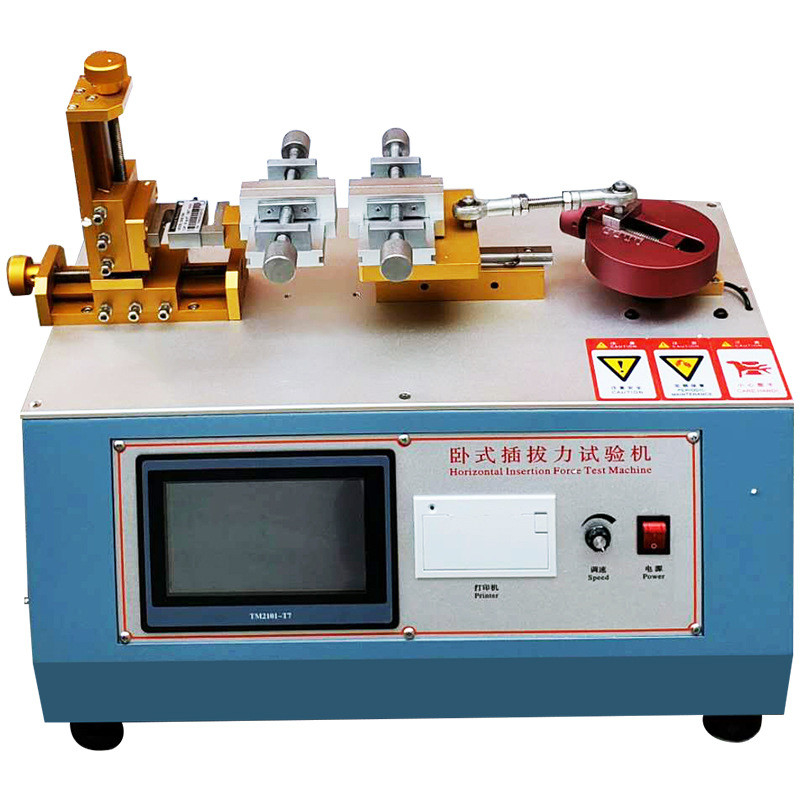

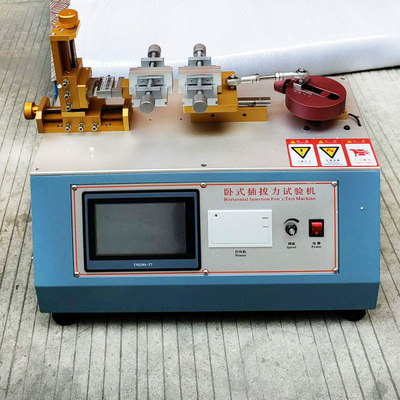

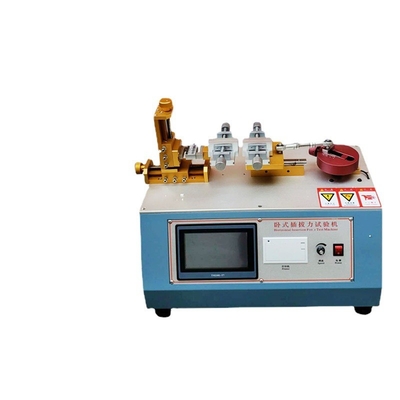

Horizontal Plug And Pull Force Tester Insertion And Extraction Force Test Machine

Product introduction

This machine is suitable for many kinds of connector plug and pull test, using embedded microcomputer measurement and control technology, can display insert force, pull force, real-time force value, and has the number of settings, speed stroke adjustable,and display speed value, automatic zero, unit conversion, etc. Rotary eccentric power design, so that the test speed and test stroke are not associated with long and short stroke connectors, the test is equally fast

Features

1. Can set Testing speed, Testing times & Stroke.
2. Auto show testing speed, insertion force, withdrawal force and current force.
3. Nice appearance, durable service

4. High quality Touch screen controller, easy operation and convenient.

Technical parameters

Frequency range	0 to 999999
Transmission mode	Rotating eccentric wheel
Display mode	Touch screen contro
Inserting and pulling force range	0~50kg
Minimum insertion force resolution	0.01kg
Stroke adjustment range	0~50MM
Test speed	0~60MM (digital display)
Two conversion units	N, KG
Size	550(D)470(W)450(H)mm
Working voltage	Single-phase 220V,50HZ
