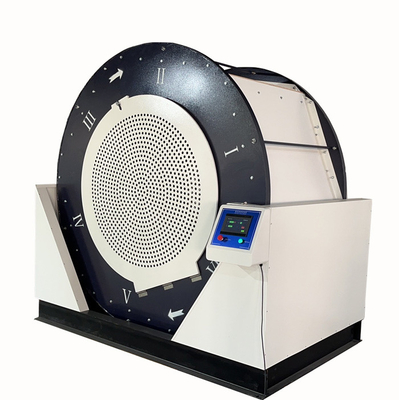

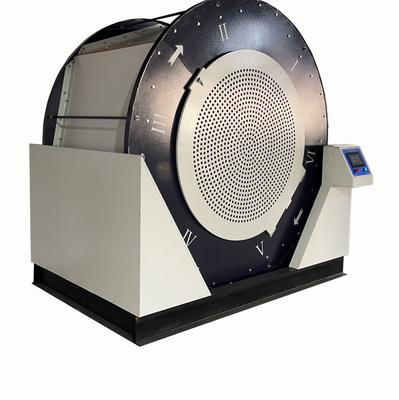

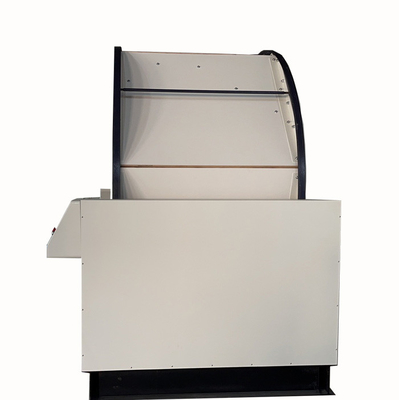

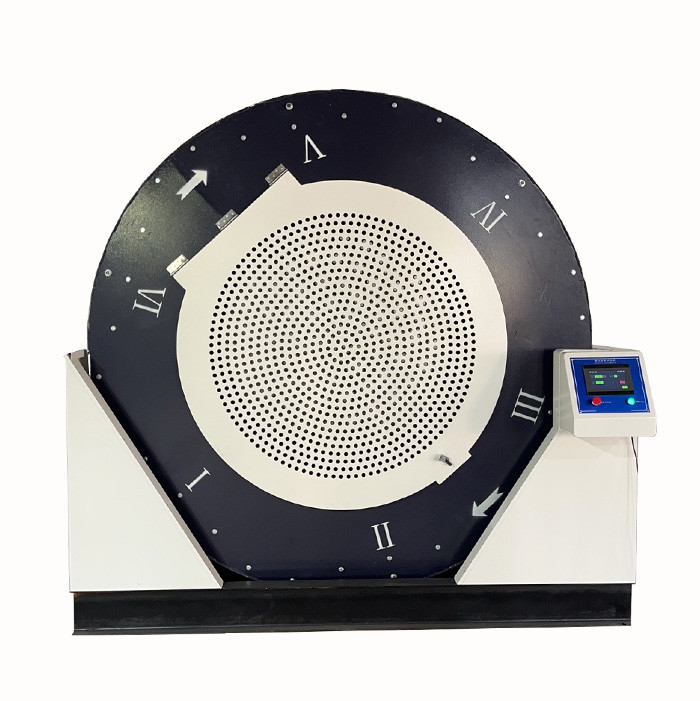

220V Tumbling Barrel Test Machine High Precision

220V Tumbling Barrel Test Machine High Precision

220V Tumbling Barrel Test Machine High Precision
220V Tumbling Barrel Test Machine High Precision
220V Tumbling Barrel Test Machine High Precision
Product Details:
Place of Origin: Dongguan, China
Brand Name: SKYLINE
Certification: CE, ISO
Model Number: SL-R512
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets/month
Contact Now
Detailed Product Description
Roller Inner Diameter: ¢2200mm Depth: 1250mm
Drum Speed: 2 Rpm/min Barrier Specifications: 96 Degrees Barrier 3 Groups. Conical Block 1 Piece. Horizontal Block 1 Piece
Specimen Size: (maximum) 1000 × 700 × 400mm Counter: 0 ~ 99,999 Can Be Set (automatic Stop)
Transmission System: Aiwan Chang Yi Speed Motor Stable Operation Machine Size: 250*160*250cm (L*W*H)
Power Supply: 220V 50HZ Weight: 2000KG
High Light:

220V tumbling barrel test machine

,

High precision tumbling barrel test machine

,

220V tumble test machine



Suitcase Drum Drop Testing Machine/Luggage Roller Drop Tester /Tumbling Barrel Test Machine/tumble test machine

Luggage Roller Impact/Drum Drop Testing Machine





Product description

This product is designed and manufactured in accordance with ISTA and GB standards, and is designed to simulate the tumbling and impact of suitcases and other packaging boxes during transport. The boxes are rolled and impacted in the drum, and after the specified number of revolutions are completed, the damage condition of the boxes is checked as the basis for product improvement.



Based on the standard

QB/T4116-2010 luggage roller drop test method QBT 2155-2010 travelling luggage.

220V Tumbling Barrel Test Machine High Precision 0

Technical parameters

Roller inner diameter ¢2200mm
Depth 1250mm
Drum speed 2 rpm/min
Obstacle specifications 96 degrees obstacle 3 groups. Conical block 1 piece. Horizontal block 1 piece
Specimen size (maximum) 1000 × 700 × 400mm
Counter 0 ~ 99,999 can be set (automatic stop)
Transmission system Taiwan Chang Yi speed motor stable operation
Machine size 250*160*250cm (L*W*H)
Power supply 220V 50HZ
Weight 2000Kg
