| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-PL002 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Zig Zag Write Test Equipment | Load Weight Weight: | 50g+/-0.5g |
|---|---|---|---|
| Maximum Sample Diameter: | ≤φ24mm | Writing Angle: | 60°~90° Adjustable |
| Sample Single Stroke / Full Stroke: | 1.375 Inches/2.75 Inches | Weight: | 60kg |
| Packing Dimension: | 80cm*66cm*66cm | Gross Weight: | 90kg |
| High Light: | Zig Zag Writing Test Equipment,50g Load Writing Test Equipment |
||

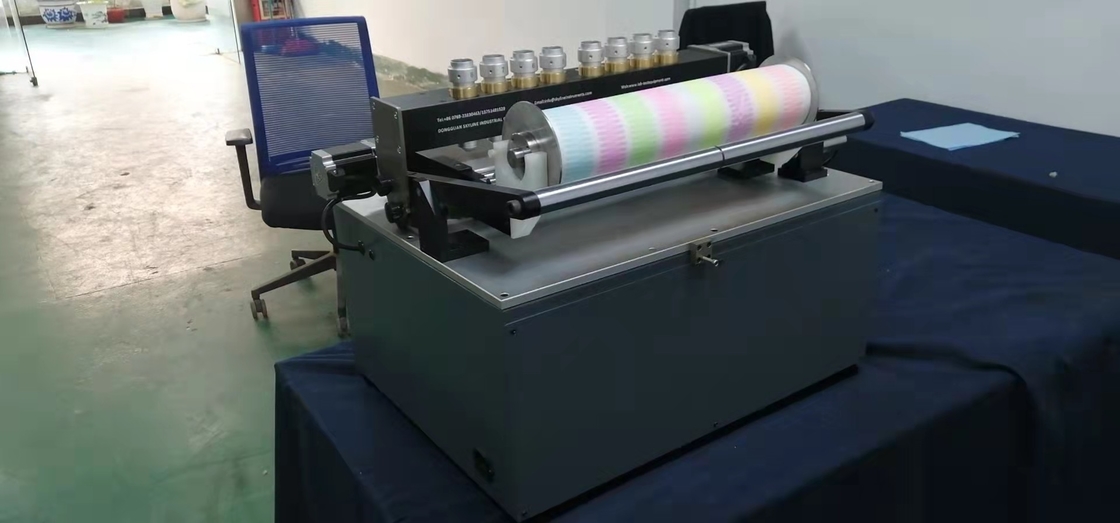

Zig Zag Writing Test Equipment
Use
This Writing Test Equipment is used to detect the refill of a pen, and draw a Z shape at a certain speed to check whether the stitching meets the performance required by Article 3.6 of ISO27668-1.
Principle
This test equipment simulates the state of writing with a pen, puts the sample on a certain load and makes it write a Z mark at a certain speed, and checks the structure and performance of the sample.
According to the standard
This test equipment is made with reference to the requirements of Article 3.6 of ISO27668-1.
Technical parameters
| Sample | Writing pen |
| Load weight weight | 50g+/-0.5g |
| Maximum sample diameter | ≤φ24mm |
| Number of samples | 8 pcs/time |
| Sample single stroke / full stroke | 1.375 inches/2.75 inches |
| Writing speed | 1.0m/min-10.0m/min adjustable |
| Refill Rotation speed | 0.1-3.0 revolutions/min adjustable |
| Line spacing between 1mm and 5mm | 1.0mm-10.0mm adjustable |
| Writing angle | 60°~90° adjustable |
| Volume (WxDxH) | 72cm*57cm*46cm |
| Weight | ≈60Kg |
| Power Supply | 220V, 20A |
