Footwear Slip Resistance Tester Equipment SATRA TM 144

Footwear Slip Resistance Tester Equipment SATRA TM 144

  • Footwear Slip Resistance Tester Equipment SATRA TM 144
  • Footwear Slip Resistance Tester Equipment SATRA TM 144
  • Footwear Slip Resistance Tester Equipment SATRA TM 144
Footwear Slip Resistance Tester Equipment SATRA TM 144
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L82PS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 25 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Footwear Dynamic Anti-slip Testing Machine Vpressure: 0~1000N
Test Speed: (0~0.3±0.03) M/s Adjustable Stroke Of Movable Plate: 0~200mm
Static Contact Time: 0~5s Accuracy: ±0.5%
Wedge Angle Gauge: 7° And 5°; Power Supply: AC 220V 50Hz 1500W
High Light:

Footwear Slip Resistance Tester


SATRA TM 144 Slip Resistance Tester

ISO 13287 Footwear Dynamic Slip ResistanceTest Equipment



Apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.



ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267, ISO 20344,



Apply the specified load through different media (stainless steel plate, ceramic tile or specified). Set the specified number and speed of friction. To measure the friction coefficient of the sole to determine the slip resistance of the shoe;


Test project

Test items:Forward heel slip

Backward forepart slip

Forward flat slip

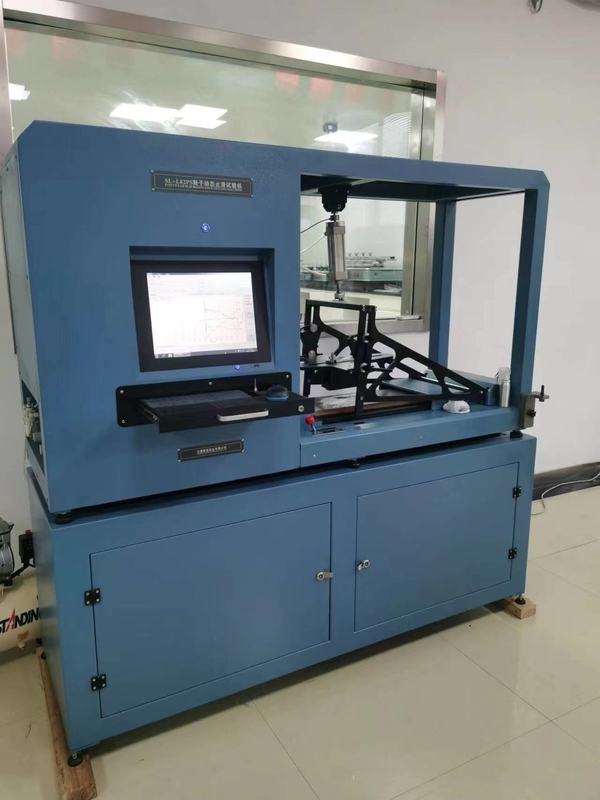

Footwear Slip Resistance Tester Equipment SATRA TM 144 0

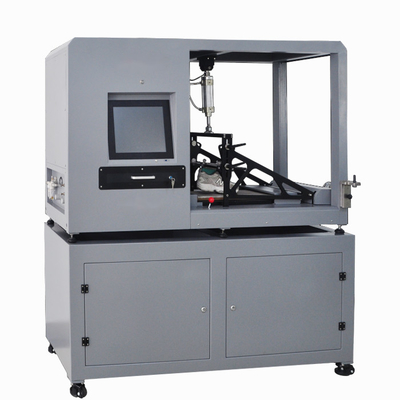

Footwear Slip Resistance Tester Equipment SATRA TM 144 1

Installation requirements

1.Power supply: AC 220V 50Hz 1500W;

2.Environment: 23 ± 2 ℃, 50% ± 5%;

3.Operation: floor;

4.gas requirements: compressed air



Technical parameters

Vertical pressure 0~1000N
Horizontal tension 0~1000N
Test speed (0 ~ 0.3 ± 0.03) m / s adjustable
Active plate stroke 0~200mm
Static contact time 0~5s
Shoe last fixing device 0~30
Vertical sensor 1KN/1 pcs
Horizontal sensor 1KN/1 pcs
Precision ±0.5%
Vertical pressure control accuracy ±1%
Vertical pressure control time 0 ~ set value,less than 0.2 seconds
Planetary reducer Reduction ratio 1:15, running low manic sound
worktable 600 * 320mm (made of stainless steel)
Control motor 750W brand servo motor
Pressure system precision proportional valve control, computer settings, automatic pressure
Loading sample rack made of aluminium alloy
Control system + software Skyline developed a high-speed acquisition system and special test software, built-in ISO 13287, SATRM 144, ASTM F2913, GB/T3903.6 and other test methods directly call
Application force cylinder SMC cylinder
Protection devices leakage protection, pressurised overload protection, air buffer travel limit protection. Emergency stop switch protection
Wedge angle gauge 7 ° and 5 ° two kinds
Compressed air minimum 6 bar, with sanding cleaning device (pneumatic spray gun)
Dimension 192*81*175 L*W*H cm
Weight 600KG





Standard accessories

Shoe lasts(40, 41, 42, 43, 44) 1 pair
Fast loading rack for foldable lasts 1 pcs
5/7°Wedge angle gauge 2 pcs
ISO 13287 standard rubber block (for tiles and instrument calibration) 1 pcs
Sole sanding block 1 pcs
Sanding blowing device (pneumatic spray gun) 1 pcs
Sole sanding block 1 pcs
P400 silicon carbide sandpaper 1 package (50 sheets)
ISO 13287 similar tiles (SRA standard pavement media 1 set
ISO 13287 stainless steel test plate (SRB standard pavement media) 1 pcs
Standard ceramic tile(domestic, SATRA TM 144, ASTM F2913 pavement media) 1 pcs
Marble interface 1 pcs
Wood flooring interface 1 pcs
SATRA TM 144, ASTM F2913 shoes with skins installation angle block 1 pcs
Sodium dodecyl sulphate (SRA tile test slippery road surface preparation) 2 bottles
Standard glycerin aqueous solution, ordinary glycerin 2 bottles (SRB stainless steel plate test slippery road surface preparation) 1 bottle
Import strong adhesive (strong adhesion, tearing and uncovering the glue does not adhere to the standard adhesive, soles, skins and other tests) 1 roll


Optional accessories

1.ISO 13287 mechanical false foot 1 set (4 / set, for shoes up to 250 shoe size installation);

2.Rotary viscometer (standard glycerine modulation);

3.Roughness tester 1 (detecting tiles, stainless steel plate roughness);

4.A silent air compressor;

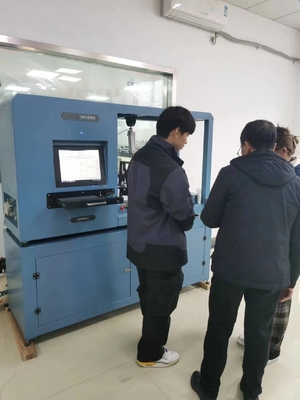

Footwear Slip Resistance Tester Equipment SATRA TM 144 2
