LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1

  • LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1
  • LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1
  • LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1
LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1
Product Details:
Place of Origin: China
Brand Name: Skyline
Certification: CE, Rosh, Calibration
Model Number: SL-T33
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description

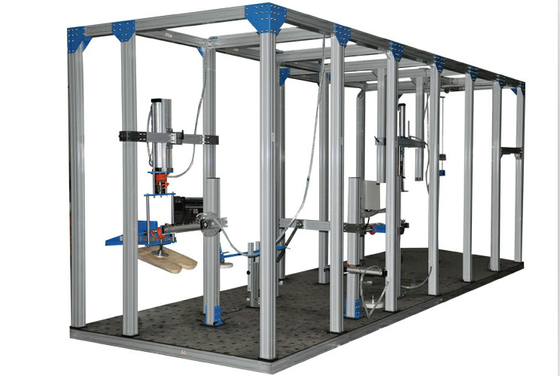

Basic Test Frame: 3x3x2m,be Made Of 80x80mm Alu.material Load Air Cylinder: Seating Load: 200kg; Back Load:100kg; Arm:100kg; Leg:100kg
Force Sensor: High Precision Brand Sensors 7 Sets Control Method: PLC And LCD Touch Screen
Counter: 0~999999 (adjustable) Force Adjust: Precision Pressure Valve Equipment With Sensor To Display
Air Supply: 7kgf/cm^2 Power Supply: 1∮ AC 220V 50Hz 5A
Capacity: 200kg (Imported Sensor)
High Light:

LCD Furniture Test Equipment

,

EN 1730 Furniture Test Equipment



Furniture Universal Test Equipment/ Table Test Equipment/ Chair Test Machine/ EN1730/ EN1728/ EN12520/ BIFMA X5.1



Furniture Universal Tester/ EN 1728/EN12520 chair test machine/ multifunctional testing machine/

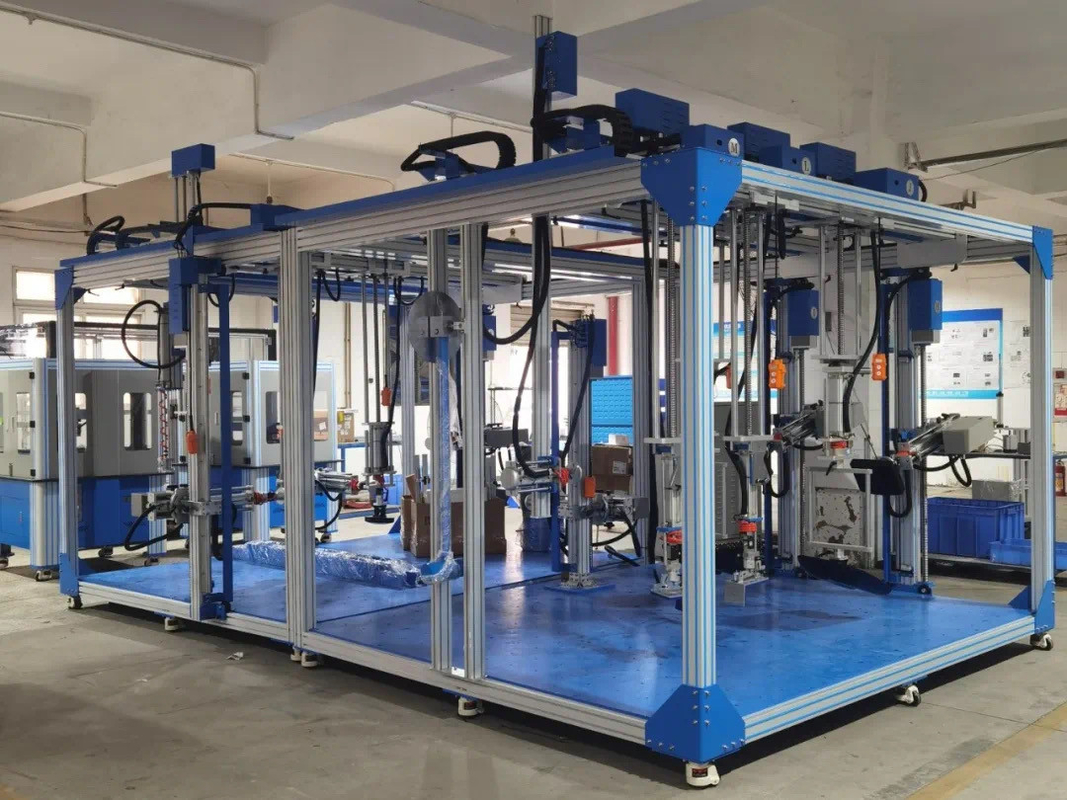

Product Introduction
This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements

Test Standards
EN 1728, EN 12520

Technical Parameters


Basic Test Frame  3x3x2m,be made of 80x80mm Alu.material
Load air cylinder  Seating load: 200kg; Back load:100kg; Arm:100kg; Leg:100kg
Force sensor  High precision brand sensors 7 sets
Control method  PLC and LCD touch screen
Counter  0~999999 (adjustable)
Force adjust

Precision pressure valve equipment with sensor to display

Air supply  7kgf/cm^2
Power supply  1∮ AC 220V 50Hz 5A


STANDARD ACCESSORIES:


Capacity 200kg (Imported Sensor)
Controller and Interface Programmable logic controller + touch screen interface

Accessories

Chair Armrest Fixture x 4 pieces

2 for durability test; 2 for strength test

Seat loading pad x 1 piece

for chair seat static load & durability tests

Smaller seat loading pad x2 pieces

for Chair Front edge static load & durability tests

Back loading pad x 1 piece

for chair back static load & durability tests

Leg loading pad x 1 pieces

for horizontal cylinder for balance load

Impactor x 1 piece

for chair seat impact test

standard foam x 1 piece

for chair seat impact test

Impact hammer x 1 piece

for chair back & arm impact test;

Air Pressure 7 bar

1. All load, cycle rate, speed can be adjusted by the controller.

2. The test results can be output by Word.

3. The actuator is easy adjust to perform Vertical and horizontal static test.



Features:

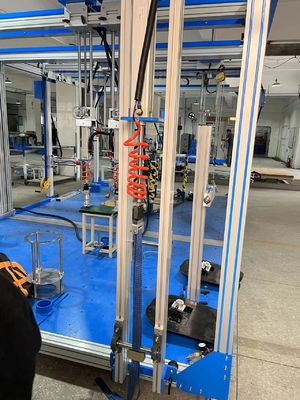

1. Aluminum alloy profile frame structure. All loading components can be moved and fixed along the frame aluminum profile for optimal loading position.
2. All the cylinder parts of the loading force adopt the shaft core hexagonal non-rotating cylinder to keep the loading pad from rotating loading.

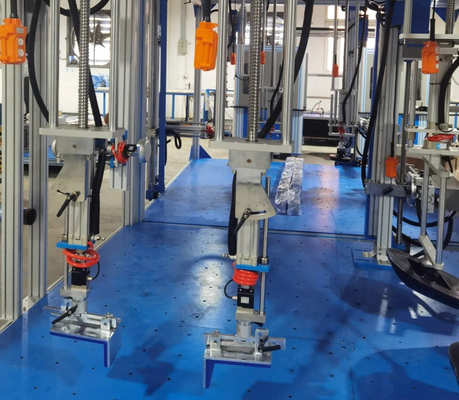

3. The vertical cylinder assembly is mounted on a "base" that slides freely horizontally and automatically shifts and stays vertical when subjected to lateral forces.
4. Easy operation, a person can quickly complete the sample clamping, without any tool assistance.
All channels can be set in independent or combined action mode, and all channels are set with independent touch switches.


TEST ITEMS FOR CHAIR SEAT,BACK,ARM WITH STRENGTH AND DURABILITY SETS REFERS TO EN BS EN 1728 & EN12520
LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 0

NO. Name Pictures

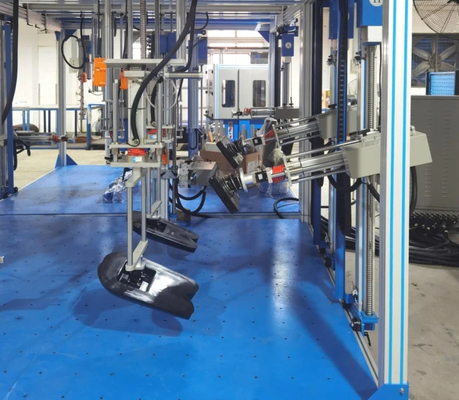

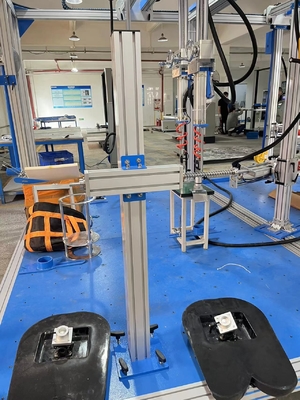

1 Seat surface loading block



LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 1

2 Seat back loading pad (square) LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 2
3 Small seat surface loading pad (200MM) LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 3
4 Universal loading pad LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 4
5 Armrest test fixture

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 5

6 Block for Height

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 6

7 Impact block

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 7

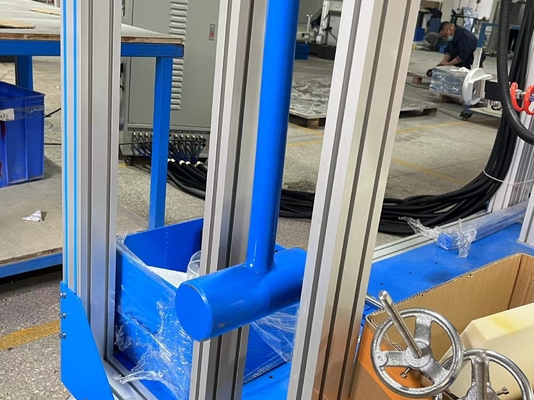

8 Impact Hammer LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 8
9 350x350x25mm Test Foam

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 9

10

CMD

Loading point template

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 10


TEST IMAGE FOR ARM STRENGTH & DURABILITY TESTS
LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 11

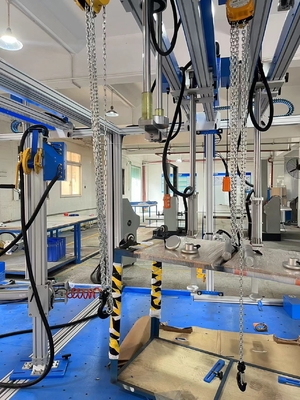

TEST IMAGE FOR ARM & BACK IMPACT TESTS
LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 12
TEST IMAGE FOR SEAT IMPACT TEST
LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 13

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 14



LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 15



LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 16

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 17

LCD Furniture Test Equipment EN 1730 / EN 1728/ EN 12520/ BIFMA X5.1 18
