Cable Fire Resistance Test Equipment UL 2556 / UL 1581

Cable Fire Resistance Test Equipment UL 2556 / UL 1581

  • Cable Fire Resistance Test Equipment UL 2556 / UL 1581
  • Cable Fire Resistance Test Equipment UL 2556 / UL 1581
  • Cable Fire Resistance Test Equipment UL 2556 / UL 1581
Cable Fire Resistance Test Equipment UL 2556 / UL 1581
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: VW-1 Flammability Tester Standards: UL2556-2013
Burning Time Setting: 0~999S Air Source: Methane, Air
Test Box Size: 2m(W)×1.2m(D)×1.8m(H) Power Supply: AC220V 50/60Hz 3A
High Light:

Cable Fire Resistance Test Equipment

,

UL 2556 Test Equipment

,

UL 1581 Test Equipment



VW-1 Flammability Tester



Product Description

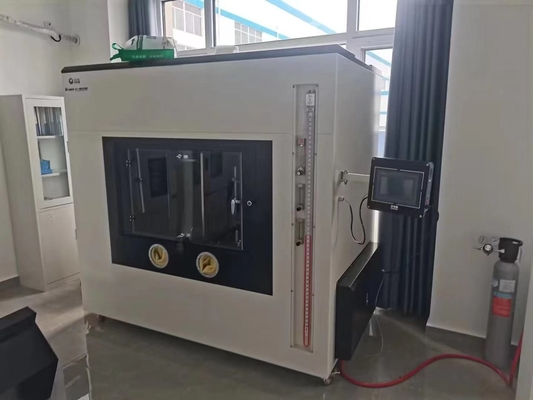

The VW-1 combustion tester is produced in strict accordance with UL standards It fully complies with the VW-1 combustion test standard and can complete VW-1 and FT-2 tests. It is economical and widely used by the wire and cable industry. The parameters are detailed as follows: The entire test is carried out in a sealed test chamber with a volume of 4.32 cubic meters. Test method: adjust the flame height, place the top of the flame under the test piece, burn for 15 seconds, extinguish for 15 seconds, repeat 5 times and check the burning condition of the test piece. operate.

standard:

● UL2556-2013.



Technical Parameter

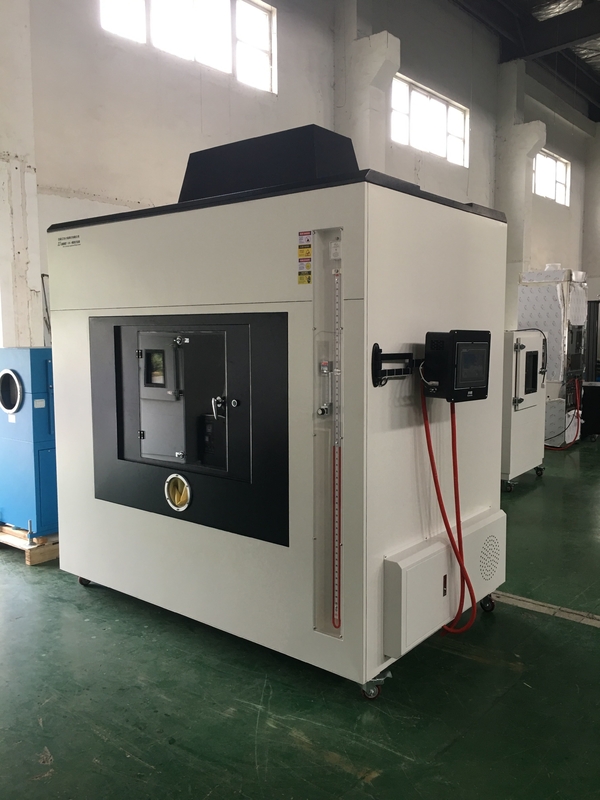

1.Testing Chamber: L2200*D1300*H1650mm, capacity>4.0 m3;upper capacity of flame is more than 2.0m3, there is glass windows on the face, a pair of operational rubber gloves and smoke exhaust system on the top of the chamber;



2.Bunsen burner: Which according to ASTM D5025 standard, Inside diameter of the burner tube is 9.5mm by length is 100mm, the Gas spout diameter is 0.9mm by thickness is 1.6mm. Which burn gas is methane at 98% minimum purity, the inner flame height is 40±2mm, the outer flame height is 125±10mm, nominal rate is 500W with a flame ruler which can check the flame height whether it meet requirement at any time.



3. Temperature measurement system: According to ASTM D5207 standard, including 10g temperature measurement copper pieces, Type K stainless steel thermal which diameter is 0.5mm,stopwatch and thermometer.



4. Specimen stands: Horizontal and vertical stands both independent, which made by Stainless steel. The vertical stand could do the vertical burning test & FT1 test, cables flaming test, VW-1 flaming test and horizontal specimen/FT2 flaming test. The horizontal stand only for electric cable horizontal specimen flaming test.



5. Gas: Methane which at 98% minimum purity, or nature gas which with a heat content of 37.1MJ/m3 or 8.9 kilo calories /m3. The cotton diameter is150~200mm & thickness is 6mm, which is to cover an area of testing surface W 305mm by D355mmon the vertical axis of the specimen, the cotton with a strip of unreinforced 60-lb or 98 g/ m2 Kraft paper which wide is 10mm and length is stick on the sample, then leave over 20mm from the specimen toward the rear of the draft-free chamber.



6. Flux system: Which consist of decompress valve, flow-meter which flux range is 1000ml/min, pressure gauge which pressure range is 200kPa, green oil which density is 1000kg/m3, and U shape pressure meter which range is 36”.

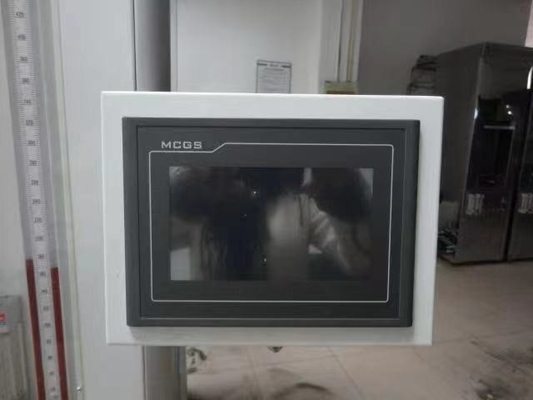

7. Timing system: Which consist of flaming timer, stop-burning timer and extending-fire timer etc. total 3 timer devices.



8. Flaming counter: Accurately record the testing times



Cable Fire Resistance Test Equipment UL 2556 / UL 1581 0



Cable Fire Resistance Test Equipment UL 2556 / UL 1581 1
