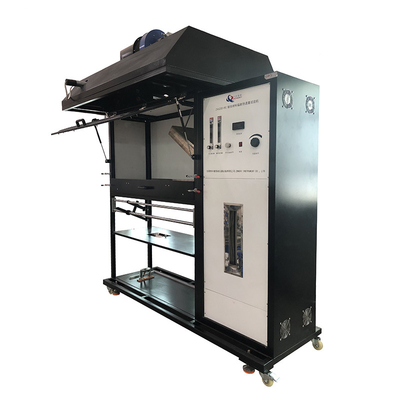

Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648

Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648

  • Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648
  • Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648
  • Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648
  • Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648
Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL02
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: neogitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Floorings Radiant Panel Test Equipment Heat Flux Meter Measurement Range: (0-15) Kw / M2
Accuracy Of Heat Flux Meter: ±0.2Kw/m2 Heat Flux Meter Accuracy: <±3%
Accuracy: ± 0.5 ° C Black Body Temperature Error: ± 5 ° C
The Propane Flow Rate: 0,026 ± 0,002 L/s. The Air Velocity In The Exhaust Stack: (2,5 ± 0,2) M/s.
Anemometer With An Accuracy: ± 0,1 M/s Dummy Specimen: (250 ± 10) Mm Wide And (1 050 ± 20) Mm Long
High Light:

Flooring Radiant Panel Test Equipment


ASTM E648 Test Equipment


ISO 9239 /ASTM E648 Flooring Radiant Panel Test Equipment



It is suitable for testing with paving materials that are placed in a small flame and placed horizontally and exposed to a slanted heat radiation field.

Such as: textile carpets, cork boards, wood boards, rubber sheets and plastic floor and floor coating materials. The device may reflect the burning properties of the flooring material including the substrate used, the backing material, the underlying material or other changes in the flooring material may affect the test results, which are used for testing and description under laboratory control conditions, The burning properties of the ground material against the thermal reaction of the fire.



EN ISO 9239-1 Flame retardant fire test for flooring materials (flooring) - Specific material applications


-Wooden floors

-Plastic wood flooring

-Rubber flooring


-Aluminium honeycomb panels


Technical Parameters

Maximum operating power 5kw
Timing accuracy <1s / h
Heat flux meter Measuring range (0-15) Kw / m2; (heat flow customer-owned)


Heat flux meter accuracy ± 0.2Kw / m2
Heat flux meter accuracy <± 3%;
Heat radiation pyrometer range 400-600 ℃, the accuracy of ± 0.5 ℃;


Black body temperature error ± 5 ℃;
Smoke speed (2.5 ± 0.2) m / s
Smoke capacity (39-85) m3 / min
Porous refractory radiation board size 300mm × 450mm, the ability of about 900 ℃ high temperature;


Thermocouple diameter of 3.2mm K-type stainless steel armored thermocouple
Burning torch diameter ¢ 10mm diameter ¢ 6mm, spray tube on the 35 ¢ 0.7mm hole
Flame height 60 ~ 120mm adjustable
Ignition system high voltage electronic ignition
Burning box size L1420 * W1200 * H2300 (mm)
Strong exhaust system the machine is equipped with a strong fan, when the test is completed, start the exhaust fan system will be exhausted outdoors


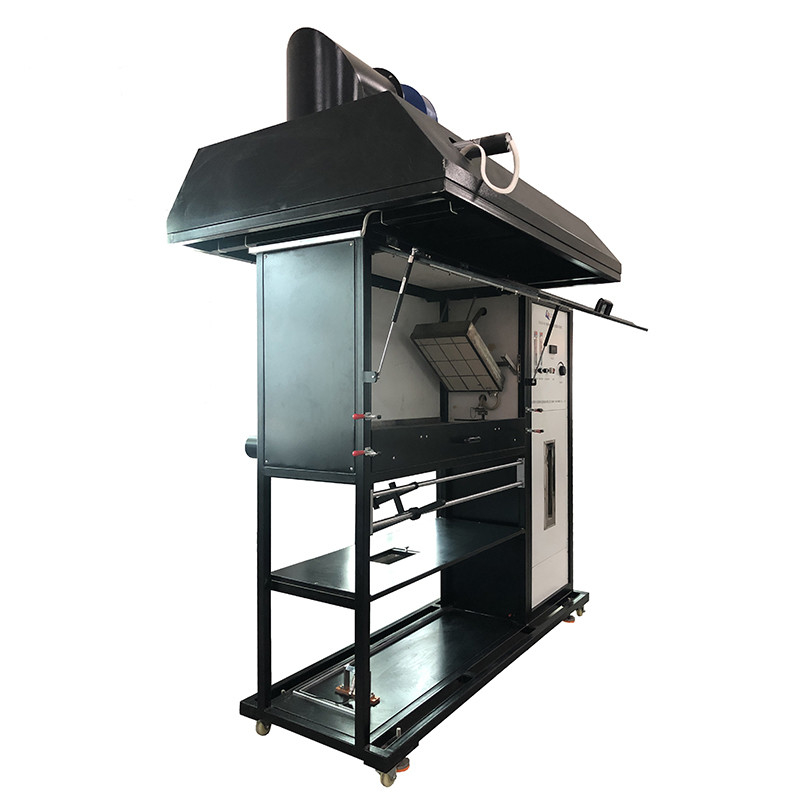

Product introduction of the Flooring Radiant Panel Test Equipment

The ISO 9239 Radiant Flooring Panel test is the cornerstone of the flooring materials reaction to fire tests in the Euroclass system. The test measures the spread of flame of the sample, under thermal exposure, using a radiant heat ignition source. The thermal exposure is that of a fire growing in the room of origin that through a door opening, radiates onto the floorings in an adjacent room or corridor. The apparatus can also be used for tests to standards ASTM E648 and DIN 4102; Part 14.

Use Environment
Indoor use
Altitude: up to 2000m
Ambient temperature: 10 to 35 ° C (60 to 85 ° F)
Relative humidity: 45%~75%.
Permitted voltage fluctuations: 10% of rated voltage.
Overvoltage rating: II
Pollution degree: 1


Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648 0

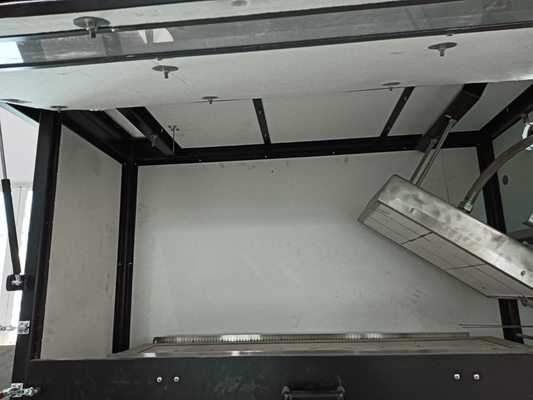

Optical system Including the light source and the receiving end

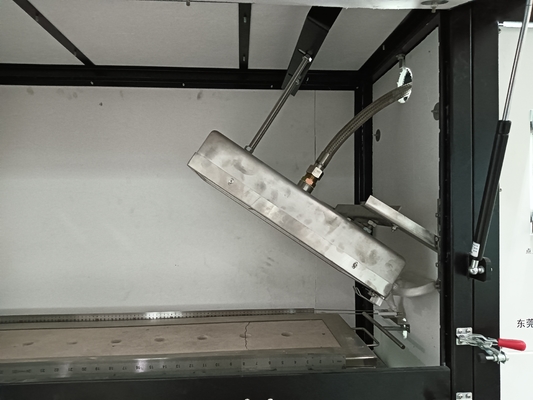

Temperature Sensor


Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648 1


Flooring Radiant Panel Test Equipment ISO 9239 / ASTM E648 2

Pilot burner



Installation requirements

Installation size(mm)

Test box size::1800(L)*1500(W)*2400(H)
Electric control cabinet size:600(L)*1000(W)*1800(H)

Installation requirements

Power supply: 220 V±10%,50 Hz,5A

Air source requirements

Combustion gas: standard propane, the supply flow rate is not less than 5L/min, and the gas inlet pressure is not less than 0.15MPa;
Compressed air: the air force of the intake air is not less than 0.5MPa, and the flow rate is not less than 180L/min;
Water source: dedicated coolant for cooling the heat flow meter.

Electrical: 230 volts Nominal 10 Amps
Ambient Temperature: Operating 10°C to 35°C
Dimensions: Apparatus: 1900mm (W) x 750mm x (H) x 2120mm (D)
Gas Supplies: Propane and air compressor

Exhaust system requirements

Exhaust pipe: caliber 30cm, wind speed 2.5m / s, height from the ground is 2.4m.

What is the ISO 9239-1:2010?

ISO 9239-1:2010 specifies a method for testing the upwind combustion behavior and flame spread of horizontally installed floors exposed to heat flux radiation gradients in a laboratory, when ignited with a pilot flame.
This method works for all types of floors. Examples include textile carpets, cork, wood, rubber and plastic coverings and coatings. The results obtained by this method reflect the performance of the floor, including any substrates (if used). Modifications to the backing, adhesion to the substrate, other changes to the underlayment or floor may affect the test results.
