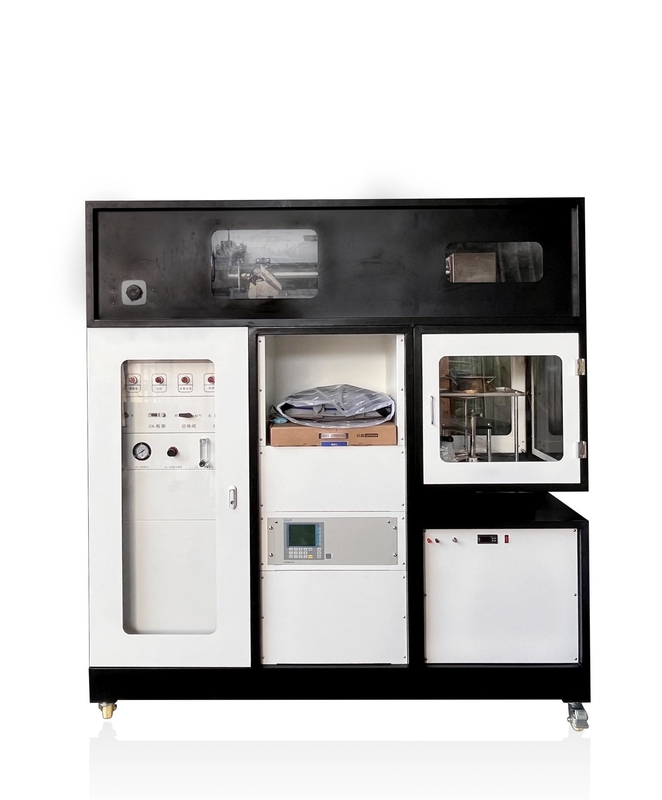

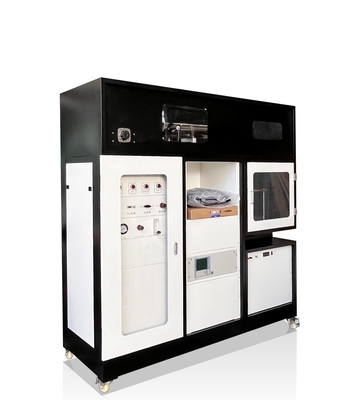

ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer

ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer

ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer
ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer
ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7601S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Cone Calorimeter Standards: ISO 5660,ASTM E1354,ASTM E1740,ASTM F1550
Igniter Timer: Value Resolution: 0.1s Timing Error: 1s/1N
Oxygen Measurement Range: 0-25% Sample Weighing Range: 0 ~ 3000g; Accuracy: 0.1g.
High Light:

ISO 5660 Fire Test Equipment

,

ISO 5660 Cone Calorimeter

,

Cone Calorimeter With Oxygen analyzer



ISO 5660 Cone Calorimeter



Application

The oxygen consumption calculated from the oxygen concentration in the combustion product gas stream and the heat release rate of the combustion products when burning, the material's heat release rate is also the most important parameter in the material combustion performance, and the heat release rate in the material combustion process is measured accurately. For the prediction of fire hazards and its fire-retardant treatment is extremely important.



Standards compliant

ASTM:ASTM D6113,ASTM E1354,ASTM E1740,ASTM F1550
BS:BS 476-15
ISO:ISO 5660
EN:EN 45545-2: 2013
GB:GB/T 16172:2007



Main parameters



Power supply voltage AC220V AC 50Hz
Maximum operating power ≥5KW
Cone heater power ≤5KW
Heat output heat 0~120KW/m2
The maximum placement of the sample box 100mm × 100mm × 50mm
Exhaust flow rate 0.012m3/s~0.035 m3/s (adjustable)
Timing value resolution 1s error <1s/n
Oxygen analysis paramagnetic oxygen analyzer, concentration range 0-25%
Smoke density analysis (optional)
Infrared analyzer CO: 0-1% CO2: 0-10% (optional)

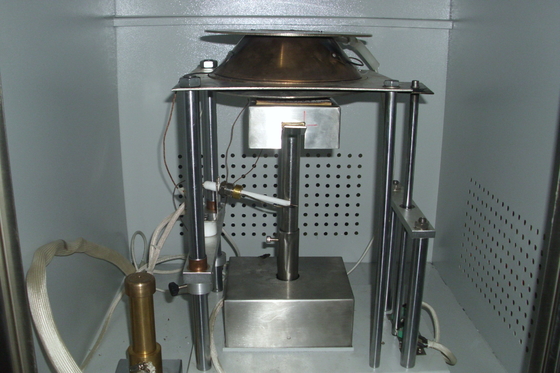

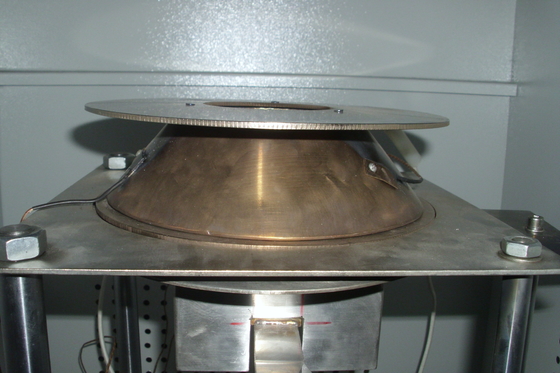

1. Radiation cone: heating power 5kw, radiation intensity: 100kw/m2, equipped with three thermocouples to measure the temperature.

2. Radiation shielding layer: made of non-combustible material, the total thickness does not exceed 12mm;

3. Radiation Control: The radiation control system can be properly adjusted to maintain the temperature of the radiation cone thermocouple at ± 10 °C of the preset value;

4. Weighing equipment: imported high-precision electronic balance, weighing 500g, resolution 0.01g;

5. Sample mounting bracket: made of stainless steel, a square open plate, the upper opening 106mmx106mm, depth 25mm, thickness 2.4mm;

6. Positioning frame: square box made of stainless steel with a thickness of 1.9mm. The inside dimension of the box is 111mm and the height is 54mm. The opening for the test surface is 94mmx94mm.

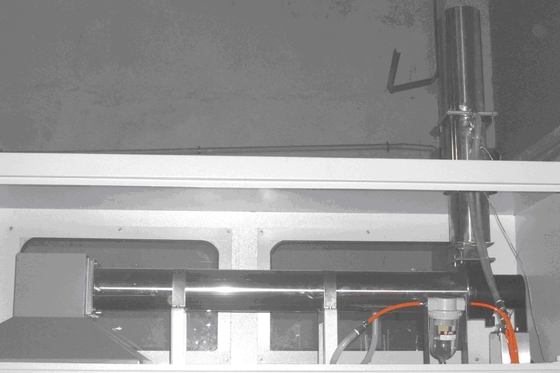

7. Exhaust system: Composed of centrifugal fan, hood, fan inlet and exhaust pipes and orifice flowmeter

8. Gas sampling device: sampling pump, soot filter, dehumidification cold trap, bypass coefficient of evacuation, moisture filter, CO2 filter.

9 .Igniter: External ignition with spark igniter.

10.Igniter timer: value resolution: 0.1s, timing error: 1s/1N

11. Gas analyzers and key components are imported.

12. Set of infrared 02 analyzer

13 .With 64 high-precision board, computer and 8.4-inch LCD display with TCP/IP and RS-232 multiple communication interface options

14 .Oxygen Measurement: Paramagnetic Oxygen Measurement

 Measurement Range  0-25%
 Signal output  4-20mA
 Response time T90  ≤ 3S
 Ambient temperature  0-45 °C
 Relative Humidity  <90% (non-condensing)
 Linearity  <±0.1% O2
 Zero drift  0.05% O2 (one week)
 Repeatability  <±0.02% O2



15 .The data acquisition system can record test data such as oxygen concentration, carbon dioxide concentration, temperature, heat release rate, and mass loss rate, which can be saved;

16 .Computer: One.

17. Laser printer: one.

18. Flue gas processing system: The powerful exhaust system is adopted. The machine is equipped with a powerful exhaust fan. When the test is completed, the exhaust fan system is activated to discharge the exhaust gas to the outside for purification and meet the national emission standards.

ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer 0

What is a cone calorimeter test?

A cone calorimeter is a device used to study the fire behavior of small samples of various materials in condensed phase. It is widely used in the field of Fire Safety Engineering. ... The Cone Calorimeter has long been considered the most significant bench scale instrument in the field of fire testing.



SKYLINE is a company specializing in test equipment development and service Professional company.(is a professional manufacturer of various quality testing instruments.)

The company has a group of experienced technical managers and efficient.
Professional after-sales service personnel, strong technical force, advanced technology, product expertise,Has a rigorous testing system, fine quality management and perfect pre-sales and after-sales service system.
Since its establishment, the company has resolutely won the good reputation of customers with its exquisite design, serious and pragmatic work spirit and good and thoughtful follow-up service. We will, as always, adhere to the principle of “integrity management”, “Quality first, Service oriented”, and provide the most professional and new customers with the latest products, excellent quality, reasonable price and perfect service network. The most efficient and ideal service.
Our major customers are BV, ITS, TUV, SGS, Hasbro and SASO, For these customer 100% testing instruments are supplied by SKYLINE and we are the continuous supplier for these lab. Since SKYLINE is a manufacturer design/develop with advanced technology and having well experienced Technicians which will provide high quality service after sale.

ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer 1



ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer 2



ISO 5660 Fire Test Equipment Cone Calorimeter With Oxygen Analyzer 3
