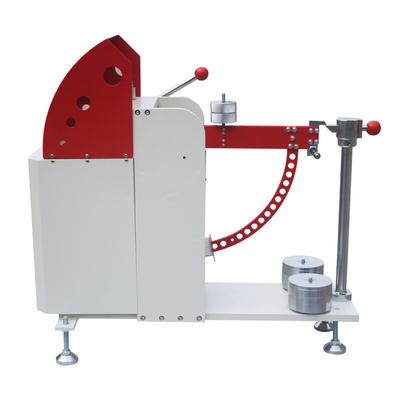

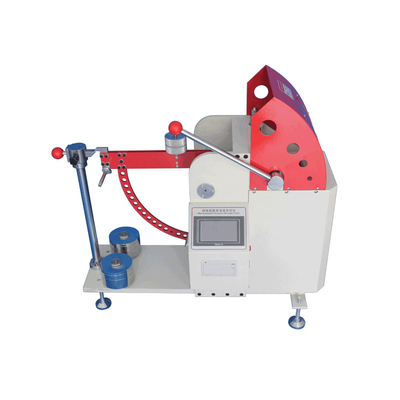

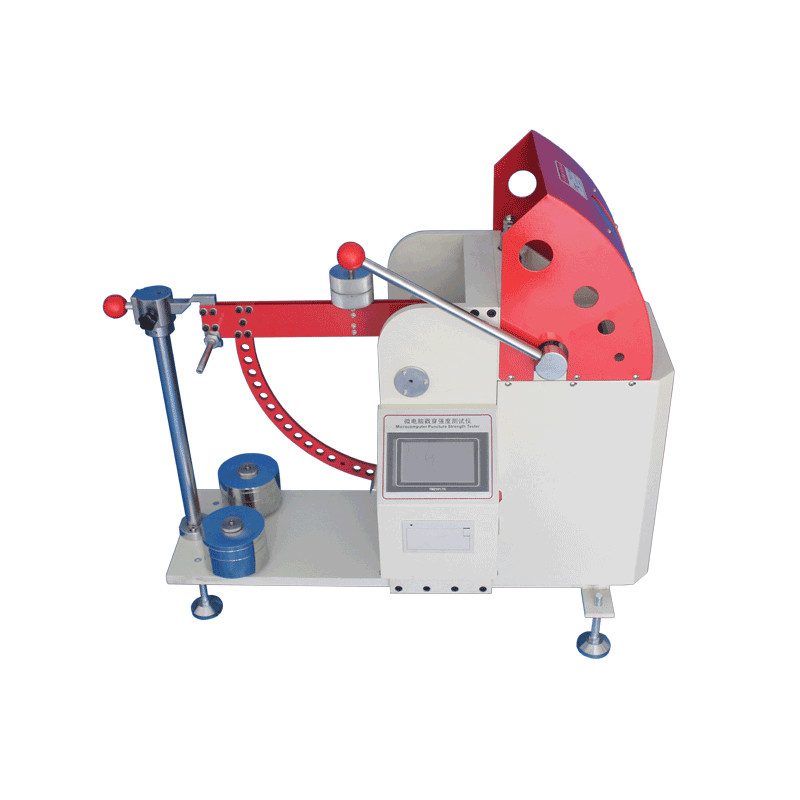

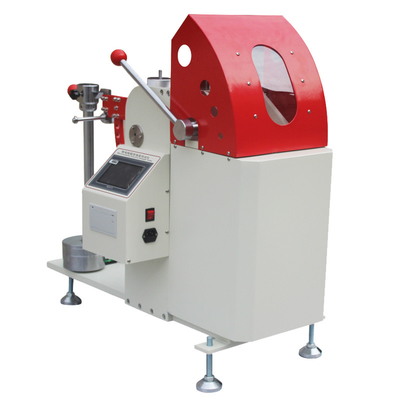

Iso 3036 Cardboard Puncture Strength Tester AC220V

Iso 3036 Cardboard Puncture Strength Tester AC220V

  • Iso 3036 Cardboard Puncture Strength Tester AC220V
  • Iso 3036 Cardboard Puncture Strength Tester AC220V
  • Iso 3036 Cardboard Puncture Strength Tester AC220V
Iso 3036 Cardboard Puncture Strength Tester AC220V
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-P26F
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Puncture-Strength-Tester Pointer Friction: <0.25)
Measuring Range: (1~48)J Edge Radius: (1.5±0.1)mm
Pendulum Friction And Air Resistance: >120 Times (measured By The Number Of Swinging Arm Oscillations) Characteristic Dimensions Of Angular Cone Three Bottom Edge Length: 60mmx60mmx60mm, Height(25±0.7)mm
Trial Value Error: A Scale:±0.05J;B Scale:±0.1J, C:scale:±0.2J, D Scale:±0.5J (within 20%~80% Of The Upper Limit Of Measurement For Each Grade) Power Supply: AC220V±10% 2A 50HZ
Overall Dimension: 800x500x750mm Instrument Weight: 110kg
High Light:

iso 3036 puncture strength tester


cardboard puncture strength tester

Puncture Strength Tester Cardboard Puncture Strength Tester


Product use overview

Computer Intelligent Corrugated Cardboard Puncture Strength Tester is a special testing instrument for corrugated cardboard puncture resistance (puncture strength). This instrument has a fast compression, automatic reset of the operating handle and reliable safety protection, with liquid crystal display, Thermal printer and other characteristics, applicable to a wide range of cardboard, cardboard, carton production, scientific research and commodity inspection and other enterprises and departments indispensable and commonly used instruments. This instrument conforms to the following standards: the product reference ISO 3036 (cardboard a puncture strength determination GB2679-7 "cardboard puncture strength determination method") The relevant provisions of the design


1. Microcomputer control technology, open structure, high automation procedure, simple and convenient operation, safe and reliable.

2. Full-automatic measurement, intelligent judgement function, operating system real-time display of measurement results.

3. Automatic measurement, statistics, printing test results, and has the function of data preservation.

4. Touch screen operating system, configure Chinese graphic menu display operating system, easy to use.

5. High-speed micro-printer, high-speed printing, easy to use, low-fault

6. Electromechanical integration of modern design concepts, compact structure, beautiful appearance, convenient maintenance

Technical Parameters

Instrument weight 110kg
Pointer friction <0.25)
Measuring range (1~48)J
Edge radius (1.5±0.1)mm
Power supply AC220V±10% 2A 50HZ
Overall Dimension 800x500x750mm
Working environment Temperature 5~35°C, Relative humidity not more than 85
Pendulum friction and air resistance >120 times (measured by the number of swinging arm oscillations)
Characteristic dimensions of angular cone three bottom edge length 60mmx60mmx60mm, height(25±0.7)mm
Trial value error A scale:±0.05J;B scale:±0.1J, C:scale:±0.2J, D scale:±0.5J (within 20%~80% of the upper limit of measurement for each grade)
