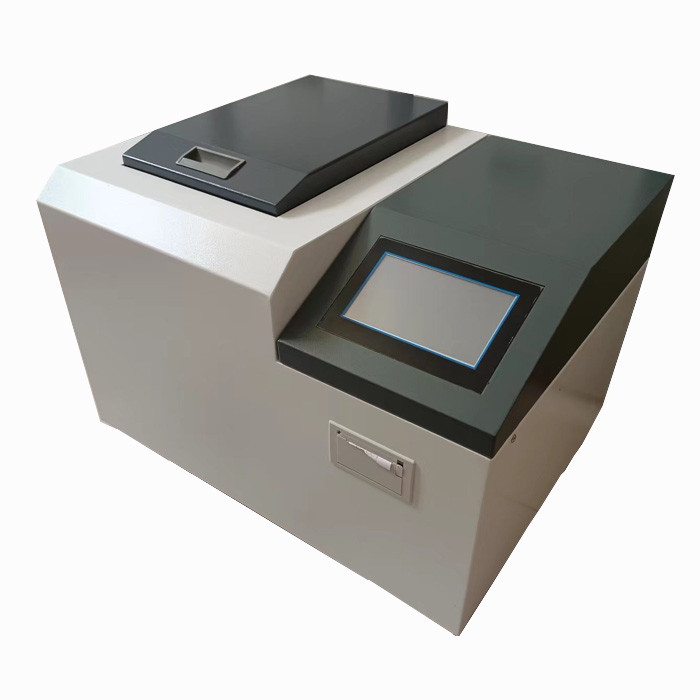

ISO 1716 High Precision Automatic Calorific Value Testing Machine For Coal And Fuel

ISO 1716 High Precision Automatic Calorific Value Testing Machine For Coal And Fuel

  • ISO 1716 High Precision Automatic Calorific Value Testing Machine For Coal And Fuel
ISO 1716 High Precision Automatic Calorific Value Testing Machine For Coal And Fuel
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL087
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case,
Delivery Time: 20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Flammability Tester Standards: ISO1716
Application: Determine The Heat Of Combustion Of Building Products Bomb Vessel Capacity: (300 ± 50) ML
Control Method:: PC Control, Fully Automatic Power Supply: AC220V+/-10%, 50HZ
Heat Capacity Of The Instrument: About 10500J / K Temperature Detection: (4.5-50) ℃, 0.0001 ℃ Resolution
High Light:

ISO 1716 Oxygen Bomb Calorimeter

,

Automatic Oxygen Bomb Calorimeter

,

ISO 1716 Calorific Value Testing Machine

ISO 1716 High Precision Automatic Oxygen Bomb Calorimeter/ Auto Calorific Value Testing Machine For Coal And Fuel



ISO 1716 Oxygen Bomb Calorimeter



Application

This digital oxygen bomb calorimeter is designed and made as per the ASTM D240, ASTM D5865, National Standard of People's Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter. The heat capacity of the instrument is 14000 J/K~15000 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.



Standards

JJG672-2001; ISO1716; ASTM D240; ASTM D5865;GB/T384-1988;GB/T213-2008



Specification

Heat capacity

about 10500J/K

External water tank capacity

about 40L

Inner water tank capacity

about 2.1L

Temperature range

5-45 °C

Temperature resolution

0.0001K

Precision

≤0.1%

Power

100W

Dimensions(mm)

700*730*630

Machine weight

70KG

Power supply voltage

AC220V 50Hz

Single calorie measurement time

about 15 minutes

Features

1. Three test modes: fast, normal and accurate.
2. Large storage capacity: 1000 experimental results can be stored in the data processing.
3, a variety of independent and flexible operation methods: support touch operation, button operation and mouse operation.
4. Curve tracking function: The whole process curve of the experimental process tracks the temperature rise record.
5, real-time cooling correction, the environment temperature requirements are relaxed.
6, a variety of printing methods: can be set to prohibit printing, simple printing, standard printing and detailed printing.
7. The embedded ARM is the main control chip, equipped with 7-inch true color touch LCD screen and mouse device. The experiment is simpler and more flexible. The direct human-computer interaction mode is more convenient to use.
8, with the computer's powerful data processing capabilities and strong scalability, historical data query, printing is simple and easy.
9. The experimental process of water injection, drainage, stirring, ignition, temperature measurement, calculation, calibration and printing is fully automatic
