Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE , Calibration Certificate
Model Number:	SL-BT106

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiated
Packaging Details:	plywood case
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

Capacity:	5000kgf*1set	Resolution:	5‰
Electric Cylinder:	Electric Cylinder Servo Control	Displacement Stroke:	150mm
Frequency Range:	1-5Hz	Control Software:	Self-developed Special Software
Force Waveform:	Sine Wave	Weight:	160KG
Power Supply:	AC220V,15A	Dimension:	Test Bench:1950450900mm
Highlight:	Bicycle Sprocket Crank Fatigue Tester , Sprocket Combination Parts Fatigue Tester , EN 14764 Fatigue Tester

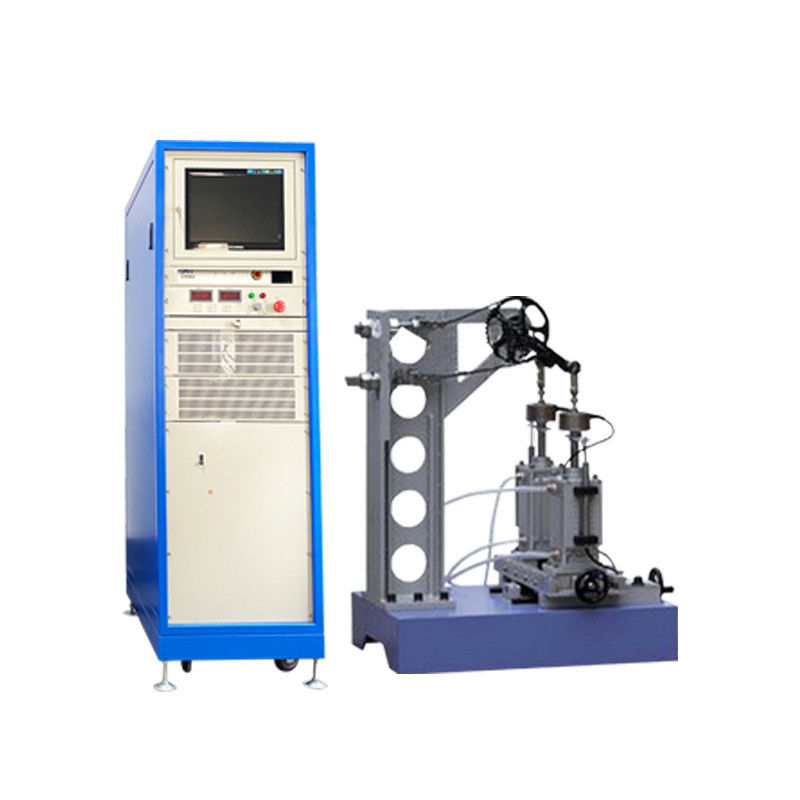

Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764

Name: Bicycle Crank Sprocket Combination Parts Fatigue Tester EN 14764
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT106
Price: 4,500.00 USD
Availability: InStock

Test principles

According to EN14764:2005 , ISO4210-2014

Application Of Bicycle Crank Sprocket Combination Parts Fatigue Tester

This machine is used to simulate the actual use of the bicycle sprocket crank. A certain force is applied to the left and right footpegs at the use position. After a certain number of times, the wear and tear is detected.

Technical parameters

Capacity	5000kgf*1set
Resolution	5‰
Electric cylinder	Electric cylinder servo control
Displacement stroke	150mm
Frequency range	1-5Hz
Control software	Self-developed special software
Force waveform	Sine wave
Weight	160KG
Power supply	AC220V,15A
Dimension	Test bench:1950450900mm Control cabinet: 6006101810mm (LWH)
