Bicycle / Bike Wheel Rotation Progress Tester 700 Mm Diameter

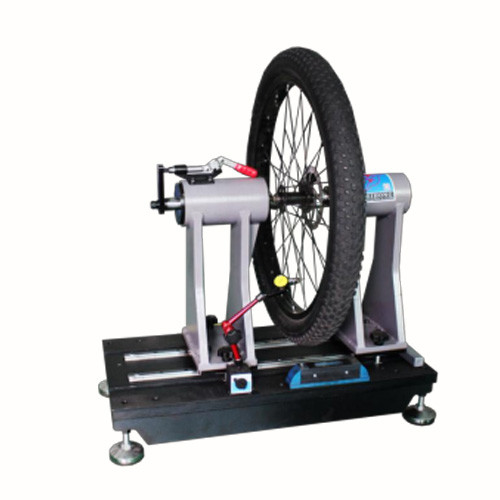

Name: Bicycle / Bike Wheel Rotation Progress Tester 700 Mm Diameter
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT101
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-BT101
MOQ:	1 Unit
Price:	negotiated
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE , Calibration Certificate

Measuring Accuracy:

0.01mm

Max. Measuring Length:

300mm

Max. Measuring Diameter:

700 Mm

Collet Coaxiality:

Less Than 0.1 Mm

Dimension(WxDxH):

1000x800×900mm

Weight(approx.:

60kg

Packaging Details:

plywood case

Supply Ability:

10 unit / month

Highlight:

Bicycle Wheel Rotation Progress Tester

Bike Wheel Rotation Progress Tester

700Mm Diameter Rotation Tester

Product Description

Test principles

According to EN14764:2005 , ISO4210-2014-7/4.1

Application Of Bicycle/Bike Wheel Rotation Progress Tester

The equipment is commonly used in bicycle wheel rotation accuracy.

Used to measure the radial runout and axial runout of the wheel, equipped with measuring wheel to radial, axial and tire with its auxiliary parts between the measurement tool, measuring tool accuracy of 0.01mm; and automatically record the maximum amount of runout and the maximum clearance function, with sufficient strength to meet the test of different sizes and models of samples and frequent use of the installation but not easy to damage.

Test method

1. fix the workpiece.

2. Point the indenter of the percentage meter to the position to be.

3. turn the wheel and read the maximum runout.

4. According to the standard requirements of the program to determine whether it is qualified.

Technical parameters

Measuring accuracy	0.01mm
Max. measuring length	300mm
Max. measuring diameter	700 mm
Collet coaxiality	Less than 0.1 mm
Dimension(WxDxH)	1000x800×900mm
Weight(approx.)	60kg
