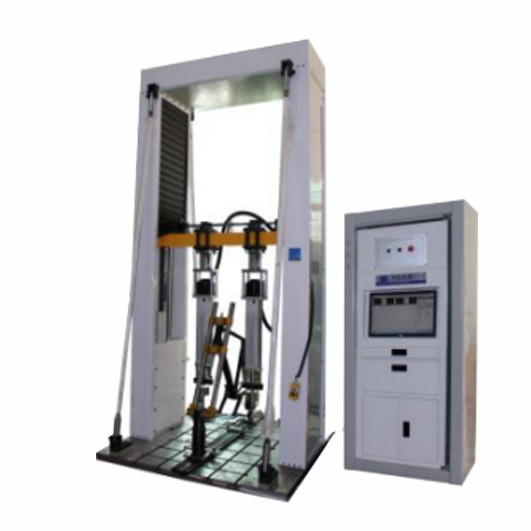

1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A

1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A

  • 1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A
1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-BT100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
Capacity: 5000kgf*2sets Resolution: 5‰
Electric Cylinder: Electric Cylinder Servo Control Displacement Stroke: 150mm
Frequency Range: 1-5Hz Control Software: Self-developed Special Software
Force Waveform: Sine Wave Weight: 420KG
Power Supply: AC220V,15A Dimension: Test Bench:1290*1700*1930mm
High Light:

Bicycle Module Dynamic Fatigue Tester

,

AC220V 15A Dynamic Fatigue Tester

,

5Hz Dynamic Fatigue Tester

Test principles Bicycle Module Dynamic Fatigue Tester

This instrument is manufactured in accordance with ISO 9001 international quality certification standards. The force calibration is in accordance with ISO 7500/1, EN 1002-2, BS 1610, DIN 5122, ASTM E4, JIS B7721/ B7733, CNS 9471/9470, JJG 475-88, ISO 4210 and other national standards. It is suitable for bicycle parts and materials, and the fatigue test of finished bicycle, with complete functions and wide application, and the test is in line with the bicycle test standards of various countries.



Technical parameters

Capacity 5000kgf*2sets
Stroke 150mm
Frequency range 1-5Hz
Force waveform Sine wave
Weight 160KG
Power supply AC220V,15A
Dimension Test bench:1290*1700*1930mm Control cabinet: 600*600*1830mm (L*W*H)
Pitch of joint board Min.height 50mm; Min.stroke 175mm.
Maximum spacing 650mm
Maximum height 1170mm
Minimum height 50mm
Computer hard disk 120G solid state host with dual network ports
IPC Configuration Advantech IPC-310, motherboard ECO-1816







Tools Selection

Transmission crank fatigue test Frame pedal force endurance test Handlebar fatigue test


1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 0





1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 1



1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 2

  Front fork fatigue test Front fork disc brake torque test Saddle fatigue test
  1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 3 1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 4 1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 5

Fixtures:

1 set of head tube uneven force test, 1 set of frame pedal force (pedaling force) test, 1 set of handlebar fatigue test, 1 set of fork fatigue test, 1 set of fork disc brake torque test, 1 set of saddle seat tube fatigue test.

Machine specifications: test range 1120mm, minimum width spacing 175mm, test range 475mm, front and rear test range 1000mm.



1 - 5Hz Bicycle Module Dynamic Fatigue Tester AC220V 15A 6
