High Frequency Fatigue Testing Machine For Bicycle Saddle / Handlebar / Seatpost

Name: High Frequency Fatigue Testing Machine For Bicycle Saddle / Handlebar / Seatpost
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT99
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-BT99
MOQ:	1 Unit
Price:	negotiated
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE , Calibration Certificate

Capacity:

5000kgf*2sets

Resolution:

5‰

Electric Cylinder:

Electric Cylinder Servo Control

Displacement Stroke:

150mm

Frequency Range:

1-5Hz

Control Software:

Self-developed Special Software

Force Waveform:

Sine Wave

Weight:

420KG

Power Supply:

AC220V,15A

Dimension:

Test Bench:1290*1700*1930mm

Packaging Details:

plywood case

Supply Ability:

10 unit / month

Highlight:

High Frequency Fatigue Testing Machine

AC220V 15A Fatigue Testing Machine

Fatigue Testing Machine For Bicycle Saddle

Product Description

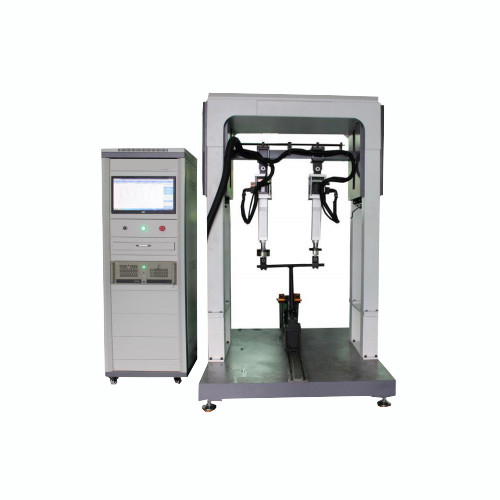

High Frequency Fatigue Testing Machine for bicycle saddle /handlebar /seatpost

Test principles

According to the standard EN14764:2005 , ISO4210-2014, GB3565-2005

Application

This tester is designed to test the fatigue of bicycle handlebars by using double electric cylinders to apply force.

After the test, the damage of the sample will be judged by inspection. The adjusting position locking screw is of quick release type, which is easy to operate, and the adjusting position is adjusted by screw.

Technical parameters

Capacity	5000kgf*2sets
Resolution	5‰
Electric cylinder	Electric cylinder servo control
Displacement stroke	150mm
Frequency range	1-5Hz
Control software	Self-developed special software
Force waveform	Sine wave
Weight	420KG
Power supply	AC220V,15A
Dimension	Test bench:129017001930mm Control cabinet: 6006001830mm (LWH)
