Bike Frame Front Fork Positive Disc Brake Fatigue Tester 220v

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE , Calibration Certificate
Model Number:	SL-BT98

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiated
Packaging Details:	plywood case
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

Brand:	Skyline	Color:	Customized
Frequency Range:	1-6Hz	Name:	Bike Frame Front Fork Positive Disc Brake Fatigue Tester
Keyword:	Disc Brake Fatigue Tester	Power Supply:	220v
Highlight:	Brake Fatigue Tester 220v , Disc Brake Fatigue Tester , 220v Brake Fatigue Tester

Bike Frame front fork positive disc brake fatigue Tester

Name: Bike Frame Front Fork Positive Disc Brake Fatigue Tester 220v
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT98
Price: 4,500.00 USD
Availability: InStock

Test principles

Fork I brake fatigue test for hub brake/disc brake

The fork is clamped in a fixture representing the front tube with a conventional fork assembly, and the axis of the fork riser is kept vertical. A shaft is mounted on the fork and a pivot connected, straight load bearing device is mounted on the shaft as shown in the figure. A force arm of length L is formed (see Table 10) with suitable mounting points for the braking device.

In the wheel plane, the end of the force arm is applied backwards for 60ON repetitive, horizontally oriented dynamic force test cycles. The maximum test frequency is described in ISO 4210 - 3: 2014, 4.5.

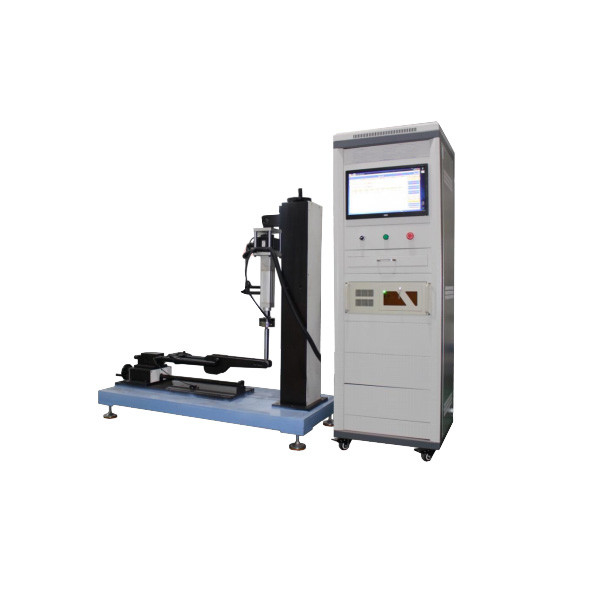

Bike Frame Front Fork Positive Disc Brake Fatigue Tester 220v 0

Minimum test cycle period

Type of bicycle

City Bikes

Children's bikes

Mountain Bikes

Racing

Test Cycles

12000

20000

Tag:

Contact Person: Charlie

Tel: 13310806019

Fax: 86-769-38818154
