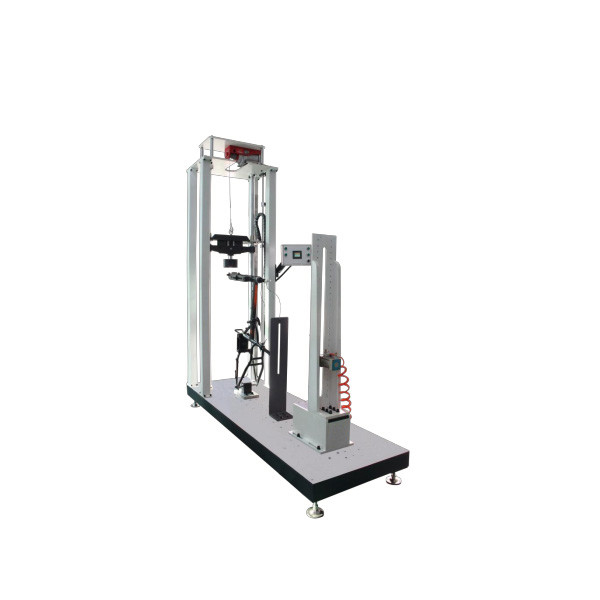

EN Standard Bicycle Front Fork Backward Impact Tester

Test principles

A roller with a mass less than or equal to 1kg is mounted on the fork. The impact surface hardness of the roller is not less than 60HRC.

A weight with a mass of 22.5kg ± 0.1kg is placed on the roller of the fork leg, which is equivalent to applying a force in the plane of the wheel to the direction of travel of the fork. A deflection measuring device is installed under the roller to record the position of the roller in the plane of the wheel, perpendicular to the direction of the fork riser axis and the vertical position of the fork.

The deflection measuring device is removed and the weight is raised above the lightweight roller. It is then released so that it impacts on the roller in the direction of the front deflection. The weight drop height can be referred to the following table. The weight will bounce, which is normal. When the weight stops on the roller, measure the permanent deformation under the roller.

Note: Refer to ISO 4210-3:2014

Technical Parameters
