1 - 10HZ Bicycle Front Fork Vibration Impact Tester EN 14764 / ISO 4210

Name: 1 - 10HZ Bicycle Front Fork Vibration Impact Tester EN 14764 / ISO 4210
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT95
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-BT95
MOQ:	1 Unit
Price:	negotiated
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE , Calibration Certificate

Weight:

160KG

Power Supply:

AC220V,15A

Dimension:

195*45*90 Cm(W*D*H)

Capacity(kgf):

500kgf X 1set

Test Accuracy:

5‰

Stroke Of Electric Cylinder:

150mm

Maximum Working Amplitude:

±100mm

Power:

Electric Cylinder Servo Control System

Frequency Range:

1-10HZ

Cabinet Size:

60*61*181cm

Packaging Details:

plywood case

Supply Ability:

10 unit / month

Highlight:

EN 14764 Impact Tester

Front Fork Vibration Impact Tester

ISO 4210 Impact Tester

Product Description

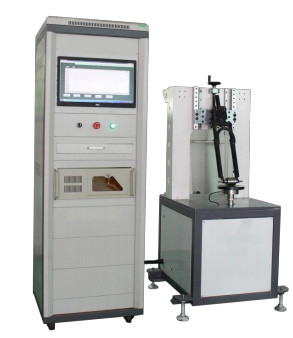

EN 14764/ ISO 4210 Bicycle Front Fork Vibration Impact Tester

EN 14764 Bicycle Frame Front Fork Vibration Impact Tester

Application Of EN 14764 Bicycle Bicycle Front Fork Vibration Impact Tester

This machine is specifically required for bicycle fork spring fatigue and impact damage test: the fork is fixed on the testing machine with a certain frequency and force and impact to observe the destruction of the fork, such as deformation, fracture, etc.

Test principles

According to the standard: EN14764:2005 , ISO4210-2014 GB 17761-2018

Technical Parameters

Capacity(kgf)	500kgf x 1set
Test accuracy	5‰
Stroke of electric cylinder	150mm
Maximum working amplitude	±100mm
Power	Electric cylinder servo control system
Software interface	Self-developed control system
Frequency range	1-10HZ
Dimension	1954590 cm(WDH)
Cabinet size	6061181cm
Weight	160KG
Power supply	AC220V 15A
