Front Fork Front To Back Pouring Heavy Impact Tester EN 14764 / ISO 4210

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE , Calibration Certificate
Model Number:	SL-BT94

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiated
Packaging Details:	plywood case
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

Seat Tube Load:	70Kg-90Kg	Frame Drop Height:	200-300mm
Height Marker:	Can Be Adjusted According To The Height Of The Test Piece Combination Zero Marker	The Upper And Lower Limit:	Moving Device Upper And Lower Limit Protection Switch And Positioning
Falling Trigger:	Adopt Electromagnetic Clutch Device	Weight:	160KG
Power Supply:	AC220V,15A	Dimension:	20007001750mm (WDH)
Highlight:	EN 14764 Impact Tester , Heavy Impact Tester , ISO 4210 Impact Tester

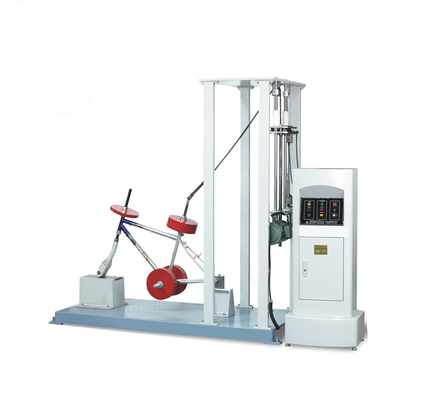

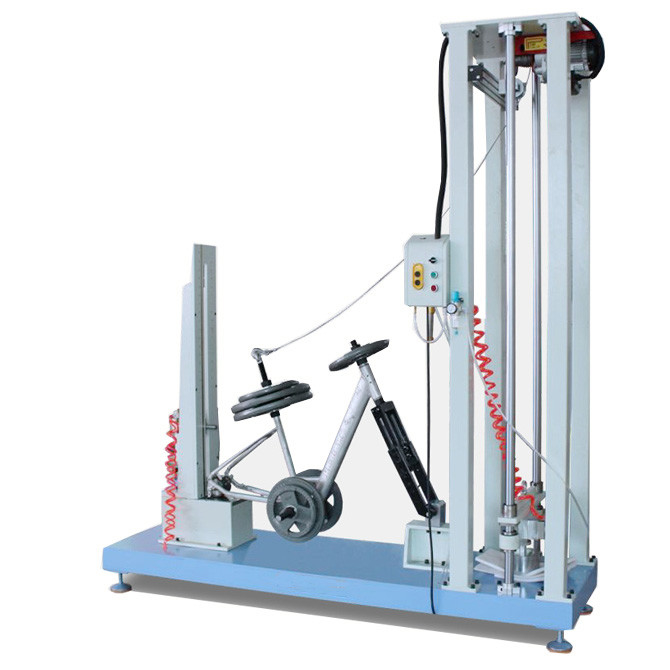

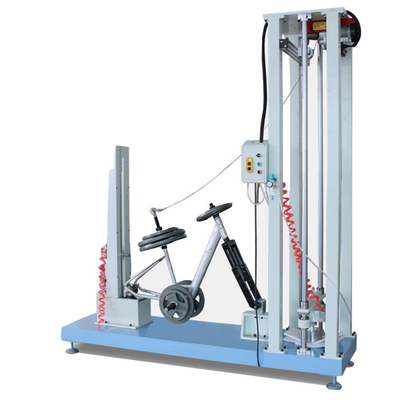

EN 14764/ ISO 4210 Bicycle Frame Front Fork Front to Back Pouring Heavy Impact Tester

Name: Front Fork Front To Back Pouring Heavy Impact Tester EN 14764 / ISO 4210
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-BT94
Price: 4,500.00 USD
Availability: InStock

Application Of EN 14764 Bicycle Frame Front Fork Front to Back Pouring Heavy Impact Tester

The machine should be centered on the rear axle attachment point and can rotate freely in the vertical plane, the front fork is supported on a flat iron, so that the frame is in the normal position, the saddle straight tube is stabilized with a 70kg counterweight fixed to the saddle straight tube, so that its center of gravity falls on the axis of the straight tube and is 75mm higher than the surface of the saddle cross tube, and from the axis of the cross tube, the frame assembly is rotated so that the center of gravity of the counterweight is turned to the vertical of the rear axle. Then let the frame fall forward freely and hit the iron accounted for, to repeat the test to get two impacts.

Test principles

According to the standard EN14764:2005, ISO4210-2014

Technical Parameters

Seat tube load	70Kg-90Kg
Frame drop height	200-300mm
Height marker	can be adjusted according to the height of the test piece combination zero marker
The upper and lower limit	moving device upper and lower limit protection switch and positioning
Falling trigger	Adopt electromagnetic clutch device
Weight	160KG
Power supply	AC220V,15A
Dimension	20007001750mm (WDH)
