| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE , Calibration Certificate |
| Model Number: | SL-BT93 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Maximum Frequency Of The Machine: | Computer Automatic Control, With Displacement, Force, Time And Other Control Methods | Sensor Capacity: | Disc Type Sensor 5000N*1pcs |
|---|---|---|---|
| Load Element Resolution: | 1/10000 | Electric Cylinder: | Electric Cylinder Servo Control |
| Displacement Stroke: | 150mm(±75mm) | Number Of Tests: | 0-999999 Set Arbitrarily |
| Control Method: | Force Fully Closed-loop Control | Control Software: | Self-developed Special Software |
| Display Method: | Computer Control And Monitor | Data Acquisition: | High-speed Acquisition Card |
| Force Acquisition Frequency: | ＞200KHz | Force Waveform: | Sine Wave |
| Automatic Stop: | Automatic Stop When The Force Does Not Reach The Setting, Automatic Stop When The Test Piece Is Damaged | Report Printing Format: | Self-saving Test Results To Make Reports |
| Test Fixture: | 1set | Weight: | 160KG |
| Power Supply: | AC220V,15A | Dimension: | Test Bench:1950*450*900mm |
| High Light: | EN 14764 Dynamic Fatigue Tester,Disc Brake Dynamic Fatigue Tester,Dynamic Fatigue Tester ISO 4210 |
||

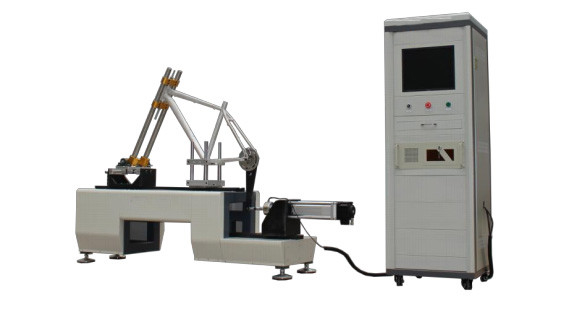

This tester is designed for bicycle frame vertical direction and disc brake fatigue test standard, the bicycle frame is mounted on this tester fixture and then the fatigue force is applied to it with certain frequency, load and number of tests, and the test is judged by checking the damage of the sample after the test.
According to standard EN14764:2005 , ISO4210-2014
| Maximum frequency of the machine | 5Hz |
| Sensor capacity | Disc type sensor 5000N*1pcs |
| Load element resolution | 1/10000 |
| Electric cylinder | Electric cylinder servo control |
| Displacement stroke | 150mm(±75mm) |
| Number of tests | 0-999999 set arbitrarily |
| Control method | force fully closed-loop control |
| Maximum frequency of the machine | computer automatic control, with displacement, force, time and other control methods |
| Control software | Self-developed special software |
| Display method | Computer control and monitor |
| Data acquisition | High-speed acquisition card |
| Force acquisition frequency | ＞200KHz |
| Force waveform | Sine wave |
| Automatic stop | Automatic stop when the force does not reach the setting, automatic stop when the test piece is damaged |
| Report printing format | Self-saving test results to make reports |
| Test fixture | 1set |
| Weight | 160KG |
| Power supply | AC220V,15A |
| Dimension | Test bench:1950*450*900mm Control cabinet: 600*600*1030mm (L*W*H) |
