| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE , Calibration Certificate |
| Model Number: | SL-OA85 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Light Source: | Semiconductor Laser | Sample Viscosity: | ≤350cSt |
|---|---|---|---|
| Flow Rate Range: | 20～60mL/min | Online Detection Pressure: | 0.1~0.6Mpa (optional Pressure Reduction Device Up To 40 MPa) |
| Sample Temperature: | 0～80℃ | Particle Size Range: | 1 ~ 500µm (choose Different Types Of Sensors) |
| Sensitivity: | 1μm Or 4μm (c) | Measurement Standards: | GJB420B, SAE4059E, ISO4406, GB/T14039, GJB420A, NAS1638, GOST17216-71 |
| Counting Volume: | 1～999mL | Counting Accuracy: | ±0.5 Contamination Level |
| Test Time Interva: | 1s～24h | Limit Coincidence Error: | 10000 Grains / ML |
| Data Storage: | Provide 1000 Groups Of Data Storage Space, And Support U Disk Storage | Water Activity Range: | 0 ~ 1aw (±0.05aw) |
| Water Content Range: | 0 ~ 120ppm (±10%) | Interface: | USB Interface |
| Protection Leve: | IP67 (protective Case) | ||
| High Light: | ISO4406 Portable Particle Counter,60mL/min Portable Particle Counter,Oil Analysis Portable Particle Counter |
||

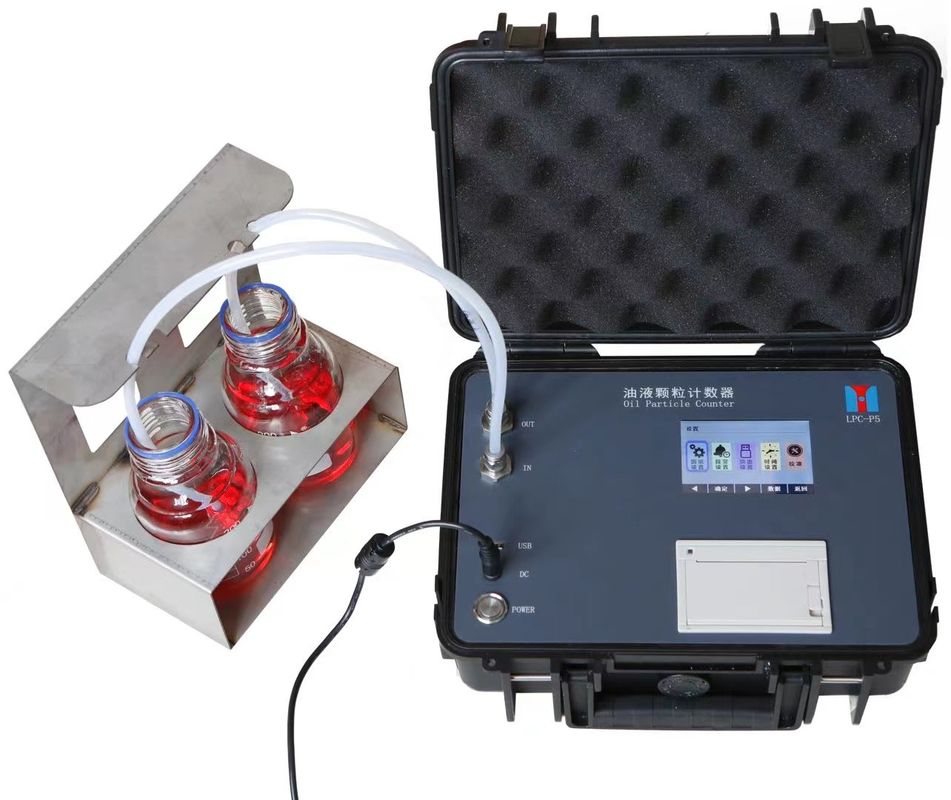

Portable particle counter is designed with the principle of photoresist method (shading method), which is a rapid detection device specially for field oil contamination level. It has the advantages of small size, light weight, fast detection speed, high accuracy, good repeatability, etc. It can work under extremely harsh conditions such as high temperature and high pressure, etc. portable particle counter has built-in micro water sensor and temperature sensor, which can detect the water content and temperature together with the contamination level in the oil. It can be widely used in aerospace, petrochemical, transportation and port, iron and steel metallurgy, automobile manufacturing and other fields for the detection of hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil and other fluids.
1. Adopt the principle of photoresist method (shading method) and use high-precision laser sensor, small size, high precision and stable performance.
2. Suitable for laboratory or field testing, also optional pressure reduction device for online high pressure measurement, to achieve real-time detection of in-use oil particle contamination.
3. Built-in calibration function. It can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards.
4. Built-in data analysis system. It can automatically determine the sample level according to the standard, with automatic data processing and printing function.
5. The alarm level can be set arbitrarily, and the alarm is prompted when the limit value is exceeded to achieve contamination or cleanliness detection.
6. Built-in micro water sensor and temperature sensor.
7. External pressure chamber can be connected to form positive / negative pressure, to achieve the detection of high viscosity samples and sample degassing.
8. With volume flushing and duration flushing mode, convenient for users to use and maintain.
9. Chinese and English input, one key switch.
10. Large storage, can choose to store in the instrument internal or external storage device.
11. Embedded design, high strength shell, easy to carry, suitable for all kinds of engineering machinery.
|
Light source |
semiconductor laser |
|
Sample viscosity |
≤350cS |
|
Flow rate range |
20～60mL/min |
|
Online detection pressure |
0.1~0.6Mpa (optional pressure reduction device up to 40 MPa) |
|
Sample temperature |
0～80℃ |
|
Particle size range |
1 ~ 500µm (choose different types of sensors) |
|
Sensitivity |
1μm or 4μm (c) |
|
Measurement standards |
GJB420B, SAE4059E, ISO4406, GB/T14039, GJB420A, NAS1638, GOST17216-71 |
|
Counting volume |
1～999mL |
|
Test time interval |
1s～24h |
|
Counting accuracy |
±0.5 contamination level |
|
Limit coincidence error |
10000 grains / mL |
|
Data storage |
provide 1000 groups of data storage space, and support U disk storage |
|
Water activity range |
0 ~ 1aw (±0.05aw) |
|
Water content range |
0 ~ 120ppm (±10%) |
|
Interface |
USB interface |
|
Protection level |
IP67 (protective case) |
