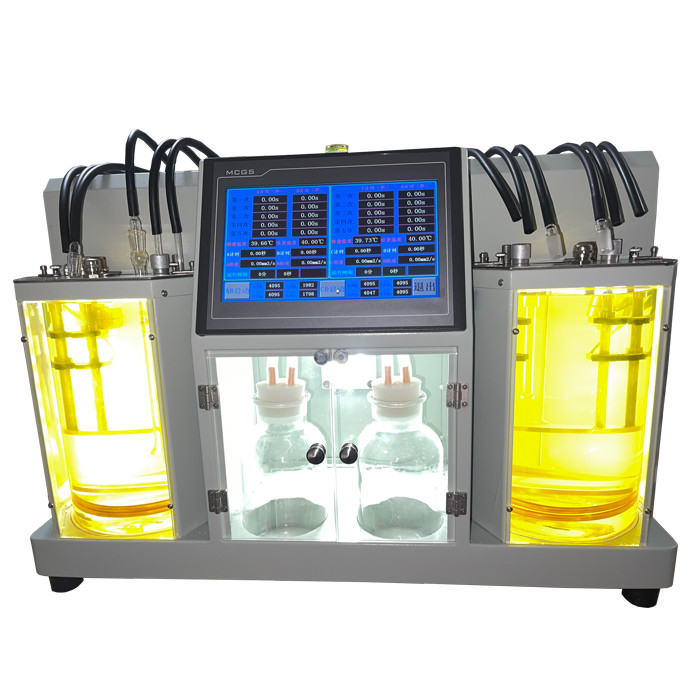

ASTM D445 Kinematic Viscosity Test Equipment/Oil Analysis

Product introduction Of OiL Viscosity Tester

Automatic kinematic viscosity tester in accordance with international standards ASTM D445 design and production. Instrument tester adopts a modular design, the detection part of the use of advanced sensors and high-precision AD conversion circuit, the main control part of the use of a number of industrial applications, high-reliability 16-bit RISC structure, ultra-low-power microprocessors, good and reliable communication will be composed of various modules of a unified, reliable measurement and control platform. Program, using high-quality, the most simple modular program design, and organic combination with the hardware, so that the motion viscosity determination process of fully automatic temperature rise and constant temperature, liquid level detection, timing, cleaning viscosity tube, printing and other all the work is fully automated to complete the operation of the results of a key.

Characteristic

1.The instrument mainly consists of constant temperature bath, stirring device, capillary clip, electrical control unit, heating system, illumination and water-cooled tube.

2.Stainless steel constant temperature bath, square cylinder, with transparent observation winder in front, no viewing angle error, convenient for observing the viscometer.

3.SCM high precision temperature control circuit, digital display of temperature, display temperature can reach 0.01.

4.With function of capillary constants storage, can store constants of 4 pieces capillary one time. Data won't disappear when there is power outage.

5.With function of temperature revise. The modification value won't disappear when power outage occurs.

6.Sample flow timing. After stop, it automatically calculate and display the flow time and kinematic viscosity.

7.Fully automatic testing process.

Applicable standards

1. Good man-machine interface, easy to operate
2. One key to complete the sampling, timing, calculation, printing, cleaning and drying of the whole process of kinematic viscosity.
3.16 groups of preset parameters for selection.
4. Modify the preset parameters to meet special requirements.
5. Pure imported optical fiber detection is not subject to indoor light, light interference
6. Fiber detection position can be adjusted, flexible and free.
7. All PLC control, high stability and reliability.
8. Fully automatic storage of 100 test results, and view or print at any time
9. Detection process to comply with standard regulations, reliable data
10. Long-term continuous work, very low failure rate
