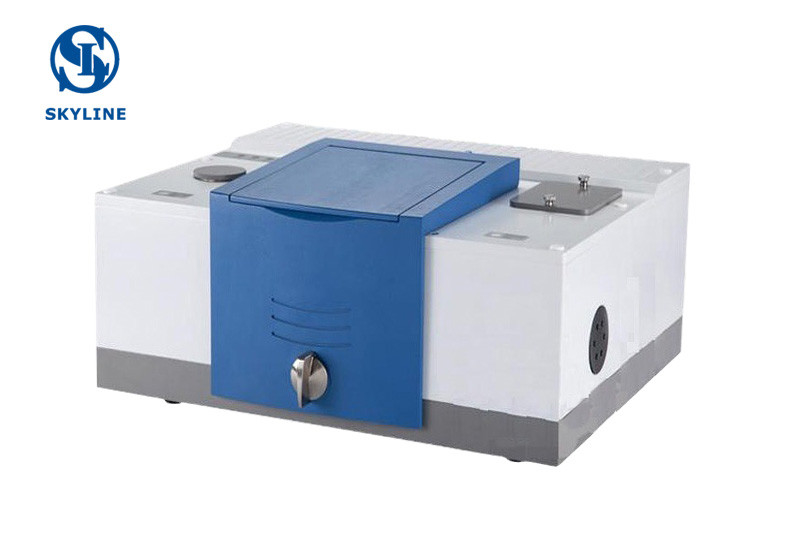

Fourier Transform Infrared Spectrometer SL-OA76

Fourier Transform Infrared Spectrometer SL-OA76

  • Fourier Transform Infrared Spectrometer SL-OA76
Fourier Transform Infrared Spectrometer SL-OA76
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-OA76
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
Spectral Range: 7800-350 Cm-1 Detector: DTGS Detector
Resolution: Better Than 1.0 Cm-1, Continuously Adjustable. 100% τ Line Tilt Range: Better Than 0.5τ% (2200 ~ 1900cm-1)
Signal To Noise Ratio: 30000: 1 (P-P Value, 4cm-1, One Minute Scan) Beam Splitter: Imported KBr Substrate With Germanium Plating
Light Source: Imported High-energy, High-efficiency, Long-life Light Source With Automatic Sleep Function To Increase The Life Of The Light Source. Interferometer: Michelson Interferometer With 30 Degree Incident Angle
Receiver: Imported High-sensitivity DLATGS Receiver With Moisture-proof Membrane Data Transmission Interface: USB2.0
Supported Systems: Windows XP, Windows Vista, Windows 7, Windows 8
High Light:

Synthetic Gemstone Infrared Spectrometer

,

Fourier Transform Infrared Spectrometer

,

DTGS Detector Infrared Spectrometer

SL-OA76 Fourier Transform Infrared Spectrometer

Fourier Transform Infrared Spectrometer SL-OA76 0



Product Description:

Fourier Transform Infrared Spectrometer (abbreviated as FTIR Spectrometer), abbreviated as Fourier Infrared Spectrometer, can be used for qualitative and quantitative analysis of samples. It is widely used in medicine and chemical industry, geology, petroleum, coal, environmental protection, Customs, gem identification, criminal investigation identification and other fields.



LiCAN 9 Fourier infrared spectrometer, introduce  foreign advanced technology ,and independent research and development of a cost-effective meticulously Fourier transform infrared spectrometer, which can be widely used in pharmaceutical, chemical, food, petrochemical, jewelry, polymers, semiconductors, and materials science, and other industries, expand function is strong, can connect all kinds of conventional transmission, diffuse, ATR attenuated total reflection, non-contact accessories such as external reflection, both used in colleges and universities, research institutions, and is used in the industrial applications of QA/QC analysis, LiCAN 9 will be your perfect choice.

Technical Features:

1. Intelligent human-computer interaction design, whether you have been used about Fourier infrared software or not, can be quickly and skillfully operated;

2, equipped with intelligent humidity automatic remind device, reduce the workload of operators of equipment maintenance, electronic humidity digital visual display function, automatically remind user to replace desiccant, solve in the course of using the infrared biggest hidden danger;

3, interferometer: the latest maglev plane mirror electromagnetic driver, with 3d laser control, continuous automatic adjustment and DSP digital control, automatic optimization system energy, without manual adjustment.

4.Beam splitter: imported KBr substrate plating germanium.

5.Receiver: imported high performance DLATGS detector with moisture-proof film, which can be automatically identified by the instrument, is superior to the 24-bit high precision A/D converter of 500KHz to ensure fast and accurate collection of spectral data.

6. Data transmission interface: standard USB2.0 high-speed two-way communication

7. Support system: Windows XP, Windows Vista, Windows 7, Windows 8

8. Stronger software function: with self-diagnosis function, the instrument state and test parameters are ensured to be correct; Strong data processing and analysis software, easy to handle peak marking, peak area integration, baseline calibration and other operations; Infrared software: Chinese language 32 bit processing software. Including: infrared control, spectral processing, data conversion, multicomponent quantitative and other operating software; H2O/CO2 automatic compensation software, self-inspection software; Macro software;

9. Hardware real-time online diagnosis: hardware real-time online diagnosis: continuously and online monitoring of all optical components (laser, light source, detector, beam splitter); Ensure the instrument is always in the best working condition. The software H2O/CO2 automatic compensation software will automatically remove water and carbon dioxide from the air.

10. The whole sealing and drying design of the optical platform improves the transmission efficiency of light, and has excellent moisture-proof effect. It can adapt to various operating environments and reduce the influence of air absorption.

11. LiCAN 9 Fourier infrared spectrometer with analysis software and can assemble standard transmission accessories, such as sample preparation accessories for liquid pools or KBr pressure plates. The sample warehouse can facilitate the installation of ATR  accessories, accelerate sample preparation time, shorten cleaning time, and expand the function of the instrument.

12. It is equipped with a professional data analysis system of infrared spectrogram, automatic spectrogram retrieval and analysis of unknown samples, and can establish its own spectrogram database.

13. Light source: long-life, high-energy air-cooled medium infrared light source, pre-alignment, accurate positioning, external wireless access to the light source without opening the optical cover. No tool adjustment, 3 seconds to achieve stability. Exclusive with automatic sleep function, improve the life of light source.

14. Permanent collimation path: the optical platform adopts the design of permanent collimation path. All components adopt pin positioning mode, namely plug and play, which allows users to install and easily replace optical components. The optical mirror uses the whole cutting diamond.



Technical Parameters

Spectral range

 7800 ~ 350 cm-1

Resolution

 better than 1.0 cm-1, continuously adjustable.

100% τ line tilt range

 better than 0.5τ% (2200 ~ 1900cm-1)

Signal to noise ratio

 30000: 1 (P-P value, 4cm-1, one minute scan)

Beam splitter

 imported KBr substrate with germanium plating

Light source

 Imported high-energy, high-efficiency, long-life light source with automatic sleep function to increase the life of the light source.

Interferometer

 Michelson interferometer with 30 degree incident angle

Receiver

 Imported high-sensitivity DLATGS receiver with moisture-proof membrane

Data transmission interface

 USB2.0

Supported systems

 Windows XP, Windows Vista, Windows 7, Windows 8
