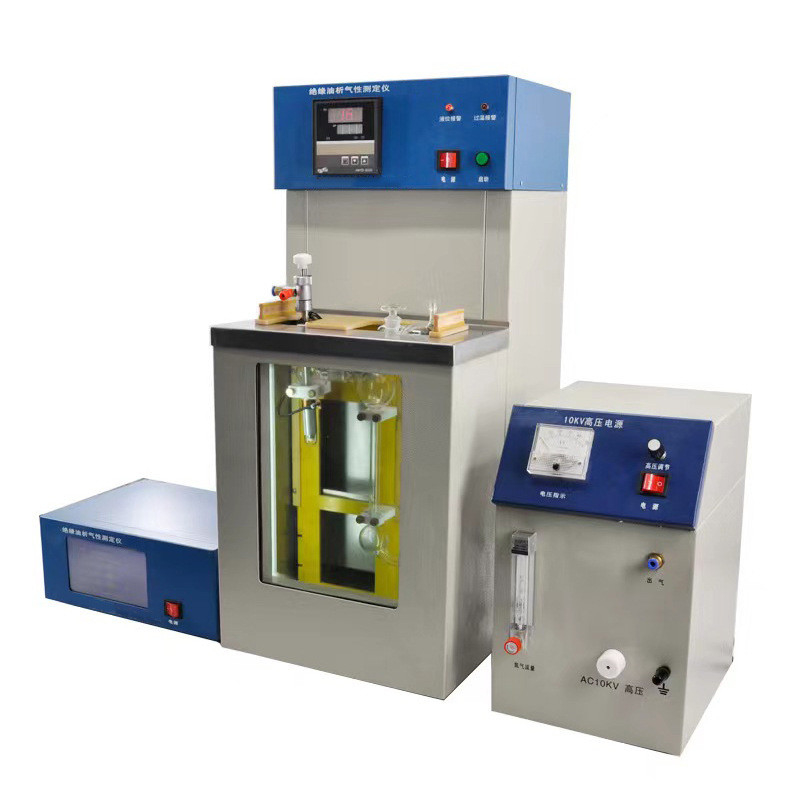

Fully Automatic Insulating Oil Gas Separation Tester 1200rpm

Fully Automatic Insulating Oil Gas Separation Tester 1200rpm

  • Fully Automatic Insulating Oil Gas Separation Tester 1200rpm
Fully Automatic Insulating Oil Gas Separation Tester 1200rpm
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-OA61
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
Constant Temperature: 80℃ Accuracy: ±0.2
Resolution: 1S Test Voltage: 10.00KV
Time Measurement: 5 MIN; 10 MIN; 50MIN; 60MIN; 120MIN Heater: 800W×2
Stirring Motor: 25W Stirring Speed: 1200rpm
Power Supply Voltage: AC220V±10% 50(60)Hz±1Hz Main Unit Dimensions: 320×700×405 (mm) (width×height×depth)
Dimensions Of Auxiliary Machine: 200×400×280(mm) (width×height×depth) (high Voltage Box) Weight: 35Kg
Temperature: 25℃±10℃ Relative Humidity: <85%
High Light:

1200rpm Automatic Insulating


Auto Insulating Oil Gas Separation Tester


Oil Gas Separation Testing Equipment

SL-OA61 Automatic Insulating Oil Gas Separation Tester


Product Description:

The fully automatic insulating oil gas separation tester uses infrared optical fiber optic cable sensing technology to detect the flowing liquid level to ensure the accuracy and precision of the measurement. It is characterized by reliable operation, easy operation and high precision. It is widely used in petrochemical, electric power, railway, scientific research and other departments. It is an excellent equipment for oil product analysis and quality inspection.


Technical Features:

The MCS-51 series single-chip microcomputer is used as the system control core, the 7-inch 256-color intelligent color screen display and the configuration of the screen touch buttons ensure the advanced nature and reliability of the whole machine.

Chinese LCD display, man-machine menu dialogue, wizard-style operation.

Automatic constant temperature oil bath at 80°C, automatic hydrogen filling, automatic opening and closing of the straight-through valve.

Automatically measure the amount of gas evolution for 10 minutes and 50 minutes of electricity, and automatically calculate the gas evolution G value of the sample; G=(B60-B10)×1000/50; (see GB/T11142-89 standard).


Fully Automatic Insulating Oil Gas Separation Tester 1200rpm 0

Technical Parameters:

Constant temperature 80℃
Accuracy ±0.3℃
Resolution 0.1°C
Test voltage 10.00KV
Accuracy ±0.2KV
Resolution 0.01KV
Time measurement 5 MIN; 10 MIN; 50MIN; 60MIN; 120MIN
Accuracy ±0.2
Resolution 1S
Heater 800W×2
Stirring motor 25W
Stirring speed 1200 rpm
Power supply voltage AC220V±10% 50(60)Hz±1Hz
Main unit dimensions 320×700×405 (mm) (width×height×depth)
Dimensions of auxiliary machine 200×400×280(mm) (width×height×depth) (high voltage box)
Weight 35Kg
Temperature 25℃±10℃
Relative humidity <85%
