Multifunctional Shaker Automatic Degassing Oscillator Tester Electric

Product Details:

Place of Origin:	Dongguan,Guangdong
Brand Name:	SKYLINE
Certification:	calibration certificate
Model Number:	SL-OA31

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Packaging
Delivery Time:	5-8working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets/month

Contact Now

Detailed Product Description

Temperature Control Room Temperature:	Room Temperature ~100℃	Temperature Control Accuracy Room Temperature:	～ 50 ℃± 0.2 ℃; 50℃～100℃±0.3℃
Oscillation Frequency:	275 ± 3 Times/minute	Oscillation Amplitude:	35mm
Number Of Samples Per Oscillation:	8 100ml Syringes, 4 250ml Triangular Bottles	Set The Oscillation And Static Time:	Within 0~99 Minutes At Will ± 10 Seconds; Any Set Temperature Within 0~99 ℃
Noise:	<40dB	Power Supply Voltage AC:	220V ± 10%, 50Hz ± 10%
Power:	800W	Display Mode:	LCD
Ambient Temperature:	5~40 ℃	Relative Humidity:	≤ 85%
Overall Dimension:	500mm × 350mm × 370mm	Weight:	30.5kg
Highlight:	Multifunction Degassing Oscillator , Automatic Degassing Oscillator Tester , Degassing Oscillator Lab Testing Equipment

Electric Constant Temperature Oscillating And Degassing Multifunctional Shaker Automatic Degassing Oscillator Tester

Name: Multifunctional Shaker Automatic Degassing Oscillator Tester Electric
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA31
Price: 4,500.00 USD
Availability: InStock

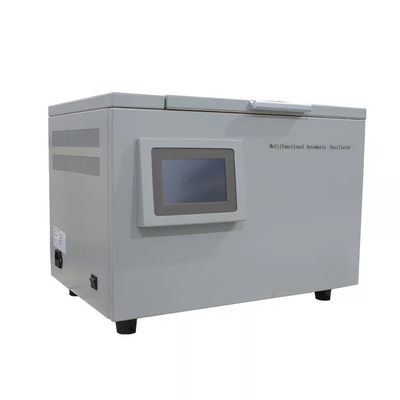

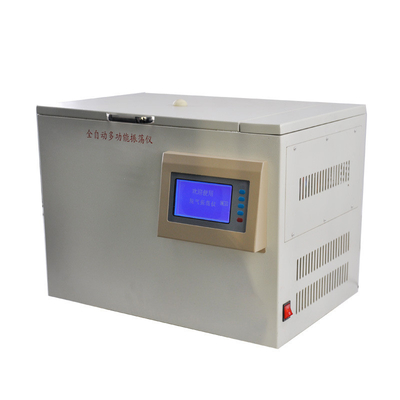

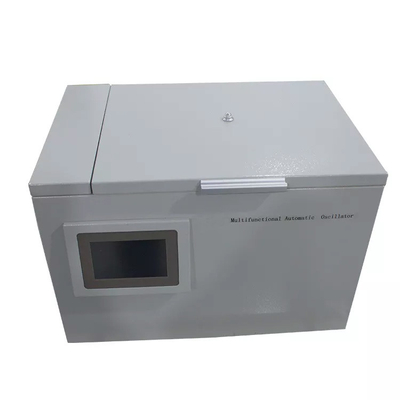

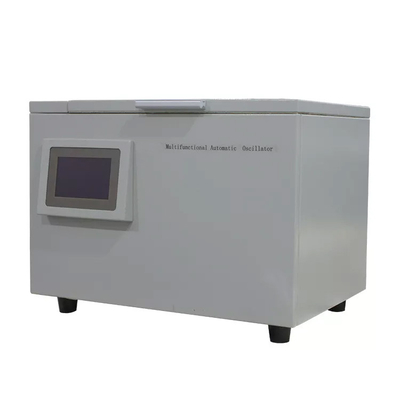

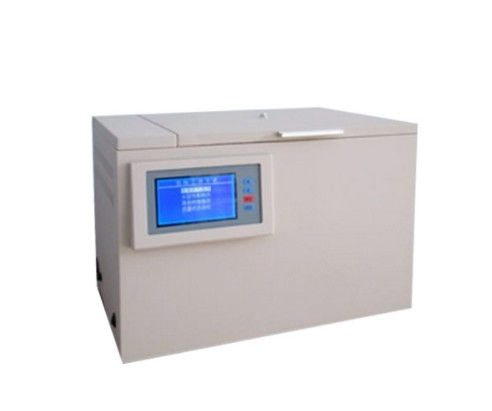

SL-OA31 Multi-function Degassing Oscillator

Product description

The multi-function oscillator meets the GB/T17623 and DL/T703 standards. It is mainly used for vibration degassing in the gas chromatography detection of insulating oil, constant temperature, timing and oscillation in the determination of water-soluble acid in oil, and also for constant temperature and timing oscillation in the tests of scientific research and production units such as petroleum, chemical industry, medicine and biochemistry.

Technical features

Double CPU microcomputer control

Automatically stop heating when the temperature exceeds the value

Instrument fault self diagnosis

LCD display, no identification button

Fast constant temperature, good temperature control, reasonable structure, compact size

Technical parameters

Temperature control room temperature	～ 100 ℃
Temperature control accuracy Room temperature	～ 50 ℃± 0.2 ℃; 50℃～100℃±0.3℃
Oscillation frequency	275 ± 3 times/minute
Oscillation amplitude	35mm
Number of samples per oscillation	8 100ml syringes, 4 250ml triangular bottles
Set the oscillation and static time	within 0~99 minutes at will ± 10 seconds; Any set temperature within 0~99 ℃
Noise	<40dB
Power supply voltage AC	220V ± 10%, 50Hz ± 10%
Power	800W
Display mode	LCD
Ambient temperature	5~40 ℃
Relative humidity	≤ 85%
