Product Details:

Place of Origin:	Dongguan,Guangdong
Brand Name:	SKYLINE
Certification:	calibration certificate
Model Number:	SL-OA28

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Packaging
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets/per month

Contact Now

Detailed Product Description

Power Supply Voltage:	AC 220V ± 10%	Power Frequency:	50Hz/60Hz ± 1%
Measuring Range:	Capacitance 5pF ～ 200pF	Relative Permittivity:	0.001
Dielectric Loss Factor:	0.00001	DC Resistivity:	± 10% Reading
Measurement Accuracy:	Capacitance ± (1% Reading+0.5pF)	Resolution:	Capacitance 0.01pF
Temperature Measurement Range:	0~120 ℃	Temperature Measurement Error:	± 0.5 ℃
AC Test Voltage:	200-2200V, Continuously Adjustable, Frequency 50Hz	DC Test Voltage:	0~500V, Continuously Adjustable
Power Consumption:	100W
Highlight:	oil analysis lab equipment , oil analysis equipment

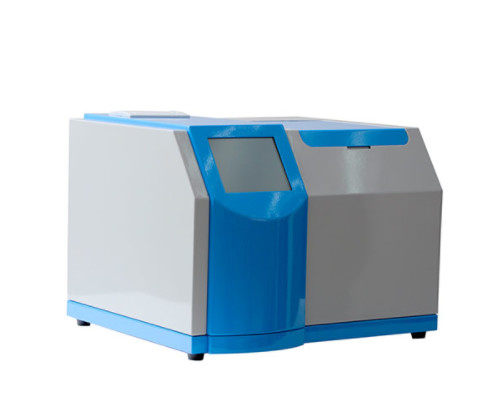

SL-OA28 Dielectric Loss and Resistivity Tester for Insulating Oil

Name: Electric Transformer Oil Tan Delta Testing Loss Tester Tan Delta and Resistivity Test Equipment oil Tan Delta Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA28
Price: 4,500.00 USD
Availability: InStock

Product description

The fully automatic dielectric loss and resistivity tester for insulating oil is designed and manufactured according to GB/T5654-2007 Measurement of Relative Permittivity, Dielectric Loss Factor and DC Resistivity of Liquid Insulating Materials. Used for measuring dielectric loss factor and DC resistivity of insulating oil and other liquid insulating media.

Integrated structure. The main components, such as dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high resistance meter, DC high voltage source, are integrated internally. The instrument is equipped with a 5.7 inch TFT pure color LCD touch display with a large screen and a Chinese menu. The test results can be automatically stored and printed out. The operators can skillfully use them without professional training

Technical parameters

Power supply voltage	AC 220V ± 10%
Power frequency	50Hz/60Hz ± 1%
Measuring range	capacitance 5pF ～ 200pF
Relative permittivity	1.000-30.000
Dielectric loss factor	0.00001 ～ 100
DC resistivity	2.5 M Ω m ～ 20 T Ω m
Measurement accuracy	capacitance ± (1% reading+0.5pF)
Relative permittivity	± 1% reading
Dielectric loss factor	± (1% reading+0.0001)
DC resistivity	± 10% reading
Resolution	capacitance 0.01pF
Relative permittivity	0.001
Dielectric loss factor	0.00001
Temperature measurement range	0~120 ℃
Temperature measurement error	± 0.5 ℃
AC test voltage	200-2200V, continuously adjustable, frequency 50Hz
DC test voltage	0~500V, continuously adjustable
Power consumption	100W
Overall dimension	450mm × 410mm × 320mm
Total weight	25Kg
