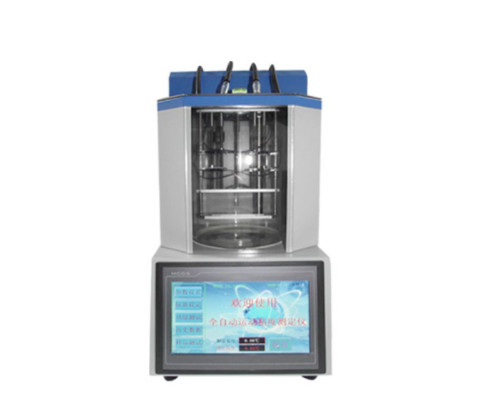

Oil Analysis Testing Equipment Automatically Kinematic Viscosity Meter for Petroleum product
Description Of Automatically Kinematic Viscosity
The fully automatic kinematic viscosity tester is designed and produced according to the national standard GB/T265.
The instrument tester adopts modular design, the detection part adopts advanced sensors and high-precision AD conversion circuit, and the main control part adopts multiple industrial applications, highly reliable 16 bit RISC structure, and ultra-low power consumption microprocessor. Good and reliable communication makes each module into a unified and reliable measurement and control platform. The program adopts high-quality and simplest modular program design, and is organically combined with hardware, so that the full automatic temperature rise and constant temperature, liquid level detection, timing, viscosity tube cleaning, printing and other work in the process of kinematic viscosity measurement can be completed automatically, and the operation mode of "one click results" can be achieved.
16 groups of measurement parameters are preset for the automatic kinematic viscosity tester, which can be selected when testing different samples for ease of testing operation. At the same time, the preset parameters can be modified to meet the requirements of measuring special samples.
Feature
This instrument adopts the optical fiber conduction detection method, which is by no means the same as the common photoelectric tube detection method of other manufacturers
Good man-machine interface, easy to operate
One click completes the whole process of sampling, timing, calculation, printing, cleaning and drying of kinematic viscosity.
16 sets of preset parameters for selection
Preset parameters can be modified to meet special requirements
Pure imported optical fiber detection is not interfered by indoor light and light
The optical fiber detection position is adjustable and flexible
All PLC control, high stability and reliability
Fully automatically store 100 test results, and view or print them at any time
The testing process complies with the standard and the data is reliable
Technical parameters
Temperature range: room temperature~+100 ° C, ± 0.01 ° C.
Temperature sensor: Pt 100 stainless steel probe imported from Germany, with built-in temperature correction, and reliable detection results.
Heating mode: electric heating unit, the maximum heating power is 1200 W.
Liquid level detection: infrared photoelectric detection.
Display: 10 inch industrial color touch screen.
Temperature correction: 0-100 can be adjusted at will.
Data storage: 100 groups of test results.
Power supply: AC220V 50Hz. Maximum power 1500 W
Operating ambient temperature: 10~40 ℃
Storage ambient temperature: 0~50 ℃
Instrument structure
Mainly consists of heating tube, capillary tube, test stand, stirring motor, chassis thermostatic bathtub, lighting, electrical control part, LCD screen, keyboard, printer and so on.
