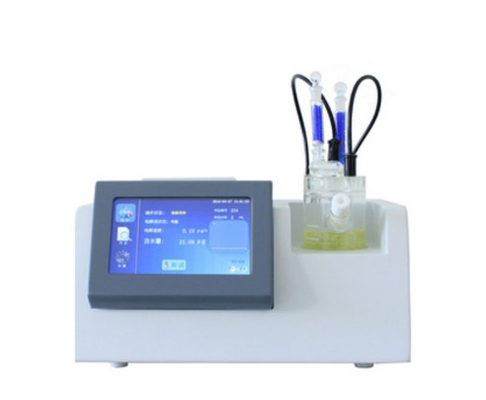

Automatic Oil Moisture Analyzer Coulometric Karl Fischer Titrator

Automatic Oil Moisture Analyzer Coulometric Karl Fischer Titrator

  • Automatic Oil Moisture Analyzer Coulometric Karl Fischer Titrator
Automatic Oil Moisture Analyzer Coulometric Karl Fischer Titrator
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE , Calibration Certificate
Model Number: SL-0A17
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: negotiated
Packaging Details: plywood case
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 unit / month
Contact Now
Detailed Product Description
Name: Coulometric Karl Fischer Titrator Standard: ASTM D1533, ASTM D6304
Measuring Range: 3 μ G~100mg (water) Resolution: 0.1ug
Precision: 3 μ G Water ± 20%, 10 μ G Water ± 10%, 100 μ G Water ± 5%, 100 μ ± 0.5% Above G Water (excluding Injection Error) Power Supply Voltage: AC 220V ± 10% 50Hz ± 10%
Keywords: Oil Analysis Equipment Printer Thermal Type: 36 Characters, Chinese Character Output
Ambient Temperature: 5 ℃~ 40 ℃ Power Consumption: <40W
Overall Dimension: 300mm × 290mm × 200mm Weight: 3.7kg
High Light:

oil analysis lab equipment


oil analysis equipment

ASTM D1533, ASTM D6304 Automatic Oil Moisture Analyzer Umidade Coulometric Karl Fischer Titrator

Automatic Oil Moisture Analyzer Coulometric Karl Fischer Titrator 0

Product Description Of Coulometric Karl Fischer Titrator

The automatic micro moisture analyzer meets the requirements of GB/T7600, GB/T6283, SH/T0246, SH/T0255 and other methods and standards. Karl Fischer (Coulomb) method was used to determine the content of trace water in liquids with different properties. It has the advantages of high measurement accuracy, fast speed, stable and reliable measurement data, and is widely used in petroleum, chemical, electric power, environmental protection, medicine and other departments. It can quickly determine the water content of chemical, petroleum, pharmaceutical, pesticide and other products such as alcohols, oils, lipids, ethers, esters, acids, alkanes, benzene, amines, organic solvents, pesticides, phenols, pharmaceutical raw materials, etc.


Function characteristics

The 64 bit embedded microprocessor is used as the main control core and embedded in the mini operating system.

Constant current detection, high precision, fast measurement speed, background compensation function, stable and reliable.

Double circuit balanced titration, with smaller test result error and higher sensitivity.

Electrolytic cell adopts new waterproof sealing design, with short balancing time and longer electrolyte service time.

The host is equipped with automatic discharge and filling functions, greatly improving the working environment.

Real time electrolysis curve graph to observe reagent status at any time.

Large screen touch LCD display, simple operation and friendly interface.

Full number keyboard, supporting 6 calculation formulas, convenient and fast data calculation.

The whole machine adopts engineering plastic shell, which is light and beautiful.

Built in large capacity storage, more convenient for recording and querying measurement data.

Technical parameters

Electrolytic current 0 ~ 400mA
Measuring range 3 μ G~100mg (water)
Resolution 0.1 μ g
Precision 3 μ G water ± 20%, 10 μ G water ± 10%, 100 μ G water ± 5%, 100 μ ± 0.5% above g water (excluding injection error)
Display mode Chinese LCD
Printer thermal type 36 characters, Chinese character output
Ambient temperature 5 ℃~ 40 ℃
Power supply voltage AC 220V ± 10% 50Hz ± 10%
Power consumption <40W
Overall dimension 300mm × 290mm × 200mm
Weight 3.7kg
