Full Automatic Closed Cup Flash Point Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE , Calibration Certificate
Model Number:	SL-OA10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiated
Packaging Details:	plywood case
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Closed Cup Flash Point Tester	Standard:	ASTM D93
Working Power Supply:	AC (220 ± 10%) V, 50Hz	Temperature Measurement Range:	Room Temperature~400 ℃;Temperature Display Unit0.1 ℃
Repeatability:	≤ 8 ℃ (flash Point And Fire Point)	Reproducibility:	≤ 17 ℃ (flash Point), ≤ 14 ℃ (fire Point)
Heating Rate:	In Accordance With GB/T3536-2008 Standard	Ignition Mode:	Gas Flame, Electronic Ignition, Optional
Ambient Temperature:	(10~40) ℃	Relative Humidity:	≤ 80%
Power Consumption Of The Whole Machine:	No More Than 500W	Boundary Dimension:	(when The Lifting Arm Is Not Lifted) 520mm × 360㎜ × 310 ㎜ (long × Wide × High); (When The Lifting Arm Is Lifted) 520mm × 360㎜ × 420 ㎜ (long × Wide × High)
Highlight:	oil analysis lab equipment , oil analysis equipment

ASTM D93 Flash Point Oil Analysis Equipment Closed Cup Flash Point Tester

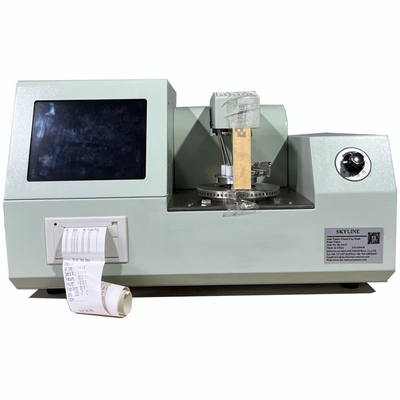

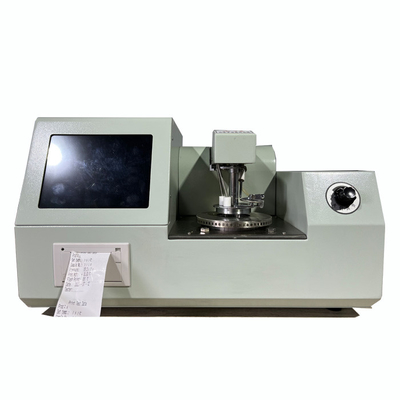

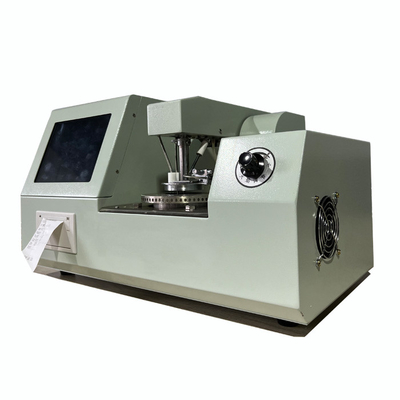

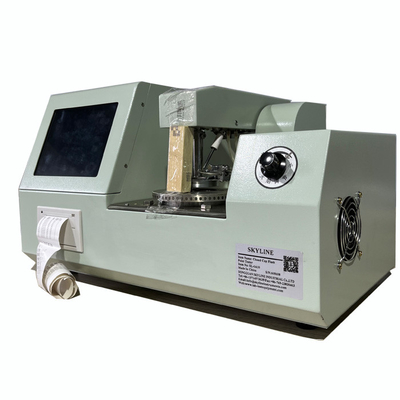

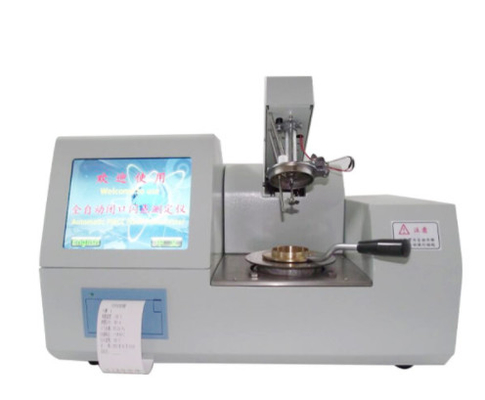

Name: Full Automatic Closed Cup Flash Point Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA10
Price: 4,500.00 USD
Availability: InStock

Full Automatic Closed Cup Flash Point Tester 0

Description Of Closed Cup Flash Point Tester

The fully automatic open Cup flash point tester is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3536-2008 Determination of Flash Point and Ignition Point of Petroleum Products Cleveland Open Cup Method. It is applicable to the determination of the flash point and ignition point of petroleum products other than fuel oil, whose open cup flash point is higher than 79 ℃ according to the method specified in this standard.

This instrument is a fully automatic open flash point tester, which is an ideal substitute for similar imported instruments. It can be widely used in railway, aviation, electric power, oil industry and scientific research departments.

Features

1. It adopts 8-inch true color LCD, touch screen and Chinese man-machine dialogue interface. It has prompt menu and guided input mode for expected flash point, sample label, atmospheric pressure, test date and other parameters.

2. The function curve of temperature rise and test time is simulated and tracked, with Chinese misoperation software prompt modification function, test date, test time and other parameters prompt function.

3. Equipped with a standard 232 interface or USB interface to connect with the computer to automatically upload data. It can be connected to the LIMIS system.

4. 120 groups of data can be stored, which can be connected with the computer to store data in large capacity and for a long time.

5. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

6. Differential detection, automatic correction of system deviation.

7. The data scanning, detection and printing are completed automatically, and the test arm is raised and lowered automatically.

8. Automatic air cooling

Specifications

Working power supply	AC (220 ± 10%) V, 50Hz
Temperature measurement range	room temperature~400 ℃;Temperature display unit0.1 ℃
Repeatability	≤ 8 ℃ (flash point and fire point)
Reproducibility	≤ 17 ℃ (flash point), ≤ 14 ℃ (fire point)
Heating rate	in accordance with GB/T3536-2008 standard
Ignition mode	gas flame, electronic ignition, optional
Ambient temperature	(10~40) ℃
Relative humidity	≤ 80%
Power consumption of the whole machine	no more than 500W
Boundary dimension	(when the lifting arm is not lifted) 520mm × 360㎜ × 310 ㎜ (long × wide × High); (When the lifting arm is lifted) 520mm × 360㎜ × 420 ㎜ (long × wide × High)
