70KN Box Compression Testing Machine PLC / Computer Control

70KN Box Compression Testing Machine PLC / Computer Control

  • 70KN Box Compression Testing Machine PLC / Computer Control
70KN Box Compression Testing Machine PLC / Computer Control
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-TL01
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
Name: Intelligent Compressive Strength Testing Machine Pressure Plate Size: 1500×1500×1500mm
Force Resolution: 1/100000 Display Resolution: 0.001N
Test Speed: 0.1~500mm/min Power Supply: 1∮, 220V/50Hz
Approx. Product Size: 210x150x240cm Keyword: Box Compression Testing Machine
Brand: SKYLINE Capacity: 7T
High Light:

70KN Box Compression Testing Machine

,

PLC Control Box Compression Testing Machine

,

70KN Box Compressive Strength Tester

pLC/Computer Control 70KN Box Compression Testing Machine/ Compressive Strength Tester

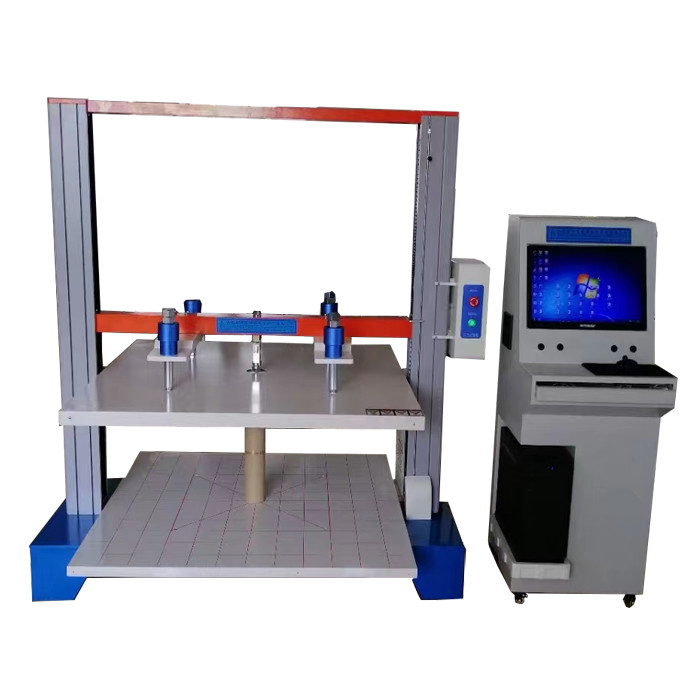

                 70KN Box Compression Testing Machine PLC / Computer Control 0

Product Description Of Compressive Strength Tester

The computer system packaging container compression testing machine is the latest fully computerized packaging container compression testing machine designed and developed by the company:

1. The structure of the machine adopts high-precision, low-resistance, non-gap, double-ball screw and guide column built-in aluminum extrusion sealing plate treated with advanced baking paint, which improves the load efficiency and structural rigidity;

2. The control system adopts Panasonic digital AC server to control the AC motor with high response frequency, which ensures high efficiency of the transmission system, stable transmission, low noise, and speed accuracy can be controlled within ±0.2%;

3. The control speed is stable and easy to operate. It adopts precision twin-screw and screw dust-proof telescopic device. The additional accessories can be used as a tension machine. The results can be printed by a printer, and the surface of the machine is treated with advanced baking paint, which is convenient and simple to maintain.

4. The product performance is stable and reliable, the measurement accuracy is high, the test software is powerful, and the operation is simple and easy to understand.



Product features:

The computer system packaging container compression testing machine is the latest fully computerized packaging container compression testing machine designed and developed by the company:

1. The structure of the machine adopts high-precision, low-resistance, non-gap, double-ball screw and guide column built-in aluminum extrusion sealing plate treated with advanced baking paint, which improves the load efficiency and structural rigidity;

2. The control system adopts Panasonic digital AC server to control the AC motor with high response frequency, which ensures high efficiency of the transmission system, stable transmission, low noise, and speed accuracy can be controlled within ±0.2%;

3. The control speed is stable and easy to operate. It adopts precision twin-screw and screw dust-proof telescopic device. The additional accessories can be used as a tension machine. The results can be printed by a printer, and the surface of the machine is treated with advanced baking paint, which is convenient and simple to maintain.

4. The product performance is stable and reliable, the measurement accuracy is high, the test software is powerful, and the operation is simple and easy to understand.

Conform to the standard:

GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642 GB/T16491,TAPPI-T804,JIS-Z0212

Technical parameters:

Capacity 7T
Selected capacity: Generally, the maximum force value of the failure of the specimen is about 3~5 times
Unit selection G, KG, N, KN, LB (international standard system, metric system and imperial system are available, which can be switched by yourself)
Display device Fully computer control (report data can be made arbitrarily required by customers)
Load resolution 1/10000 adjustable
Load accuracy ≤0.1%
Test speed 0.1~500mm/min
Compression space  1500*1500*1500mm(L×W×H) Note: 1500mm is the span
Power system Servo motor + Servo driver
Transmission mode Taiwan TBI no-gap ball screw + Taiwan Liming reducer + synchronous belt drive
Power supply 1∮, 220V/50Hz
Approx. product size 210x150x240cm





Specifications of box compression testing machine:

A: Power system: servo motor + servo driver + ball screw + Liming reducer +

synchronous belt drive

B: Control system: TM2101 computer servo system is adopted, which can automatically return to the origin after the test, and can automatically and manually store data

C: Data transmission method: RS232 transmission

D: Computer servo system: dedicated system for servo compression testing machine

E: Display mode: Windows interface display

F: Convenient full-range first gear and precise full-range six-speed force linear double correction system

G: Windows interface test software can realize constant speed, positioning movement, constant load, constant force, constant time, breakpoint ratio, multi-level control mode, which can meet different test requirements

H: Full displacement: Encoder: 2500P/R, 4 times higher precision

I: Displacement Resolution: 0.01mm

J: Safety device: overload emergency stop device, upper and lower travel limit device, leakage automatic power-off system, automatic power-off stop function





Software function introduction:

A: Test standard modularization function: provide users to set the test standard settings for the required application, covering the test standard specifications such as GB, ASTM, DIN, JIS, BS..., etc.

B: Sample data: gauge length, width, thickness, radius, area, etc.

C: Dual report editing: fully open users to edit reports, for testers to choose their preferred report format

D: The display of each length and force unit of the electronic universal material testing machine adopts the dynamic exchange method

E: The scale of the circular curve is automatically optimized, so that the circle can be displayed in the best scale, and the circle can be dynamically switched during the test, with force-displacement, force-time, displacement-time, stress- -strain

F: The test can be automatically saved and archived manually. After the test, it will automatically display the maximum strength, upper and lower yield strength, compressive strength, tensile strength, 100% constant elongation strength, 300% constant elongation strength, elastic modulus, elongation, peeling Interval maximum, minimum, average, etc.

G: Random switching of multiple languages: Simplified Chinese, Traditional Chinese, English
