| Place of Origin: | Dongguan |
| Brand Name: | SKYLINE |
| Certification: | ISCC |
| Model Number: | SL-11171 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Woonden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Box/Boxes Per Day | Test Standard: | ISO11171, GB/T14039, DL/T432 |
|---|---|---|---|
| Power: | Electronic | Light Source: | Semiconductor Laser |
| Detection Channel: | 8 Channels Can Set Particle Size Arbitrarily | Particle Size Range: | 0.8um~500um |
| Warranty: | 1 Year | Temperature Range: | 0℃~60℃ |
| High Light: | ISO 11171 Oil Testing Equipment,ISO 4406 Oil Testing Equipment,Turbidity Test Analyzer |
||

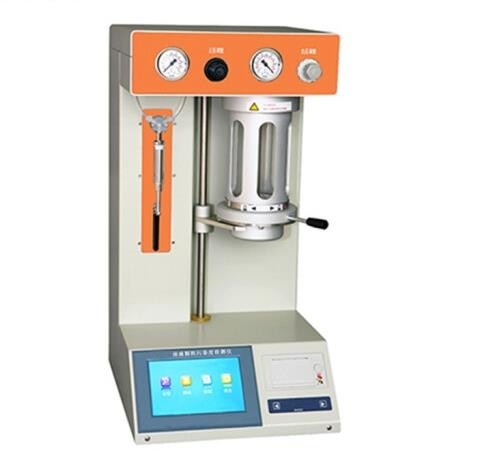

The Automatic Oil Cleanliness Tester is a professional instrument for detecting the distribution, size and grade of contamination particles in oil. The instrument is developed using the principle of photoresist method (shading method), and is suitable for the detection of particle contamination such as hydraulic oil, lubricating oil, fire-resistant oil, insulating oil and turbine oil. It can provide fast, accurate, reliable and reproducible test results and complete pollution monitoring analysis reports.
GB/T18854,ISO11171,GJB-420A,GJB-420B,NAS1638,GB/T14039,ISO4406,SAE4059F-CPC,SAE4059F,SAE749D,ГOCT17216,QC/T29104,JB/T9737,DLT432,HH005
Used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
1. Adopt the counting principle of the photoresist (shading) method specified by the International Hydraulic Standards Committee.
2. High-precision laser sensor, wide test range, stable performance, low noise and high resolution.
3. Using the precise high-pressure syringe pump sampling method, the sampling volume can be set by itself, the sampling speed is stable, and the sampling accuracy is high.
4. The positive and negative pressure combined sample injection system can realize sample degassing, which is suitable for testing samples of different viscosities.
5. Built-in pressure sensor, which can set the pressure value and automatically judge the air pressure in the cabin to ensure safety
6. Built-in air purification system to ensure that the test is not polluted.
7. Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration.
8. Built-in GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059F-CPC, SAE4059F, SAE749D, ГOCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018 and other common standards, support
Customize standard tests and set the required standards according to customer needs
9. Built-in data analysis system, one test can give all standard test data and pollution level
10. Built-in viscosity, moisture and temperature sensor modules provide viscosity, moisture content saturation and ppm value and temperature reference value while accurately testing particle distribution (optional)
11. The particle size can be arbitrarily set, with nearly 10,000 built-in particle sizes, which is convenient for particle size analysis
12. Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries.
13. Full-function automatic color touch screen operation, support Chinese and English dual interface, built-in printer, simple and elegant structure, simple and convenient operation.
14. Single-channel and multi-channel calibration can be performed to realize automatic calibration function
15. Built-in data analysis system, which can automatically determine the sample grade according to the standard.
16. With RS232 interface, it can be connected to a computer or laboratory platform for data processing.
17. The verification report of the national particle size measurement and test station "China Aviation Industry Particle Size Measurement and Test Station" can be provided for a fee.
18. With mass data storage and printing functions, it can store 1000 sets of data and support U disk storage of data
| Light source | semiconductor laser |
| Light source | 0.8um~600um |
|
Detection channel |
8-64 channels are optional (8, 16, 32, 64 channels are optional), the particle size can be set arbitrarily |
| Resolution | better than 10% |
| Repeatability | RSD<2% |
|
Viscosity range |
up to 350mm2/s(cSt) (excessive viscosity needs to be detected with heating or dilution method) |
| Sampling volume | 0.2~100ml |
| Sampling accuracy | better than ±0.5% |
| Sampling speed | 5mL/min ~80mL/min |
| Maximum vacuum of air pressure chamber | -0.08MPa |
| The maximum positive pressure of the air chamber | 0.8MPa |
| Maximum particle concentration | 12000~40000 particles/mL |
| Dimensions | (L*W*H)400×400×630mm |
| Weight | 22.5kg |
| Working power supply | AC220V±10%, 50Hz |
Temperature (optional): Collection range: 1~100°C; Collection accuracy: 1°C
lWater activity (optional): Collection range: 1~100%RH; Collection accuracy: 1%RH
lWater content (optional): Collection range: 1~300ppm; Collection accuracy: 1ppm
