Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Model Number: | SL-ASTM D2500 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Applicable Oil: | Light Oil With Cloud Point In The Range Of 10℃～-65℃ | Measurement Repeatability:: | 2℃ |
|---|---|---|---|
| Display Resolution:: | 0.1℃ Accuracy: 0.3% | Refrigeration Limit Depth: | Below – 7 0℃ (double Sets Of Compressor Cascade Refrigeration) |
| Cooling Speed: | 10 Minutes Temperature Difference> 15 ℃ | Sample Dosage: | Cloud Point: 45ml Each Time |
| Number Of Samples: | 1 | Cold Bath: | 1 Hole (metal Aluminum Bath) |
| Rated Power: | 800W | Power Supply Voltage:: | 220V±10% 50Hz± |
| Ambient Temperature:: | 5℃～40℃; | Relative Humidity: | <85% |
| Dimensions: | 400×790×490mm (W×H×D) | Weight: | 50Kg |
| Keywords: | Oil Analysis Testing Equipment | ||
| High Light: | Petroleum Products Cloud Point Tester,ASTM D2500 Petroleum Tester,ASTM D2500 Cloud Point Tester |
||

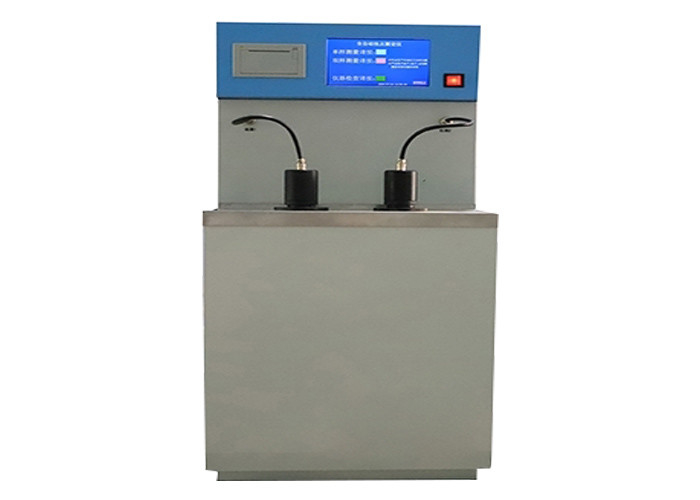

Automatic Cloud Point Tester
The automatic cloud point tester adopts modern high-tech microelectronic control technology and adopts MCS-51 series single chip microcomputer as the system control core.
The stability and reliability of the instrument, the accuracy and stability of the results can reach the level of similar imported products, and at the same time, the automation level of the test operation is improved to the greatest extent, so that the cetane number test of the diesel engine is no longer cumbersome.
GB/T6986 "Determination of Cloud Point of Petroleum Products"
ASTM D2500
1. Configuration of 7-inch 256-color intelligent color screen display, perpetual calendar clock timing display and screen touch buttons.
2. Chinese LCD display, man-machine menu-type dialogue, wizard-type operation, and the cloud point measurement process is fully automated.
3. The whole instrument is advanced in design, reasonable in structure, simple in operation, safe and reliable.
| Applicable oil | light oil with cloud point in the range of 10℃～-65℃ |
| Measurement repeatability | 2℃ |
| Display resolution | 0.1℃ Accuracy: 0.3% |
| Refrigeration limit depth | below – 7 0℃ (double sets of compressor cascade refrigeration) |
| Cooling speed | 10 minutes temperature difference> 15 ℃ |
| Sample dosage | Cloud point: 45ml each time |
| Number of samples | 1 |
| Cold bath | 1 hole (metal aluminum bath) |
| Rated power |
800W |
| Power supply voltage | 220V±10% 50Hz± |
| Ambient temperature | 5℃～40℃; |
| Relative humidity | <85% |
| Dimensions | 400×790×490mm (W×H×D) |
| Weight | 50Kg |
