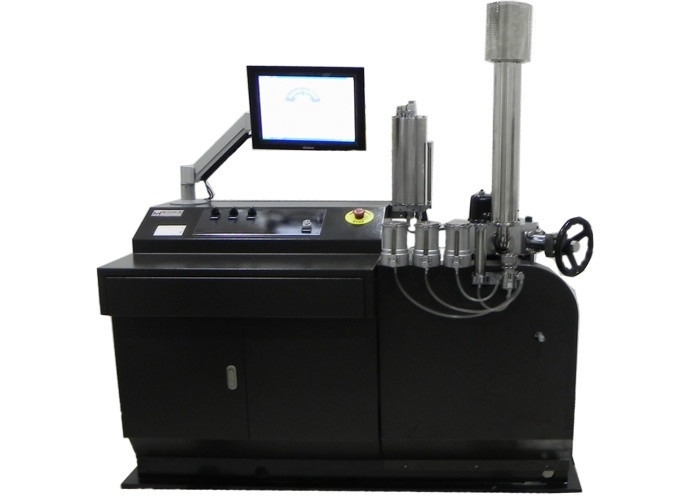

Description Of Oil Analysis Equipment

Because the diesel cetane number machines based on the standard method are all dependent on imports and are expensive, which affects the strict implementation of domestic diesel quality standards, the localization of this instrument is of great significance. On the basis of years of research and development of bench testing machines, the diesel cetane number machine has been successfully developed in strict accordance with ASTM D613 and GB/T 386-2010 standards. Independent intellectual property rights. The main body is a standard single-cylinder, four-stroke, variable compression ratio, indirect injection diesel engine. Under the conditions of controlling the fuel flow, injection time and compression ratio, the diesel engine to be tested is compared with the standard fuel to obtain a diesel engine. A measure of the ignition lag period.

The stability and reliability of the instrument, the accuracy and stability of the results can reach the level of similar imported products, and at the same time, the automation level of the test operation is improved to the greatest extent, so that the cetane number test of the diesel engine is no longer cumbersome.

Standard: ASTM D613, GB/T386-2010

Features

1. Completely meet the requirements of GB/T386-2010, ASTM D613 standard, and the operation is more convenient;

2. Professional combustion sensor is designed according to industrial standards, which is more stable and reliable. The specially designed signal transmitter ensures the interchangeability of combustion sensor;

3. Automatic fuel flow measurement and touch screen adjustment control, precise operation knobs are set to adjust the fuel injection speed to meet the standard requirements, and the real-time fuel injection speed data is directly displayed on the software interface, making the operation more simple and intuitive;

4. Real-time display of the working curve of the ignition lag period, timely understanding of the ignition time of the instrument,

5. The fuel injection advance angle is automatically controlled by the computer, and the control accuracy is 13°±0.1°, and the fuel injection advance angle is displayed in real time;

6. Computer touch screen operation, the test results can be obtained directly without manual look-up table calculation, and the test results can be output by the panel printer;

7. Equipped with large-capacity air purification device;

8. The instrument is equipped with a muffler device, which can effectively eliminate the noise during operation and ensure the quietness of the laboratory;

9. Equipped with lubricating oil auxiliary preheating module to shorten the preheating time;

10. The instrument has a high degree of automation, precisely measures the cylinder displacement (equivalent to the handwheel reading), obtains the precise compression ratio reading in real time, and has the functions of data acquisition, automatic calculation, automatic control, automatic table lookup, printing and prompting;

11. The software operation interface is highly integrated, various real-time status monitoring information is clear at a glance, real-time display of the combustion signal trend curve and recording instrument conditions, real-time monitoring of cooling water temperature, intake air temperature, nozzle temperature, oil temperature, fuel temperature, motor power, etc. working condition

12. Real-time display of engine operating pressure negative pressure sensor;

13. Engine power indication, digital screen display;

14. The unique input oil pressure stabilization technology makes the design of the operating table adopt the most reasonable height, which is more user-friendly and does not require climbing operations;

15. The control system adopts a modular dedicated controller, which enhances reliability and makes daily maintenance, maintenance and troubleshooting easy and convenient;

16. The software adopts a guided operation design, which guides the operator to follow the standard steps step by step, which is clear and easy to understand;

17. Automatically record the startup time and accumulated running time, and automatically prompt maintenance;

18. The instrument is equipped with an independent circulating cooling water system, and customers do not need to configure a special cooling water circulating system in the laboratory.

Stability Guarantee

Fully absorb the latest achievements in the development of the engine industry, and the mechanical system is more sophisticated in design, metal material selection and processing technology, so that the accuracy, stability and reliability of the instrument reach the same level as imported instruments;

Diesel engine adopts double balance structure design, which effectively reduces vibration and noise.

Safe and healthy

The mechanical and moving parts of the system are protected by hardware such as position interlocking, emergency stop buttons are set on the operation panel, there are eye-catching instrument safety prompts on the software operation interface, and the instrument safety signs are clear and complete;

The instrument specially treats the exhaust emission of the engine to make it meet the emission standard and also ensure the environment of the laboratory.

Specification

Standard Configuration
