PLC Control Spectral Frame Torsion Tester -90 ~ 90 Degrees

PLC Control Spectral Frame Torsion Tester -90 ~ 90 Degrees

  • PLC Control Spectral Frame Torsion Tester -90 ~ 90 Degrees
PLC Control Spectral Frame Torsion Tester -90 ~ 90 Degrees
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: GB, ISO
Model Number: SL-605
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Glasses Frame Torsion Tester Glasses Frame Torsion Tester: -90~90 Degrees
Turning Speed: 50rpm (adjustable) Monitor: PLC Control, Touch Screen Operation
Volume: 550x470x470mm Weight: 50KG
High Light:

Spectral Frame Torsion Tester

,

Glasses Frame Torsion Tester

,

Spectral Frame Torsion Lab Testing Equipment

Spectral Frame Torsion Tester

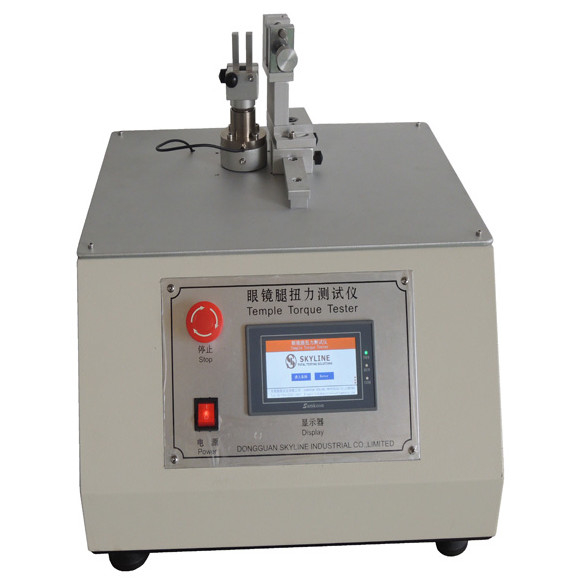

SL-605 Glasses Frame Torsion Tester



Product Introduction

Technical Requirements of Ophthalmic Optics-Glasses Frame-Basic Requirements and Test Methods The upper part of this instrument is a sample clamp, and the glasses frame is clamped at both ends of the clamp for torsion test. The eccentric device is driven by the motor to perform angular deflection and twisting. After the number of twists required by design. Stop the operation of the instrument, take off the sample, observe its wear degree, evaluate its folding resistance, and provide reference data for material selection.



Testing Standard

The leg torsion tester for glasses is based on GB/14214-2003 "General Requirements and Test Methods for Glasses Frames" and ISO12870:1997.



Technical parameters

 Torsion angle  -90~90 degrees
 Turning speed  50rpm (adjustable)
 Monitor  PLC control, touch screen operation
 Volume  550x470x470mm
 Weight   50kg
 Power supply  220V 5A
