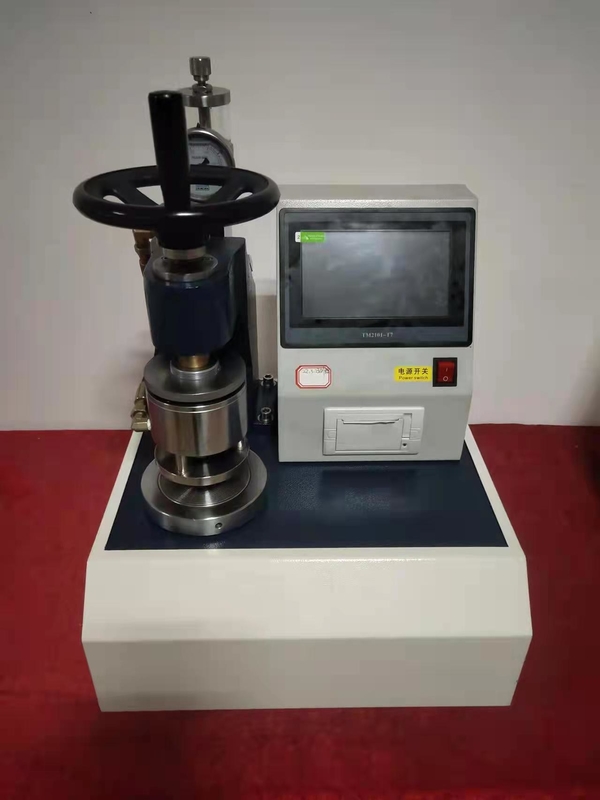

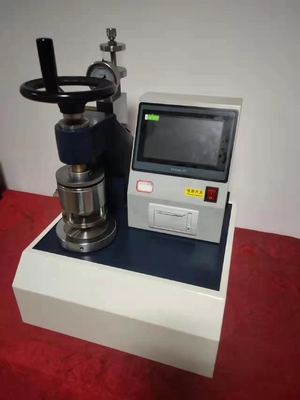

Touch Screen Fracture Strength Testing Machine Semi Automatic

Touch Screen Fracture Strength Testing Machine Semi Automatic

  • Touch Screen Fracture Strength Testing Machine Semi Automatic
  • Touch Screen Fracture Strength Testing Machine Semi Automatic
Touch Screen Fracture Strength Testing Machine Semi Automatic
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE, calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Sensing Method: Pressure Transducer Indicating Method: SVC-E
Oil Pressure Gauge: 0～35㎏/㎝2 Motor: AC220V　1/4HP
Power Source: 1∮,AC220V,1A Power And Water Consumption: About 300W
Highlight:

Touch Screen Strength Testing Machine

,

Semi Automatic Fracture Strength Testing Machine

Touch screen semi-automatic fracture strength testing machine

Use:

Fracture Strength Testing Machine is used to testing the fracture strength of corrugating medium,corrugating board,carton and graphic carton.



Product Introduction:

The fracture strength testing machine adopts signal to transmit pressure, and automatically retains the maximum fracture strength value when the test material is broken.

The test piece is placed on the film, clamped with the test piece, and then evenly applied pressure, so that the sample and the film will bulge together , until the sample fracture.
The maximum hydraulic pressure applied is the bursting strength value of the test piece



Standard:

GB/T6545,TAPPI-T403,JIS-P8112,L1018,L1004



Parameters:

Items Specification
Sensing method Pressure transducer
Indicating method SVC-E
Capacity(select) High voltage 0～80㎏/㎝2(accuracy 0.5kg/cm2)
Oil pressure speed (170±10)ml/min
Clamp ring diameter super-ring High voltage Φ31.5mm
lower- ring High voltage Φ31.5mm
Oil pressure gauge 0～35㎏/㎝2
Motor AC220V　1/4HP
Volume About 53㎝×23.5㎝×57㎝
Weight About 65kg
Power source 1∮,AC220V,1A
Power and Water consumption About 300W



Touch Screen Fracture Strength Testing Machine Semi Automatic 0
