100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material

100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material

  • 100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material
  • 100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material
  • 100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material
100 - 500N Computer Control Tensile And Compressive Testing Machine For Universal Material
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: GB
Model Number: SL-SBA-50B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Computer-controlled Tensile Testing Machine (Touch Screen Model) Optional Capacity: 10kg(100N)、20kg(200N)、30kg(300N)、50kg(500N)
Unit Switching: G、kg、Ib、N、KN Unit Of Displacement: Mm/cm/in
Decomposition Degree Of Load: 1/200,000 Load Accuracy: ±0.3%
Test Speed: 0.01~500 Mm/min Report Output: Can Output WORD, Excel, PDF Format Report
High Light:

500N Compressive Testing Machine

,

100N Compressive Testing Machine

,

500N Tensile Testing Machine

Computer-controlled Universal Material Tensile And Compressive Testing Machine





Product overview:

This series machine is widely used in various kinds of films, hardware, buttons, rubber materials, textiles, building materials, insulators, wires, cables, terminals and other materials. Test the mechanical and physical tests of various materials such as tensile, tearing, piercing, peeling, compression, bending, shearing, fixed load, positioning, three-point bending and four-point bending.



Testing Standards:

This testing machine is manufactured according to GB/T 16491-2008 standard of .

This testing machine is verified and accepted according to GB/T12160-2002and GB/T16825-2008.

 BS EN ISO 1421, GOST 18299,DIN 53357, BS 903,BS 5131, ASTM D3574, ASTM D6644





Product Features:

1. Various test modes: common, square, round, tearing, peeling, cord, canvas, fixed load, positioning and shifting, spring, three-point bending resistance, four-point bending resistance, fixed force and fixed time keeping.

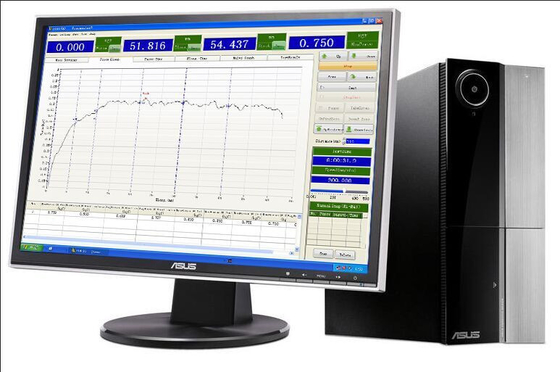

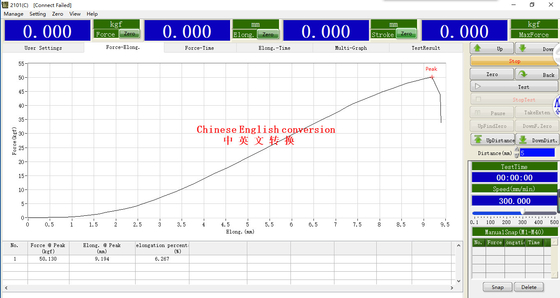

2. Standard network computer interface, with special professional measurement and control software, real-time display of force-displacement, force-time, displacement-time, stress-strain curves, automatic calculation of maximum force, yield force, average force, maximum deformation, yield point, elastic modulus and other parameters, and flexible report editing and printing functions. The report can display and print the tensile strength value (Mpa).



3. During the test process, manually make multi-point statistics, and automatically calculate the average value and fracture value (suitable for peeling and tearing test), which can store multiple groups of data.



4. Arbitrary switching of units: strength: KGF/N/LBF/GF/KN/T.



5. Displacement: mm/cm/in



6. Automatic homing function and overload protection function can be set.





Technical parameters:

 Type  SBA-50B
 Optional Capacity  10kg(100N),20kg(200N),30kg(300N),50kg(500N)
 Unit switching  g,kg,Ib,N,KN
 Unit of displacement  mm/cm/in

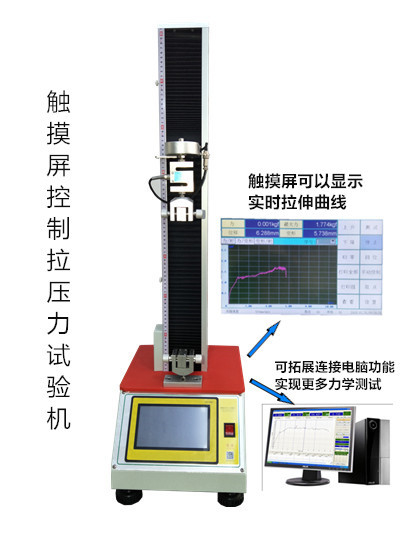

 Machine monitor  Comes standard with a 7-inch color touch screen display with stretch curve display.
 Displacement mode

Total displacement (displacement from the beginning of the test to the end of the test)

 Two-point displacement (displacement from the beginning of the stress on the sensor to the end of the test)

 Decomposition degree of load  1/200,000
 Load accuracy  ±0.3%
 Power magnification  ×1,×2,×5,×10,×20,×50,×100 Seven-segment automatic switching Auto-Range
 Maximum stroke (excluding clamp)  700mm(Effective stretching space 460mm)
 Test speed  0.01~500 mm/min
 Speed accuracy  ±0.2%
 Resolution of Displacement  0.001 mm
 Sampling frequency  500Hz
 Return function  Automatically return to the original test starting point when the test is completed,
 Keyboard shortcuts   Inching up fast, inching down fast, inching up slowly, inching down slowly (2 speeds)
 Overload protection

Electronic protection (automatic shutdown when XX% of sensor range is reached)

Mechanical protection (stop automatically when reaching the limit protection switch)

 Software  Full-closed-loop professional computer system test software
 Report output  Can output WORD, Excel, PDF format report
 Machine  Gear train  Planetary gearbox+ball screw
 Electrical Machinery  Hybrid servo
 Sensor  Force transmission CR series
 Weight  About 35kg
 Outline dimension  Length 390 width 310 height 1020mm
 Power Supply  1∮,220V/50HZ,5A,According to country or designation.
