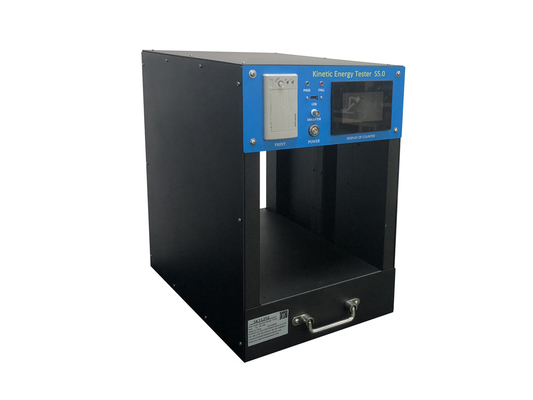

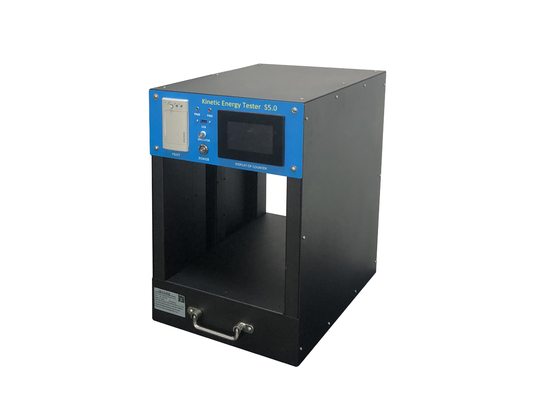

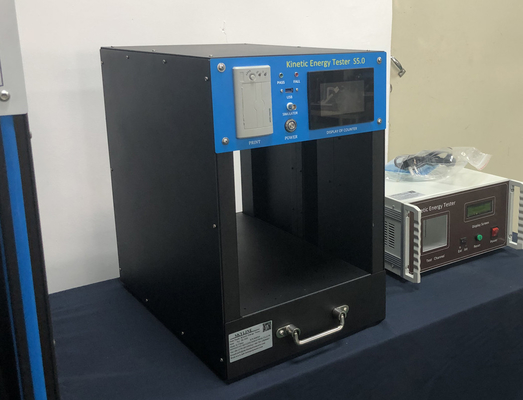

EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm

EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm

  • EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm
  • EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm
  • EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm
EN71-1 Toys Kinetic Energy Tester With Sensor Distance 10 - 30cm
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S20A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 pcs / month
Contact Now
Detailed Product Description
SKYLINE: Kinetic Energy Tester Timer Error: <0.1ms
Sensor Distance Select: 100-300mm Maximum Timing: 15.000000S
Speed Display Range: 0.007M/S—100M/S Power Supply: 1∮ AC 220V 3A
High Light:

EN71-1 Kinetic Energy Tester

,

Sensor Distance 10cm Kinetic Energy Tester

,

Sensor Distance 30cm Toys Testing Equipment

Kinetic Energy Tester with Sensor Distance 10-30cm



Product Introduction

Kinetic Energy Tester is a equipment to check the speed of a object (DUT) which pass though the test tunnel .According to the result read out and mass value of DUT, we could calculate the kinetics energy value and know how danger of DUT it is .

Inside the test tunnel of this KE tester, there have three sets of Infra-Red sensor group. One set for start the timer and other two for stop the timer.

Each group include 30 pairs Infra-Red Sensor. They are located in opposite plate and the Infra-Red light are transmitter and receiver are fix in a opposite and signal will transmit and receive though a 1mm narrow gap.

The first group sensor is calls “Start-Sensor”. The second group is call “10cm Stop Sensor” and the third group is call “30cm Stop Sensor”.

Distance between “Start Sensor” and “10cmStopSensor” is 10cm. It is always use for detect low speed or high air friction object.

Distance between “Start Sensor” and “30cm Stop Sensor” is 30cm. It is always use for detect high speed or low air friction object.

1/10000s timer will start at “Start-Sensor” detected DUT, timer will stop until “10cmStopSensor” or “30cmStopSensor” detected DUT. (According to the test range select by user).



Product Features

  • Interior sensor distance 100-300mm
  • Equipment and means for determining the velocity and the mass of the projectile, to give a calculated kinetic energy to an accuracy of 0,005 J.
  • The measurement distance (d) maximum up to (300 ± 5) mm
  • Equipment and means for determining the velocity and the mass of the projectile, to give a calculated kinetic energy to an accuracy of 0,005



Technical parameters

 Number of samples  1/time
 Maximum timing  15.000000S
 Timing range  0.000001--15.000000S
 Speed display range  0.007M/S—100M/S
 Induction spacing  100mm, 152.4mm,300mm, error 0.1mm
 Minimum diameter of sample  5mm
 Volume(WxDxH)  55x35x52cm
 Weight (approx.)  ≈16.8kg
 Power supply  1∮ AC 220V 3A



Basic Function /Specification

 Time counter interval  1/10000s
 Timer Error  <0.1ms
 Sensor distance select  10,15.24cm,30cm
 Sensor distance error  <0.5mm



Assist Part

1. Bullet Simulator.

2. 28cm wide test tunnel

3. PC Interface Cable

4. 2” thermal printer

5. Drawer

6. Spare thermal paper



Testing Standards

EN71-1,ASTM F963, ISO8124-1, GB66



Simulator
