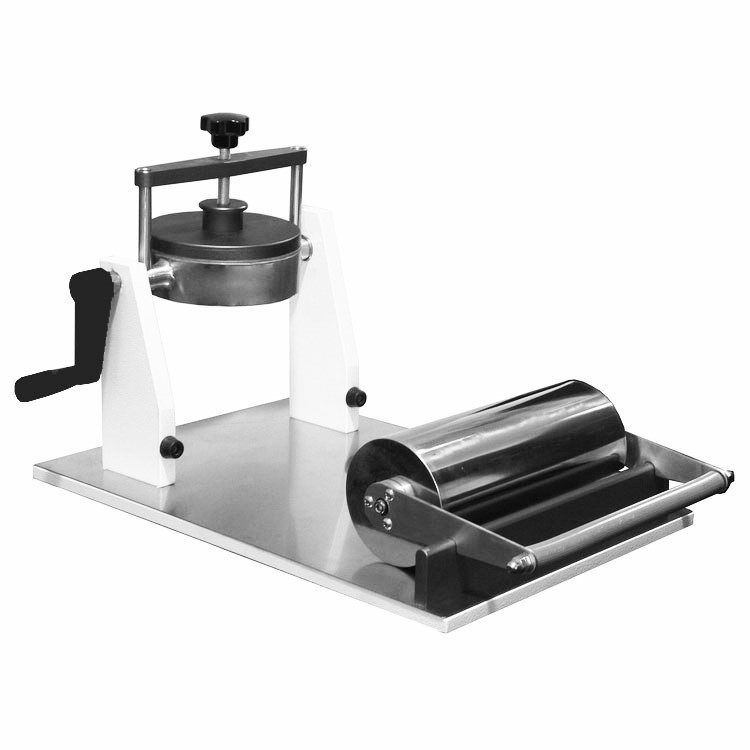

QB/T1668 ISO535 Cobb Absorbability Tester For Paperboard

QB/T1668 ISO535 Cobb Absorbability Tester For Paperboard

  • QB/T1668 ISO535 Cobb Absorbability Tester For Paperboard
QB/T1668 ISO535 Cobb Absorbability Tester For Paperboard
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Cobb Absorbability Tester Test Area: 100cm2±0.2cm2
Sample Size (diameter): Φ125mm Test Water Consumption: 100ml±5ml
Roll Length: 200mm±0.5mm Roller Quality: 10kg±0.5kg
Highlight:

ISO535 Cobb Absorbability Tester

,

Paperboard Cobb Absorbability Tester

,

QB/T1668 Water Absorption Tester

ISO535 Cobb Absorbability Tester





Overview

The paper and paperboard Cob water absorption tester is a special instrument for measuring the surface water absorption of paper and paperboard. Its main technical indicators and performance parameters conform to ISO535 "Paper and paperboard-determination of water absorption-Cobb method" and QB /T1668 "Bomb Absorbency Tester" related regulations.



This instrument is mainly used to determine the amount of water absorbed on the surface of sizing paper and cardboard under the conditions specified in the standard. Loose paper (such as news printing paper), unsizing paper (such as blotting paper) and other paper with high water absorption are not suitable for this instrument. Other test methods and instruments should be used.



Technical parameters

 Refer to several items  Technical indicators
 Test area  100cm2±0.2cm2
 Sample size (diameter)  Φ125mm
 Test water consumption  100ml±5ml
 Roll length  200mm±0.5mm
 Roller quality  10kg±0.5kg
 Dimensions (length×width×height)  430mm×320mm×320mm
 Overall quality  about30kg
