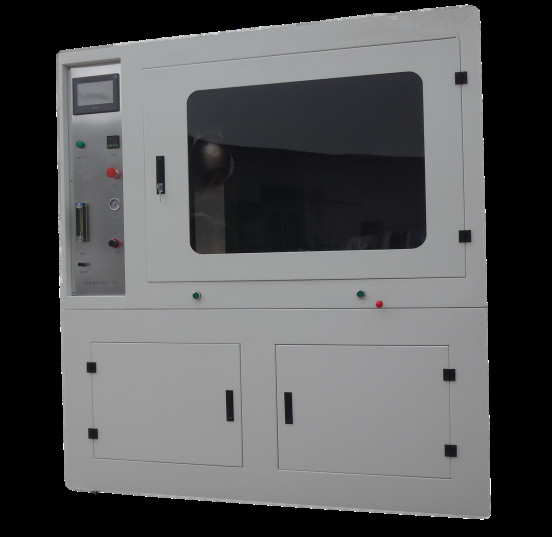

EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007

EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007

  • EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007
  • EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007
EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Model Number: SL-L136
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Plywood case
Delivery Time: 20 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
The Flame Height: 40mm The Temperature At The Flame 20mm: 800±50℃
The Temperature Of The Center Of The Flame: 950℃±50℃ Dimensions: 1,400(W) X 650(D) X 1,300(H)mm
2.Power Supply:: AC 220V, 50/60Hz, 15A; Weight: 80 Kg
High Light:

40L/MIN Lab Testing Equipment

,

100L/MIN Lab Testing Equipment

,

1PA Mask breathing resistance tester

EN 136 Full Face Masks and Backpacks

Strap burning test all-in-one machine GBT16556-2007











EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007 0EN 136 Full Face Masks and Backpacks Strap burning test all-in-one machine GBT16556-2007 1











Application

Firefighters' fire-fighting protective clothing is mainly composed of jackets and overalls, and can also wear fire-fighting protective helmets, fire-fighting protective boots, and fire-fighting protective gloves! Each set must be equipped with a strong inspection mark uniformly numbered by the National Fire Equipment Quality Inspection Center before leaving the factory.



Standard:

EN 136: Respiratory Protective Devices Full Face Masks Requirements, Testing, Marking

GBT16556-2007 5.11.2 / 5.11.3 GA124-2013 new version of the standard requirements

EN 14387



Common part

1. The box body is treated with spray paint, which is beautiful and elegant;

2. The integrated structure design of the full face mask and the back strap burning device on the same platform;

3. All tooling is made of stainless steel, beautiful and corrosion-resistant;

4. Inlet flow control valve to control gas flow; flame height control 40mm±2mm;

5. Imported brand pressure gauge and pressure regulating valve

6. The inlet needle valve can control the airflow rate supplying the burner;

7. PLC plus touch screen intelligent control system; the test interface is simple and easy to operate;

8. The system automatically and automatically time, and the heat data is automatically recorded and stored;

9. Independent storage of various test reports; free retrieval;



Full face mask test section

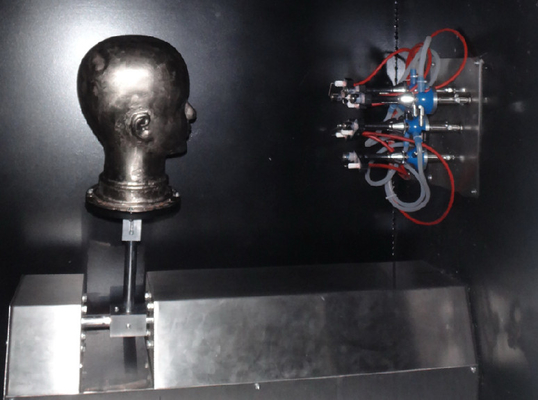

1. Burning test metal head mold; the head mold can be automatically rotated to the test position;

2. Six imported combustion nozzles, which can control the flow of propane and air

3. The height of the burner nozzle can be adjusted up and down; 250mm from the outer surface of the sample

4. K-type thermocouple 250MM above the burner can measure whether the flame temperature reaches 950±50℃

5. The temperature of the center of the flame is 950℃±50℃; measured by precision thermocouple;

6. Imported brand pressure gauge and pressure regulating valve adjust the gas pressure supplied to the burner, the range is 0~10kPa

7. Rotary device with head mold;

8. The gas automatic blocking device can block the gas supply 5 seconds after the test starts

9. The temperature at 250mm from the center of the flame to the top of the burner is 950±50℃;

10. Automatic ignition, automatically extinguished after 5s ignition time;


Backpack Strap test section

1. Stainless steel shield; beautiful and corrosion-resistant;

2. Imported Bunsen burner; adjustable gas and air flow;

3. Blowtorch lifting device; stainless steel sample holder;

4. Automatic timing device;

5. The flame height is 40mm; the temperature at the flame 20mm is 800±50℃;

6. Automatic ignition, after the ignition time is 20s, the gas will be automatically cut off and extinguished;



Specification


1. Dimensions: 1,400(W) x 650(D) x 1,300(H)mm

2. Power supply: AC 220V, 50/60Hz, 15A;

3. weight: 80 kg
