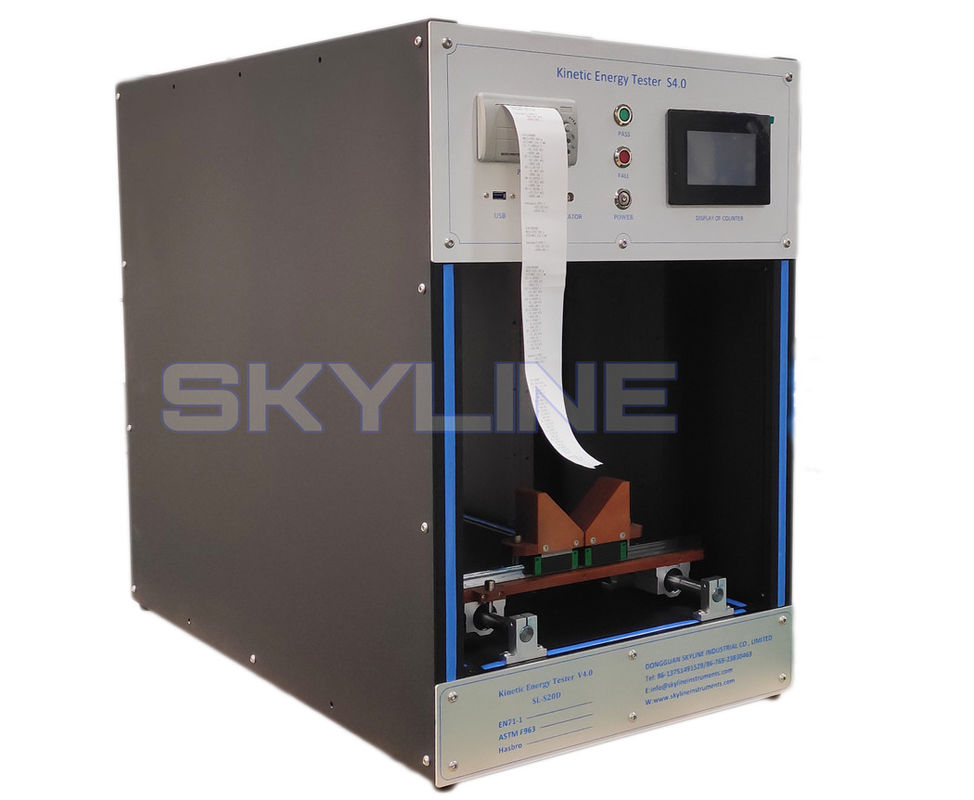

Kinetic Energy Tester Toys Testing Equipment Sensor distance select 100-500mm
Kinetic Energy Tester 10-50CM.pdf
Product introduction
KE Tester is a equipment to check the speed of a object (DUT) which pass though the test tunnel .According to the result read out and mass value of DUT, we could calculate the kinetics energy value and know how danger of DUT it is .
Inside the test tunnel of this KE tester, there have three sets of Infra-Red sensor group. One set for start the timer and other two for stop the timer.
Each group include 30 pairs Infra-Red Sensor. They are located in opposite plate and the Infra-Red light are transmitter and receiver are fix in a opposite and signal will transmit and receive though a 1mm narrow gap.
Basic requirements
1. 220V AC Input
2. DUT need to go through the tunnel in horizontally.
3. Diameter of DUT need to greater than 5mm
4. Speed of DUT must lower than 140m/s
Technical parameters
|
Number of samples |
1/time |
|
Maximum timing |
15.000000S |
|
Timing range |
0.000001--15.000000S |
|
Speed display range |
0.007M/S—100M/S |
|
Induction spacing |
100-500mm, error 0.1mm |
|
Minimum diameter of sample |
5mm |
|
Volume(WxDxH) |
89*73*47 |
|
Weight (approx.) |
≈85kg |
|
Power supply |
1∮ AC 220V 3A |
Basic Function /Specification
| Time counter interval | 1/10000s |
| Timer Error | <0.1ms |
| Sensor distance select | 100-500mm |
| Sensor distance error | <0.5mm |
Assist Part
1. Bullet Simulator.
2. 40cm wide test tunnel
3. Keyboard
4. PC Interface Cable
5. 2” thermal printer
6. Spare thermal paper
Simulator
