Name: ISO 8124-1 Handheld Dial Torque Gauge For Toys Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S02
Price: 4,500.00 USD
Availability: InStock

Home Products Toys Testing Equipment

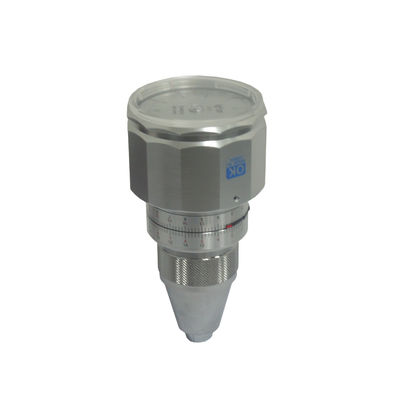

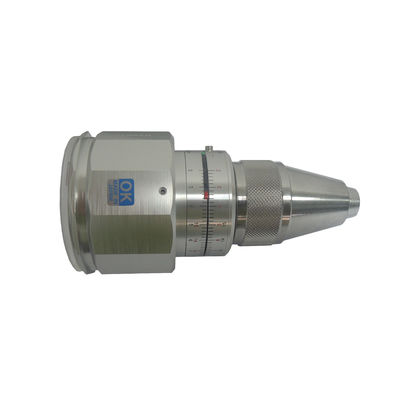

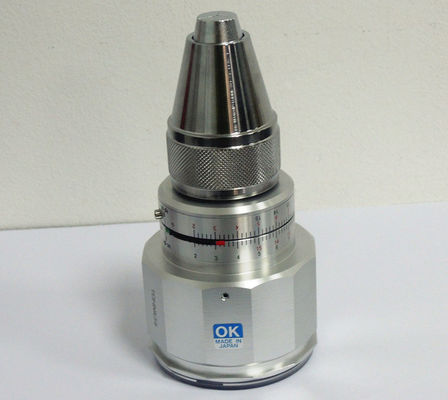

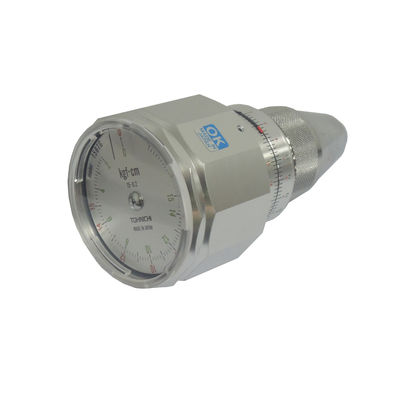

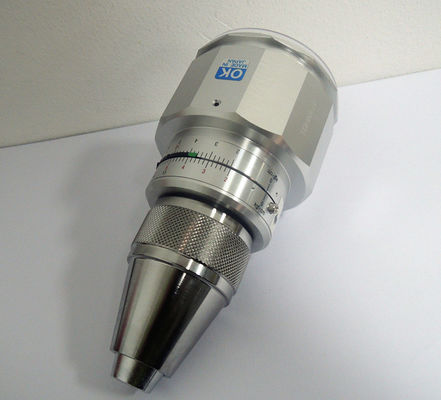

ISO 8124-1 Handheld Dial Torque Gauge For Toys Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-S02

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Carton box
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Torque Gauge	Standards:	ASTM F963 CFR 16 CFR CPSC USA EN71, ISO8124
Accuracy:	0.02	Brand:	SKYLINE
Weight:	1kg	Test Range:	10-150N
Highlight:	Handheld Dial Torque Gauge , ISO 8124-1 Dial Torque Gauge , 150n torque dial gauge

ISO 8124-1 Toys Testing Equipment Hand Held Dial Torque Gauge

Product introduction

To determine whether components of toys can be removed by a certain torque force.

A torque-measuring device is used in conjunction with a torque clamp to record the applied force.

Any projection, part or assembly of a toy that a child can grasp with at least the thumb & forefinger

or the teeth shall be subject to the torque test.

Testing standards

ASTM F963 CFR 16 CFR CPSC USA EN71, ISO8124

Product Features

Torque meter is a test tool for measuring tiny torque and fasteners.

It can be measured in both clockwise and counterclockwise directions, and is suitable for checking and studying the torque required for assembly of small parts.

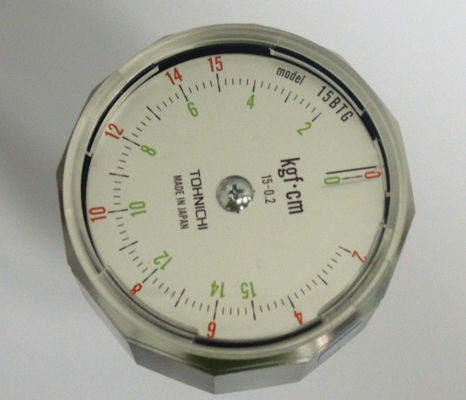

An overload protection device is installed inside, and both the dial and the body have scale indications.

Exquisite design, light weight, easy to use; scale display on the surface, does not damage the structure of the article.

Parameter

Model	Capacity	Graduation
6BTG	0.5-0.6kgf.cm	0.1kgf.cm
9BTG	1-9kgf.cm	0.2kgf.cm
15BTG	1-15kgf.cm	0.2kgf.cm

What is the purpose of torque tester?

A torque tester is used as a quality control device to test or calibrate torque controlled tools. This includes electronic torque wrenches, click torque wrenches, dial torque wrenches, electric screwdrivers, air screwdrivers, pulse tools, cordless screwdrivers, nutrunners, and torque screwdrivers.

Torque Clamp please refer to below

ISO 8124-1 Handheld Dial Torque Gauge For Toys Testing 0
