Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoitable |
Packaging Details: | plywood case |
Delivery Time: | 15 work days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 1 unit / month |
SKYLINE: | Temperature Detection Security Door | Response Time/detection Time: | 0.1S/0.5S-1.5S |
---|---|---|---|
Detection Position/distance: | Forehead, Wrist/5-15CM | Power Supply/power Consumption: | 100V-240V /15W |
Weight: | 50kg | Display: | 7 Inch Color Touch Screen |
High Light: | 0.1S Temperature Detection Security Door,5CM Temperature Detection Scanner |

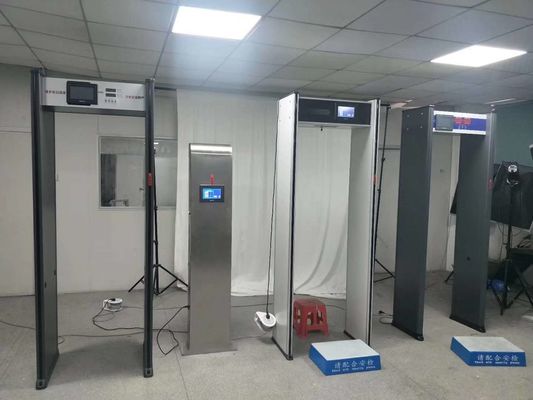

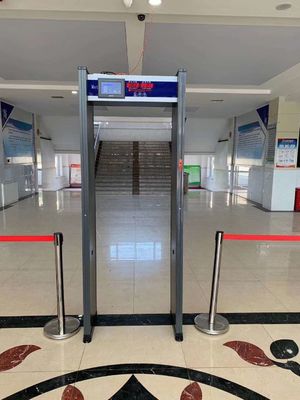

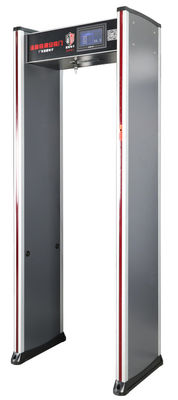

Lab Testing Equipment Temperature Detection Security Door
Product description
Non-contact abnormal body temperature is initially screened, and the detection speed is fast, which can prevent personnel from being exposed to cross infection. Equipped with a 7-inch LCD screen, it can display information such as measured temperature, alarm temperature, number of alarms, number of passers, compensation parameters, etc.
Product Features
1.When no one is measuring, the measured temperature shows the ambient temperature.
2.During the measurement, the person to be measured closes the forehead to the position of the probe, about 10-15 cm away from the probe, and stops for a while to detect the forehead temperature. The final detection result will be displayed on the lower right of the LCD screen.
3.When measuring the forehead is inconvenient, you can also lift the wrist clothing, and put the exposed wrist position close to the probe, 5-10 cm away from the probe (note: detect the position of the wrist with clothing insulation, detect the palm, the back of the hand and other parts without clothing insulation Resulting in low detection data).
4.The system automatically counts every test, and the system automatically counts the number of people detected and the number of alarms.
5.The compensation parameters are adjustable from 0-9 levels, level 0 is suitable for relatively low temperature environments, level 5 is suitable for relatively warm environments, and users can adjust it according to the use environment. (The smallest number, the greater the compensation)
Technical parameters
Response time/detection time | 0.1S/0.5S-1.5S |
Operating temperature/temperature measurement range | 10℃~35℃/30℃~42℃ |
Temperature measurement accuracy/repetition accuracy | ±0.5℃ (at room temperature)/±0.2℃ |
Temperature sensor module | MELEXIS (Belgium Melexis) |
Detection position/distance | Forehead, wrist/5-15CM |
Display | 7 inch color touch screen |
Power supply/power consumption | 100V-240V /15W |
Weight | 50kg |
Dimensions (mm) | 2202(H) x 820(W) x 550(D) |
Channel size (mm) | Channel size (mm) : |
Applicable places
Government departments: including courts, procuratorates, hospitals, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, public security bureaus, etc.
Public places: including schools, stadiums, entertainment venues (disco halls, dance halls, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.
