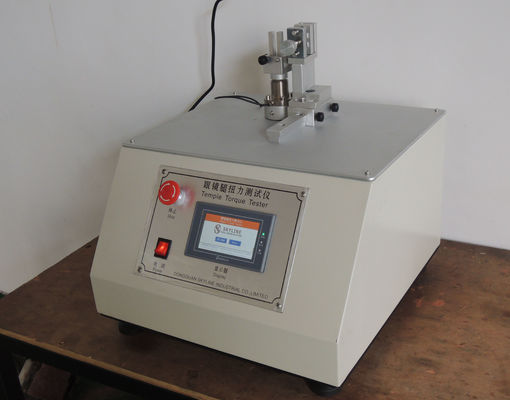

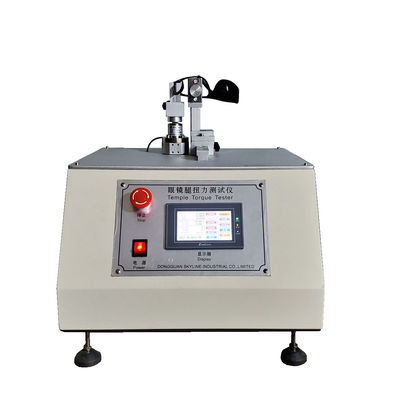

PLC Control Temple Torque Tester (US Voltage)

Introduction

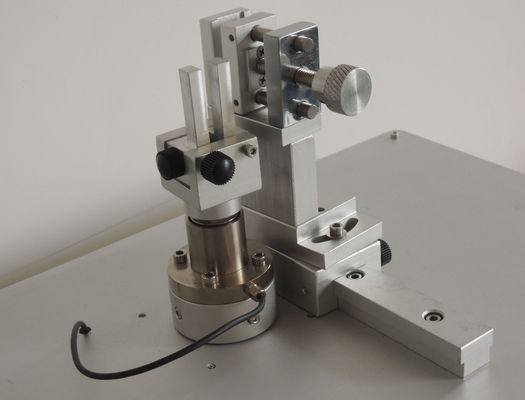

Testing purposes:Determining the spectacle spring hinge has a certain durability, can withstand the opening and closing angle under a certain torsion, and the durability of repeated opening and closing, the purpose is to detect the spring life change of the spring hinge.

Technical parameters

1. Control method: PLC

2. Test station: one station

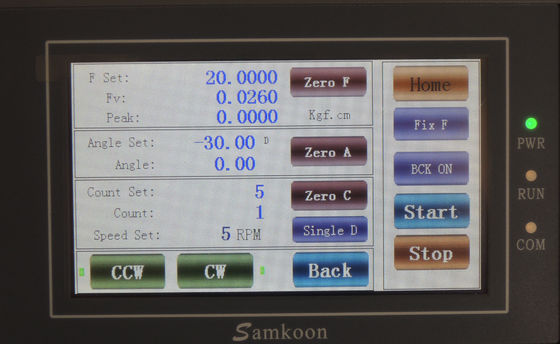

3. Count setting: 0-999, 999, 999, 99. Touch screen setting

4. Angle setting: 0-90 or -90-0 degrees (normally, the left leg is set to 0-90 degrees, the right leg is set to -90 degrees to 0. The direction of the instrument is clockwise

5. Speed can be set: 0-30 times / minute

6. Dimensions: 45 × 47 × 48CM (length × width × height)

7.Weight: 32 Kg

Instrument installation

1. Test environment: temperature 23 ± 2 ℃, relative humidity 60 ± 2%.

2. Place the instrument on a flat test platform.

3. Power connection: AC110V, 50Hz, 5A.
