Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL831 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Plywood case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1 unit/ month |
| SKYLINE: | Flame Spread Tester | Standards: | NFP 92-504 |
|---|---|---|---|
| Application: | Building Materials | Test Environment: | 25±5°C |
| Electrical Requirements: | 220V, 50HZ | Dimension: | 470mm（W）X 470mm（H）X 330mm（D） |
| High Light: | lab testing equipment,vertical flammability chamber |
||

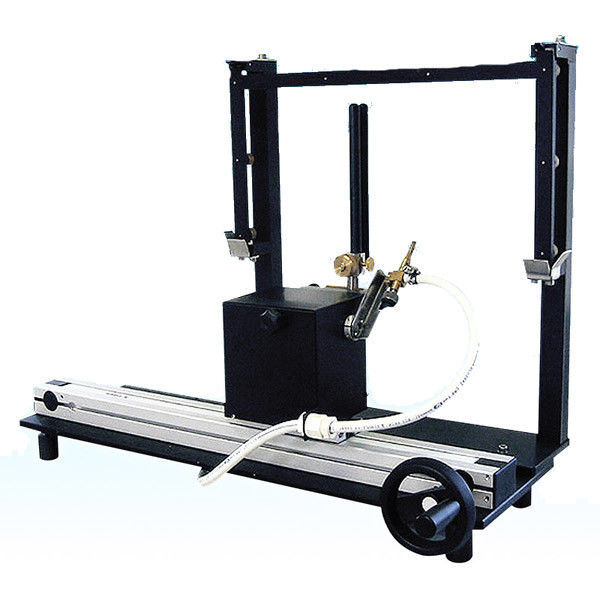

Product introduction
This test is intended to test a sample of a material under certain conditions to a heat source consisting of a gas igniter, and may trigger: sample fire and flame persistence test and flame spread and spread. The speed test is in accordance with the fire reaction performance test of French building materials and high-iron non-metallic materials.
Technical parameters
1. Applicable to French building materials and high-speed rail test standard NFP 92-504;
2. Using a standard burner, the sample is subjected to flame impact, and then the flame spread performance of the sample is observed;
3. U-shaped specimen holders with soft and hard materials at the same time;
4. The burner movement adopts a programmable controller, and the test time and the number of ignitions can be automatically controlled.
Dimension:470mm(W)X 470mm(H)X 330mm(D)
Weight:18kg
Installation requirements
Electrical requirements: 220V, 50HZ;
Gas source requirements: propane and air compressor gas
Test environment: 25±5°C
Installation method: fume hood placement
Contact Person: Kasey Xie
Tel: 18370826024
