Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Model Number: | SL-IT01 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoiated. |
Packaging Details: | plywood case |
Delivery Time: | 15 work days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 1 unit / month |
SKYLINE: | Infrared Thermometer Calibration Special Blackbody Furnace | Temperature Measurement Range: | 35-50C° Adjustable |
---|---|---|---|
Temperature Resolution: | 0.01℃ | Cavity Mouth Diameter: | Φ56mm |
Cavity Depth: | 150mm | Temperature Stability: | ±(0.1~0.2)℃/10min |
Temperature Uniformity: | ±0.1C° | Power Supply: | 220V AC 50HZ 100W |
High Light: | physical testing equipment,brake testing equipment |

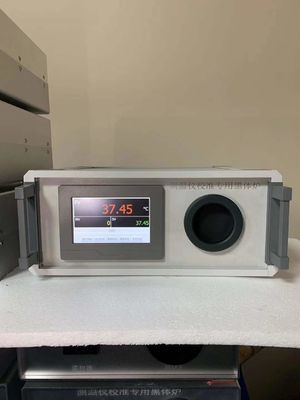

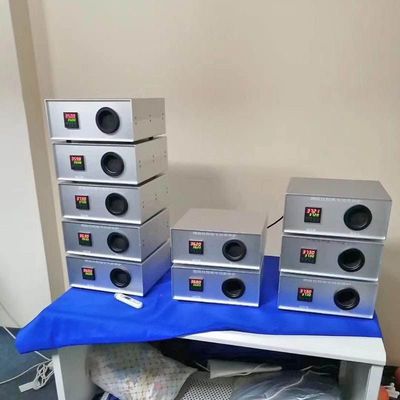

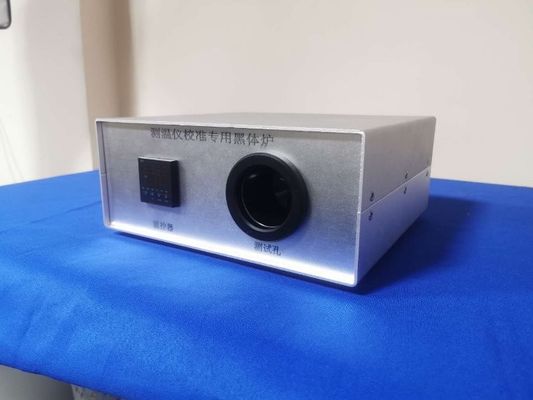

Infrared Thermometer Calibration Special Blackbody Furnace
Product description
The portable black body stove for infrared body temperature guns is independently developed by our company and is mainly used for the calibration of infrared ear thermometers and infrared forehead thermometers. It can also be used for the calibration of infrared body surface screeners.
Portable infrared body temperature gun black body furnace, through the company's self-developed temperature cycle system, coupled with the use of new materials developed by the company, the emissivity can reach more than 0.99, is the best ideal product for calibrating infrared ear thermometer and forehead thermometer .
Product features
1. Novel design, touch screen operation, easy operation.
2. Isothermal blackbody cavity, there is only one cavity mouth, the cavity mouth radiation is uniformly distributed with the spectrum, and the cavity mouth emissivity is above 0.99.
3. The automatic heating temperature control method is adopted, which is safe and reliable, the heating speed is fast, and the temperature stability is good.
4. Convenient operation, small size, light weight, easy to carry, not only suitable for laboratory calibration, but also for on-site calibration work.
5. Double row digital display of measured value and set value parameter setting and other new technology, high precision, high function, and strong anti-interference ability.
Technical parameters
Temperature measurement range | 35-50C° adjustable |
Operation | Push-button |
Temperature resolution | 0.01℃ |
Cavity mouth diameter | Φ56mm |
Cavity depth | 150mm |
Cavity mouth emissivity | ≥0.99 |
Temperature stability | ±(0.1~0.2)℃/10min |
Temperature uniformity | ±0.1C° |
Power supply | 220V AC 50HZ 100W |
Weight | About 3.0Kg |
Dimension | 125mm*305mm*280mm(L×W×H |
