Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-BST017 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Baby Stroller Handle Durability Tester | Number Of Samples: | 1 / Times |
|---|---|---|---|
| Loading Force Value: | 450N | Front And Rear Wheels Off The Ground: | 120mm+/-10mm Adjustable |
| Gas Source: | 7kgf/cm^2 Stable Air Supply | Volume (WxDxH): | 140x122x185cm |
| Weight (approx.): | ≈280Kg | Power Supply: | 1∮ AC 220V 50Hz 5A |
| Highlight: | physical testing equipment,brake testing equipment |
||

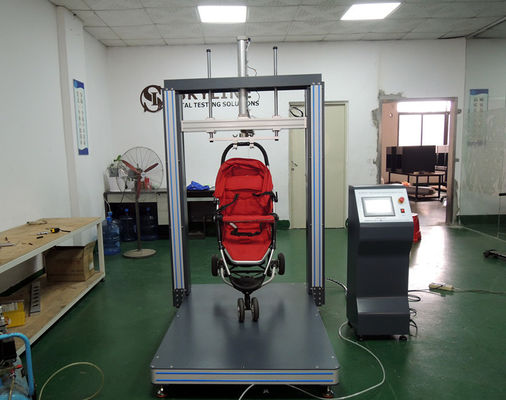

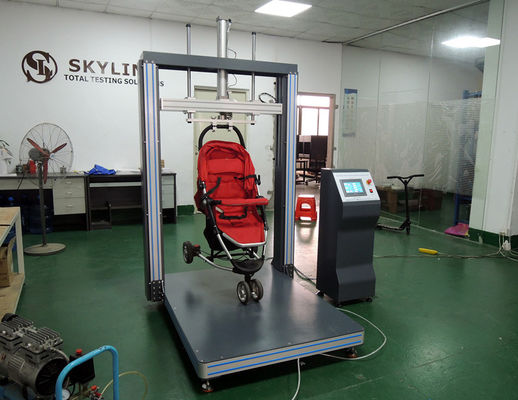

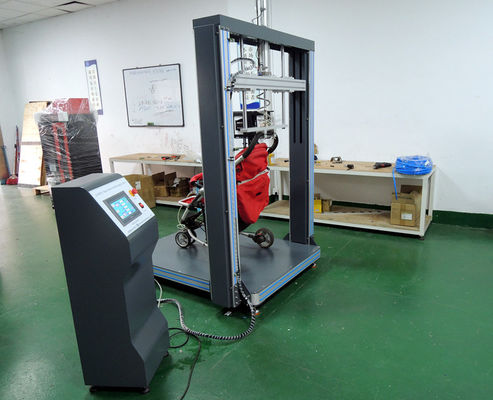

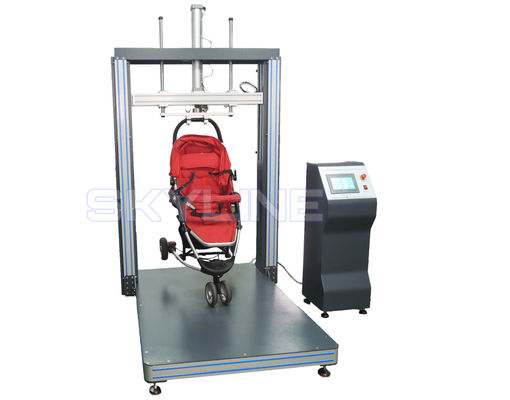

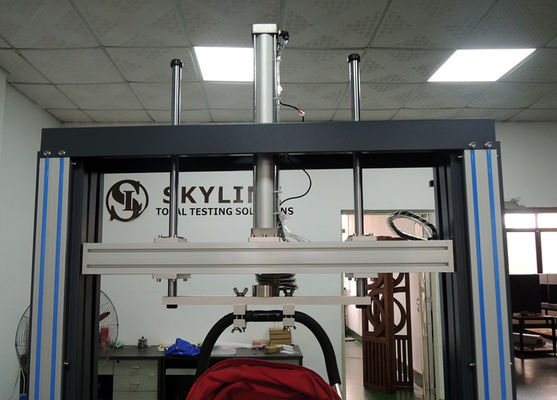

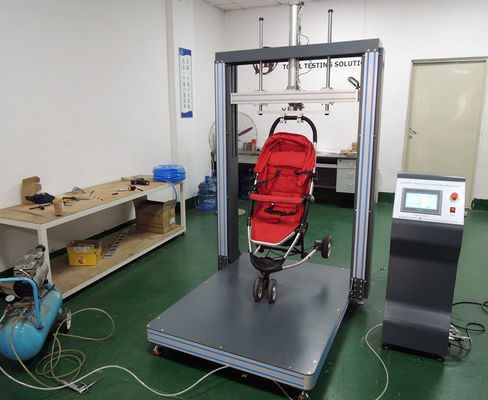

EN1888-2018 Baby Stroller Handle Durability Tester
Use
This tester is suitable for the durability test of the push-pull stroller when simulating over obstacles.
Principle
Put the model baby in the platform, when lifting: make the rear wheel of the platform 120mm +/- 10mm away from the area, when pressing down: make the front wheel of the platform 120mm +/- 10mm off the ground, at a speed of 15 ± 1 times / MIN After the continuous reciprocating test 10,000 times, visually inspect the car for damage.
According to the standard
This tester is made according to the requirements of section 8.10.6.2.2 of EN-1888-2012.
Specifications
| Sample | Stroller |
| Number of samples | 1 / times |
| Loading force value | 450N |
| Front and rear wheels off the ground | 120mm+/-10mm Adjustable |
| Volume (WxDxH) | Host :140x122x185cm |
| Weight (approx.) | ≈280Kg |
| Gas source | 7kgf/cm^2 Stable air supply |
| Power supply | 1∮ AC 220V 50Hz 5A |
Please review video of the Baby Stroller Handle Durability Tester operation as below link:
https://youtu.be/wl8pR4T82RQ
Baby Stroller Handle Durability Tester.pdf
