Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90°

Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90°

Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90°
Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90°
Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90°
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: SL-PL002
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Zig Zag Machine Writing Angle: 60°- 90°
Writing Plate Speed: Adjustable Collet Weight: 50+/-0.5 Grams
Marker Diameter: 35mm Max Power Supply: AC220V,50HZ
Packing Dimension: 80cm*66cm*66cm Gross Weight: 90kg
High Light:

physical testing equipment

,

brake testing equipment

Lab Testing Equipmen Zig Zag Writing Testing Machine



Product information

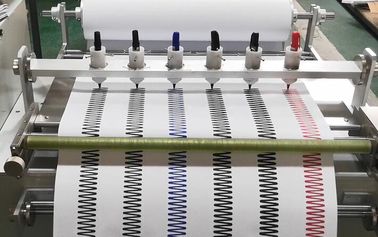

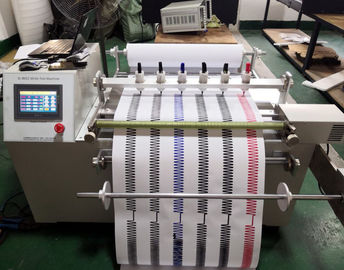

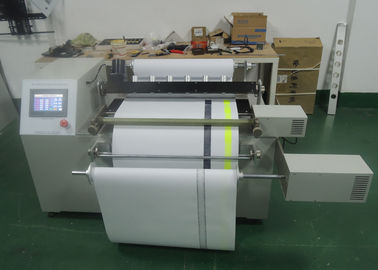

Load weight on the refill/pen,Make pen and writing paper face up to 60 and 90 tilt angle with a certain speed to write Z. Can test the refill, test bulk pen just replace the fixture can test 6 pcs pens one time, with the function of automatic withdraw the test paper.


Technical parameters

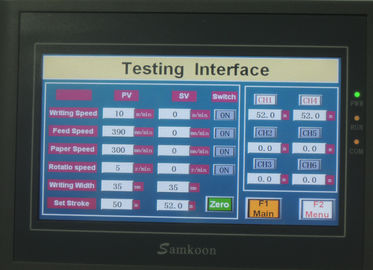

Paper movement Speed:adjustable 0-140 cm/min revolutions per minute
Writing Plate Speed: Adjustable
1m/min -10m/min
Writing Angle: 60°- 90°

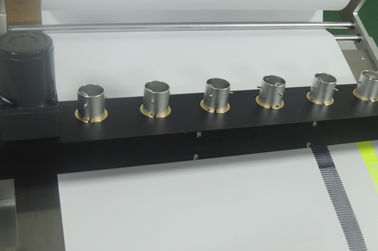

Collet weight :50+/-0.5 grams
Refill Rotation In ON Condition - Refill rotation at 1-3 rpm
Marker Diameter : 35mm Max
Zig Zag/Holder Bar speed :1.375 inches Wide (1cycle=2.75inches)
Sample Size 6 Nos
Motor:Servo motor with programmable
Test paper:two rolls
Power:AC220V,50HZ or 110V 60HZ

Zig Zag Writer Testing Machine.pdf
Lab Testing Equipment Zig Zag Writer Testing Machine With Writing Angle 60° To 90° 0
